MANUFACTURER: FANUC
DESCRIPTION: MDL PSM-26
PRODUCT TYPE INFO: ALPHA POWER SUPPLY MODULE
5 in stock
Ships Today
2 Year warranty
Part Number | A06B-6087-H126 |
Manufacturer | FANUC |
Type | Power Supplies |
Model # | A06B6087H126 |
Warranty | 2 Year |
Module | Power Supply |
Rated Input | 200-230 V 106 A 50 Hz |
Phase | 3 Phase |
Rated output | 283 to 325 V |
Output power | 29.8 kW |
Mounting | DIN Rail Mount |
Manual No. | B-65162 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed A06B-6087-H126 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this A06B-6087-H126 we also repair a wide range of other FANUC products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty A06B-6087-H126, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty A06B-6087-H126 for credit when ordering from MRO Electric

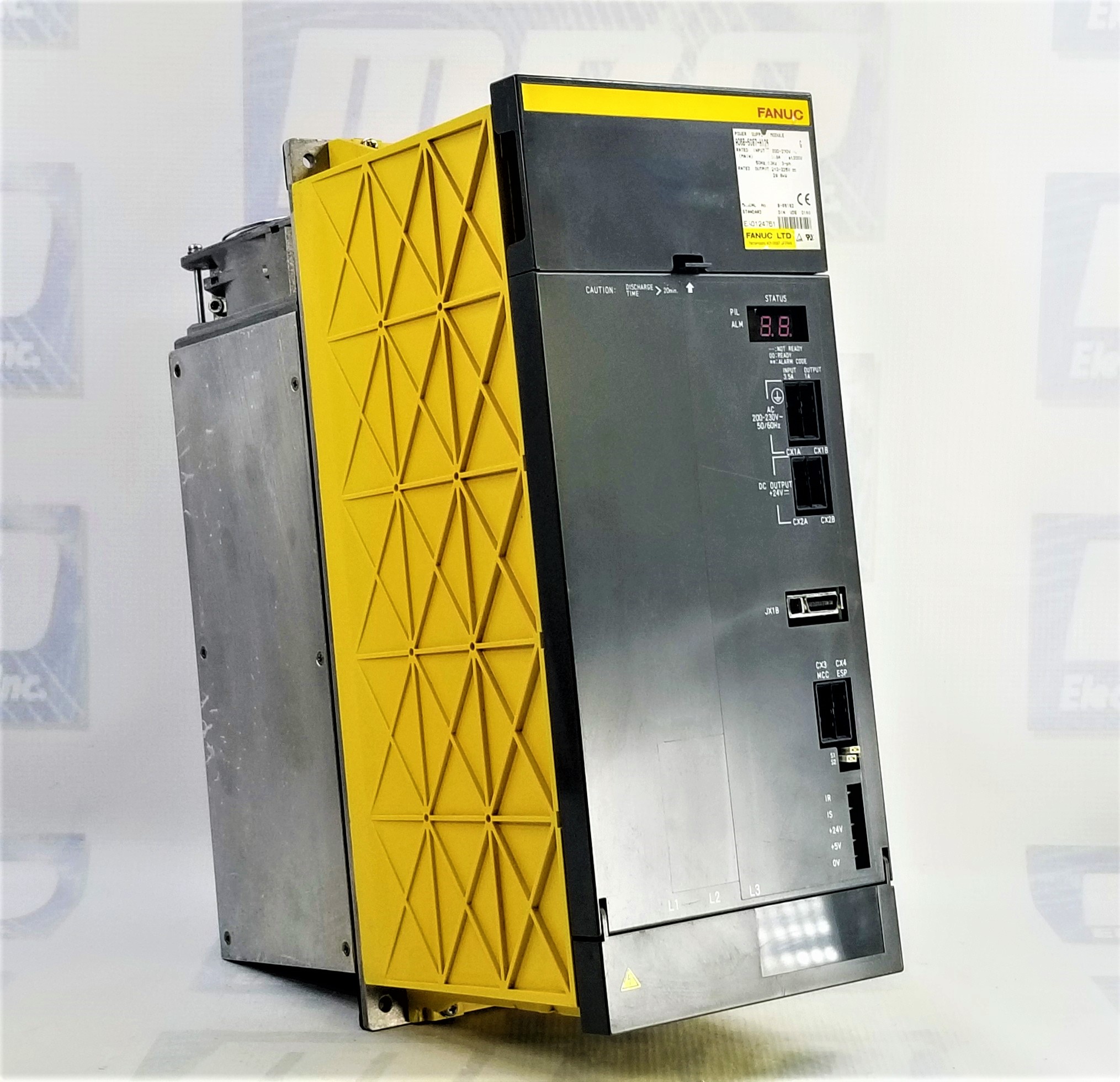

The A06B-6087-H126 is a 200V/230V Power Supply Module (PSM-26) that is designed to provide the main power supply. The module uses power regeneration that returns energy to the power supply during motor deceleration (regeneration). These products are manufactured in Japan and are designed for Commodity production, advanced machining, and CNC milling usage. They come with a 2-year warranty from MRO Electric. We also carry Power Supplies from other manufacturers such as Siemens and Control Techniques.
The following is the wiring diagram for the A06B-6087-H126. With the PSM-26, always install the circuit breakers, magnetic contactor, and AC reactor. To protect the equipment from lightning surge voltages, install a lightning surge protector across each pair of power lines and across each power line and the grounding line at the power inlet of the power magnetic cabinet. Always connect the control power supply cable to the CX1A.
This A06B-6087-H126 is designed to function well with a certain measured input voltage and output voltage which both work to facilitate a certain optimum output power. The Input voltage optimum for this module is 200-230 V, and the optimum functioning output voltage for this module is 283-325 V. The proper designation for the level of output power for this module is 29.8kW. This voltage level power supply module is also indicated by the symbol PSM-26. This PSM-26 is designated to optimally provide the main power supply. The module uses power regeneration that returns energy to the power supply during motor deceleration (regeneration). This is a wonderful feature that allows the unit to run more smoothly, more efficiently, and with a greater awareness for the need to conserve and utilize resources as efficiently as possible.
An important aspect of this product to pay attention to is the wiring diagram. With the PSM-26, always install the circuit breakers, magnetic contactor, and AC reactor. To protect the equipment from lightning surge voltages, install a lightning surge protector across each pair of power lines and across each power line and the grounding line at the power inlet of the power magnetic cabinet. Always connect the control power supply cable to the CX1A.
CNC is an abbreviation commonly used for products such as this. CNC stands for Computerized Numerical Control or Computer-supported numerical control. This Alpha power supply module is going to bring power and thus motion to the motors or other components with which it is connected. This A06B-6087-H126 product supply module proves to work most effectively and synchronously when used in conjunction with control systems such as Fanuc OMD Control System, OTD Control System, or 1 8iMB control system
As part of the automation series, this Fanuc manufactured model is delivered safely and quickly alongside our one-year warranty. This module weighs 21 pounds and is very excellently suited to a DIN Rail Mount as its mounting type. The Alpha series is the best of its kind on the market today. This product is durable, well equipped to handle performing its designated function, and masterfully designed and assembled to live up to the standard to which you need perform.
Check out the rest of our FANUC product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like A06B-6087-H126, take a look at more from our Power Supplies line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our A06B-6087-H126 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
