A06B-6087-H130

A06B-6087-H130

ALPHA POWER SUPPLY MODULE MDL PSM-30

5 remanufactured in stock
Ships Today

1 year warranty

Categories

Part NumberA06B-6087-H130
ManufacturerFANUC
SeriesAutomation
Weight23lbs
TypeCNC
Warranty1 year

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed A06B-6087-H130 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 12-month warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this A06B-6087-H130 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty A06B-6087-H130, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

This product weighs 23lbs. Want it shipped today?

  • Order within the next 5 hours and 32 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty A06B-6087-H130 for credit when ordering from MRO Electric

Additional Information

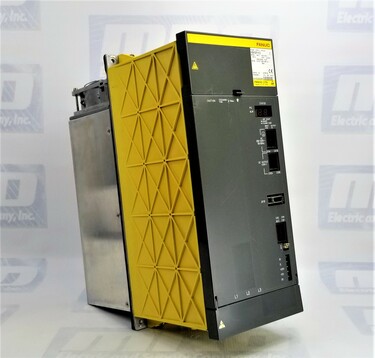

The FANUC A06B-6087-H130 is a 200V Power Supply Module (PSM-30).

Multiple servo amplifier modules and spindle amplifier modules can be connected to a single FANUC power supply provided the output capacity conditions are satisfied. Below lies the basic configuration when using the A06B-6087-H130:

A06B-6087-H130 Configuration
A06B-6087-H130 Wiring Diagram

Always install the circuit breakers, magnetic contactor, and AC reactor on your A06B-6087-H130. Be sure to use the correct breakers as specified in the FANUC manual. To protect the module from lightning surge voltages, install a lightning surge protector across each pair of power lines and across each power line and the grounding line at the power inlet of the magnetics cabinet. Always connect the control power supply cable to the CX1A. If it is connected to the CX1B, fuses inside the module could blow.  If you are using two power supply modules, the magnetic contactors and AC reactors cannot be shared – they each have ratings that matches each power supply module. However, the lightning surge protector can be shared. Make the wires used as short as possible if you do this.

Notes on Cleaning the A06B-6087-H130 Fan and Heat Sink:

  1. A dirty heat sink or fan results in reduced semiconductor cooling efficiency, which degrades reliability. Periodic cleaning is necessary.
  2. Using the compressed air for cleaning scatters the dust. A deposit of conductive dust on the amplifier for peripheral equipment will result in failure.
  3. To clean the heat sink, do so only after turning the power off and ensuring that the heat sink has cooled to room temperature. The heat sink becomes extremely hot, such that touching it during operation or immediately after power-off is likely to cause a burn. Be extremely careful when touching the heat sink.

Check out the rest of our FANUC product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like A06B-6087-H130, take a look at more from our Automation line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
