A06B-6096-H307

2-year Warranty

Same Day Shipping

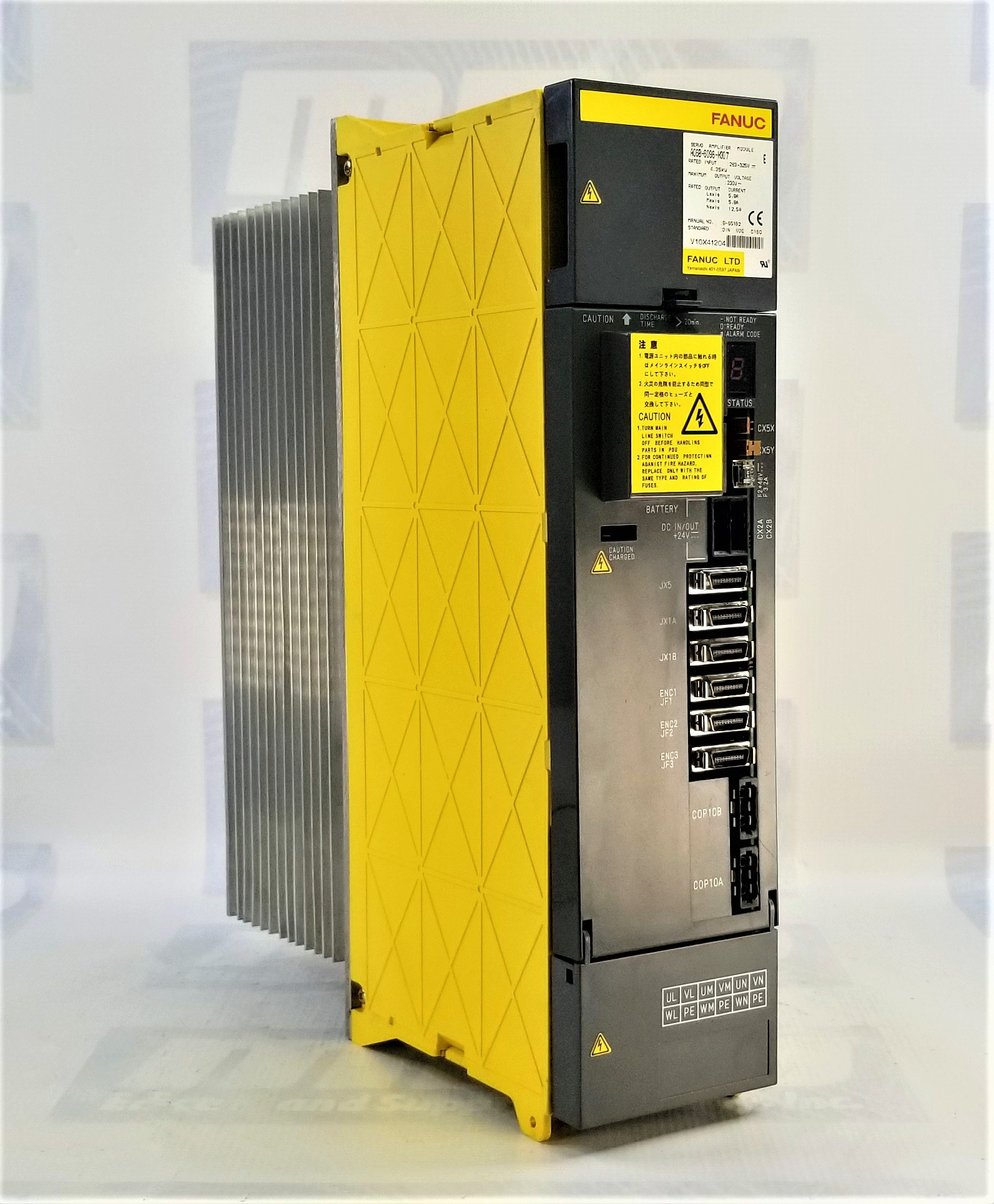

FANUC A06B-6096-H307

AUTOMATION 3 AXIS ALPHA SERVO MODULE MDL SVM3-20/20/40
5/5
1 rating

1 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberA06B-6096-H307
ManufacturerFANUC
TypeServo Amplifiers
Model #A06B6096H307
Warranty2 Year
RangeAlpha Series
CategoryServo amp
DescriptionSVM3-20/20/40
Rated input283-325 V
Power rating4.35 kW
Max output voltage230 V
Rated output currentL axis 5.9 A, M axis 5.9 A, N axis 12.5 A
Manual no.B-65162
Phase 3-phase

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed A06B-6096-H307 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this A06B-6096-H307 we also repair a wide range of other FANUC products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty A06B-6096-H307, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 14lbs

Want it shipped today?

  • Order within the next 6 hours and 8 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty A06B-6096-H307 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

FANUC A06B-6096-H307 Overview

FANUC A06B6096H307 Alpha Servo Module

The FANUC A06B6096H307 is a highly capable servo module designed for precision control in industrial applications. As part of the Alpha series, it offers advanced performance and reliability for demanding tasks. Specifically, the A06B6096H307 model, known as the SVM3-20/20/40, is engineered to provide precise control over three axes, making it suitable for a wide range of machining and automation tasks.

Description: Advanced Servo Amplification

As a servo amplifier, the FANUC A06B6096H307 excels in providing precise and responsive control over motor movements. With its SVM3-20/20/40 configuration, it is capable of handling complex motion control requirements across three axes. This versatility makes it suitable for applications such as CNC machining, robotics, and automated assembly lines where precise positioning and movement control are crucial.

Rated Input and Power Rating

The FANUC A06B6096H307 operates within a rated input voltage range of 283-325 volts, making it compatible with standard industrial power supplies. With a power rating of 4.35 kW, it delivers robust performance, capable of driving motors with varying power requirements. This ensures efficient operation and precise control over machinery and equipment, contributing to overall productivity and quality in industrial processes.

Maximum Output Voltage and Rated Output Current

For each axis, the A06B6096H307 provides specific output capabilities. The maximum output voltage is 230 volts, ensuring sufficient power delivery to drive motors effectively. The rated output current varies for each axis: 5.9 A for the L and M axes, and 12.5 A for the N axis. These output specifications enable the servo module to effectively control motor movements across different axes with varying load requirements, ensuring smooth and precise operation in diverse applications.

Phase and Manual Reference

Operating on a 3-phase power supply, the FANUC A06B6096H307 is compatible with standard industrial electrical systems, ensuring easy integration into existing setups. Additionally, for comprehensive setup and maintenance guidance, the servo module is accompanied by manual reference number B-65162. This manual provides detailed instructions for installation, configuration, troubleshooting, and maintenance, enabling users to optimize the performance and longevity of their equipment.

FAQ (Frequently Asked Questions)

What is the primary function of the FANUC A06B6096H307 Alpha Servo Module?

The A06B6096H307 is a servo amplifier designed to provide precise and responsive control over motor movements, particularly for CNC machining, robotics, and automation applications.

What is the rated input voltage and power rating of the A06B6096H307 servo module?

The servo module operates within a rated input voltage range of 283-325 volts and has a power rating of 4.35 kW, ensuring robust performance and efficient operation.

How many axes does the A06B6096H307 SVM3-20/20/40 model control?

The SVM3-20/20/40 configuration of the A06B6096H307 is capable of controlling movements across three axes, making it suitable for applications requiring multi-axis precision control.

What are the rated output current specifications for each axis of the A06B6096H307 servo module?

The A06B6096H307 provides a rated output current of 5.9 A for the L and M axes, and 12.5 A for the N axis, ensuring effective control over motors with varying load requirements.

Is there a manual available for the A06B6096H307 servo module?

Yes, the A06B6096H307 servo module is accompanied by manual reference number B-65162, which provides comprehensive instructions for installation, configuration, troubleshooting, and maintenance.

FANUC products are manufactured in Japan and are designed for Commodity production, advanced machining, and CNC milling usage. They come with a 2-year warranty from MRO Electric. We also carry Servo Amplifiers from other manufacturers such as Siemens and Control Techniques.
