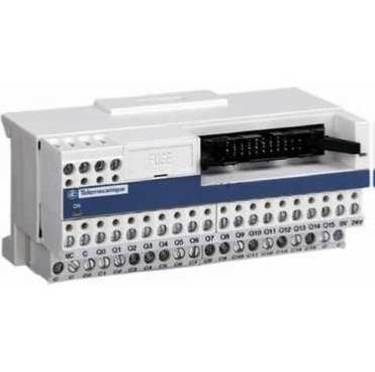

ABE7E16SPN20

ABE7E16SPN20

Connection Sub-Base Abe7 - For Twido Extension - 16 Outputs
Available

2 Year warranty

Categories

Part NumberABE7E16SPN20
ManufacturerSchneider Electric
SeriesModicon Communication
Model #ABE7E16SPN20
TypePLC
Warranty2 Year
Tightening torque0.6 N.m (withflat Ø 3.5 mm
Range of productAdvantys Telefast ABE7
Product or component typePassive discrete I/O sub-base
[Us] rated supply voltage24 V DC (sensor/controller side)
24 V DC (controller side)
Number of channels16
Number of terminal per channel2
Connector destinationTwido programmable controller
Supply voltage limits20.4...26.4 V DC (sensor/controller side) conforming to IEC 61131-2
19...30 V DC (controller side) conforming to IEC 61131-2
Discrete input number16
Discrete input logicSink
Discrete output voltage24 V
Discrete output voltage typeDC
Product compatibilityTWDDDI16DK
TWDDDI32DK
Status LED1 LED for power ON
Polarity distribution1 common/16 channels for input
Short circuit protection2 A internal fuse, 5 x 20 mm, fast blow (controller side)
Connector typeHE-10
Pin number20 pins
Fixing modeBy screws
By clips on 35 mm symmetrical DIN rail conforming to IEC 60715
Supply current<= 2 A
Switched current15 mA for input circuit
Voltage drop on power supply fuse0.3 V
[Ui] rated insulation voltage2000 V between terminals/mounting rails
Overvoltage categoryII conforming to IEC 60664-1

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ABE7E16SPN20 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ABE7E16SPN20 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ABE7E16SPN20, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 20 hours and 43 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ABE7E16SPN20 for credit when ordering from MRO Electric
