ABE7E16SRM20

Schneider Electric ABE7E16SRM20

ABE7E16SRM20

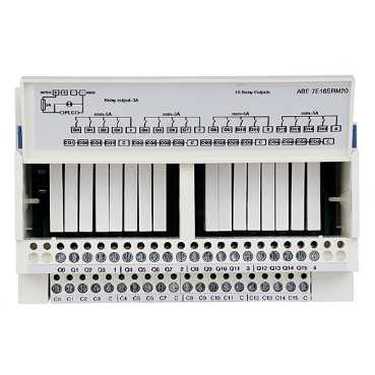

Connection Sub-Base Abe7 - For Twido Extension - 16 Relay Outputs
2 year warranty
Call (800) 691-8511 for pricing
Click for Quote

Testimonials

Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ABE7E16SRM20, take a look at more from our Modicon Communication line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.

Specifications

ManufacturerSchneider Electric
SeriesModicon Communication
Tightening torque0.6 N.m (withflat Ø 3.5 mm
Range of productAdvantys Telefast ABE7
Product or component typeDiscrete output sub-base
[Us] rated supply voltage24 V DC (sensor/controller side)
24 V DC (controller side)
Number of channels16
Number of terminal per channel2
Connector destinationTwido programmable controller
Supply voltage limits19...30 V DC conforming to IEC 61131-2 (sensor/controller side)
19...30 V DC conforming to IEC 61131-2 (controller side)
Discrete output number16 relay output(s), 3000 mA
Discrete output voltage5...30 V DC relay output(s)
24 V DC solid state output(s)
110...250 V AC relay output(s)
Discrete output function1 NO
Product compatibilityTWDDDO16TK
TWDDDO32TK
Status LED1 LED for power ON
Polarity distribution1 common/4 channels for relay output
Short circuit protection2 A internal fuse, 5 x 20 mm, fast blow (controller side)
Connector typeHE-10
Pin number20
Fixing modeBy screws
By clips on 35 mm symmetrical DIN rail conforming to IEC 60715
Supply current<= 2 A
Current per channel0.009 A relay output(s)
Switched current3000 mA for relay output
Current per output common5 A relay output
Voltage drop on power supply fuse0.3 V
Voltage state 0 guaranteed2 V relay output(s) (sensor/controller side)
Voltage state1 guaranteed16.8 V relay output(s)
Electrical durability500000 cycles, maximum switching current: 500 mA DC-13 relay output(s) (preactuator side)
500000 cycles, maximum switching current: 400 mA AC-15 relay output(s) (preactuator side)
500000 cycles, maximum switching current: 3000 mA DC-12 relay output(s) (preactuator side)
500000 cycles, maximum switching current: 2000 mA AC-12 relay output(s) (preactuator side)
Minimum switching current100 mA relay output(s)
Response time<= 5 ms from state 0 to 1 relay output(s)
<= 2.5 ms from state 1 to 0 relay output(s)
[Uimp] rated impulse withstand voltage6 kV relay output(s)
Switching frequency20 Hz relay
Mechanical durability20000000 cycles at 20 °C
[Ui] rated insulation voltage300 V between coil circuit/contact circuits conforming to IEC 60947-1
2000 V between terminals/mounting rails
Overvoltage categoryII conforming to IEC 60664-1
