|Tightening torque||0.6 N.m (withflat Ã˜ 3.5 mm|

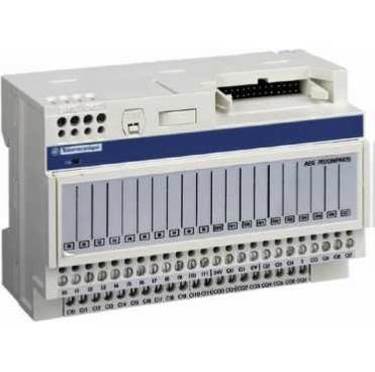

|Range of product||Advantys Telefast ABE7|
|Product or component type||Passive discrete I/O sub-base|
|[Us] rated supply volt-||24 V DC (sensor/controller side)|
|age||24 V DC (controller side)|
|Number of channels||16|
|Number of terminal per channel||2|
|Connector destination||Twido programmable controller|
|Supply voltage limits||20.4...28.8 V DC (sensor/controller side) conforming to IEC 61131-2|
|19...30 V DC (controller side) conforming to IEC 61131-2|
|Discrete output number||16|
|Discrete output logic||Source|
|Discrete output voltage||24 V|
|Discrete output voltage type||DC|
|Status LED||1 LED for power ON|
|Polarity distribution||1 common/16 channels for output|
|Short circuit protection||2 A internal fuse, 5 x 20 mm, fast blow (controller side)|
|Pin number||20 pins|
|Fixing mode||By screws|
|By clips on 35 mm symmetrical DIN rail conforming to IEC 60715|
|Supply current||<= 2 A|
|Switched current||100 mA for output circuit|
|Current per output common||1.6 A|
|Voltage drop on power supply fuse||0.3 V|
|[Ui] rated insulation voltage||2000 V between terminals/mounting rails|
|Overvoltage category||II conforming to IEC 60664-1|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ABE7E16SPN22 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ABE7E16SPN22 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ABE7E16SPN22, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty ABE7E16SPN22 for credit when ordering from MRO Electric
