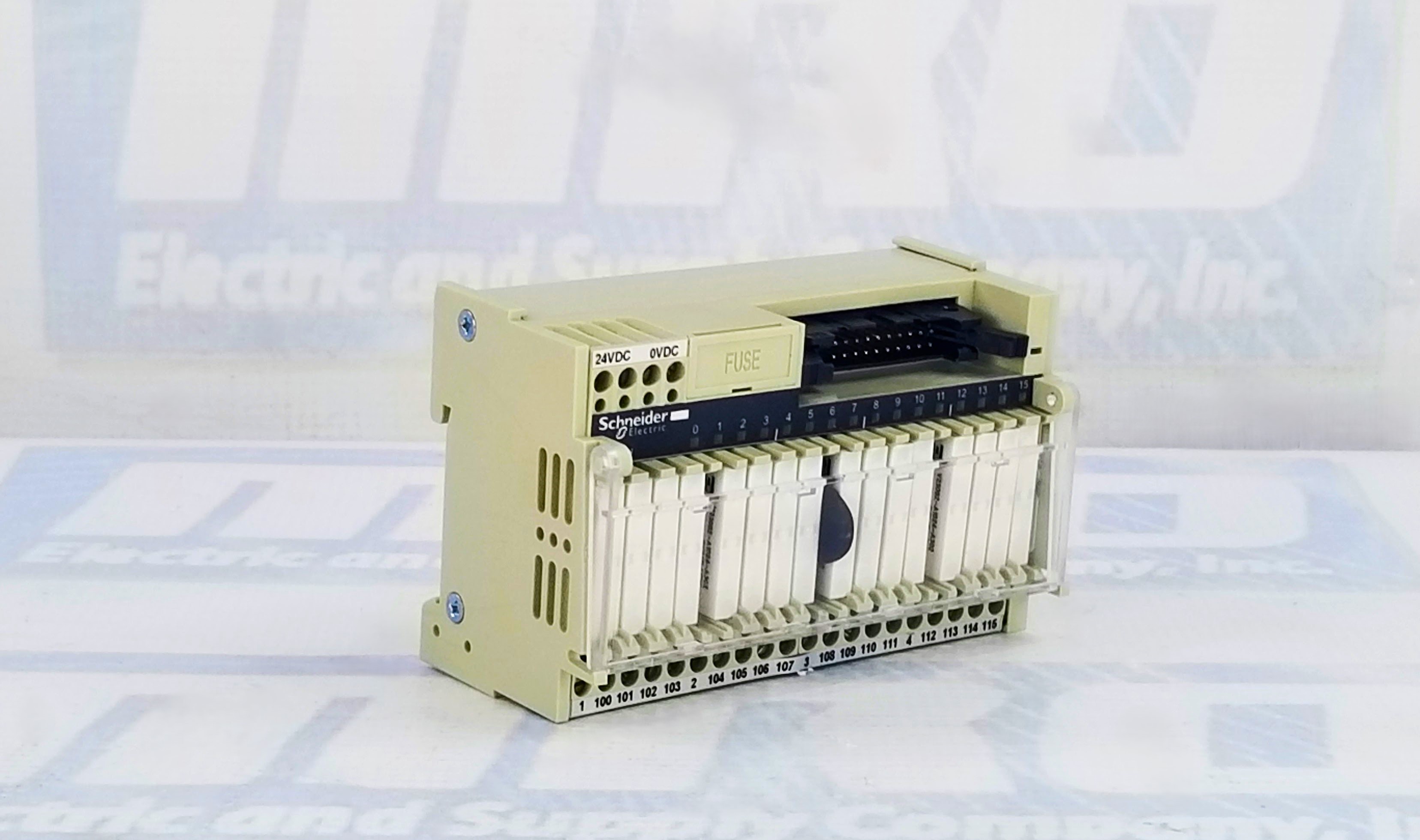

SUB-BASE - SOLDERED ELECTROMECHANICAL RELAYS ABE7 - 16 CHANNELS - RELAY 5 MM
| Part Number | ABE7R16T111 |
| Manufacturer | Schneider Electric |
| Type | Accessories |
| MRO Warranty | 2 Year |
| Tightening torque | 5.31 lbf.in (0.6 N.m) (withflat Ø 3.5 mm |
| Range of product | Advantys Telefast ABE7 |
| Product or component type | Sub-base with plug-in electromechanical relay |
| Sub-base type | Output sub-base |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Number of channels | 16 |
| Supply circuit type | DC |
| Product compatibility | ABR7S11 |
| Contacts type and composition | 1 NO |
| Status LED | 1 LED power ON |
| 1 LED per channel channel status | |
| Polarity distribution | Common distribution group of 4 |
| Short circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Mounting mode | By clips on 35 mm DIN rail |
| By screws on surface mount with kit | |
| Supply current | <= 1 A |
| Voltage drop on power supply fuse | 0.3 V |
| Current per output common | <= 5 A screw type terminals |
| [Ui] rated insulation voltage | 2000 V between terminals/mounting rails |
| 300 V between coil circuit/contact circuits conforming to IEC 60947-1 | |
| Current per module | <= 12 A |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Installation category | II conforming to IEC 60664-1 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ABE7R16T111 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year MRO warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ABE7R16T111 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ABE7R16T111, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ABE7R16T111 for credit when ordering from MRO Electric
The Schneider Electric ABE7R16T111 is a high-performance output sub-base designed to enhance the efficiency and flexibility of industrial automation systems. As part of the Advantys Telefast ABE7 range, this sub-base provides fast, simple, and secure connections for your control equipment. With 16 channels, integrated relay sockets, and clear LED indicators, it offers reliable operation and quick maintenance for demanding industrial environments. Backed by a 2-year MRO warranty, it's the dependable choice for automation professionals seeking long-lasting quality and easy integration.
Engineered for precision, the ABE7R16T111 is a sub-base with plug-in electromechanical relays, delivering dependable output control for PLC systems. It operates from a DC supply (19–30 V) and is fully compliant with IEC 61131-2, ensuring stable, efficient performance. Each channel features 1 NO contact, providing transparent, consistent switching, while integrated LED indicators display power and channel status for at-a-glance monitoring.
The module's common distribution group of 4 simplifies wiring and optimizes current flow across the outputs. With built-in short circuit protection—including a 1 A internal fast-blow fuse—the ABE7R16T111 ensures enhanced equipment safety and reduced downtime.
Built with durability and convenience in mind, this Schneider Electric sub-base is designed for DIN rail or surface mounting, allowing installation flexibility. Its screw-type terminal connections offer secure, vibration-resistant contact, ideal for harsh industrial settings. With a tightening torque of 5.31 lbf. in (0.6 N.m) and a voltage drop of only 0.3 V across the power fuse, the ABE7R16T111 maintains optimal efficiency under continuous load.
Rated for up to 12 A per module and 5 A per output common, this sub-base offers excellent current-handling capability. It also features an impressive rated insulation voltage of 2000 V between terminals and mounting rails, and 300 V between coil and contact circuits, conforming to IEC 60947-1 standards. Designed for installation category II, it withstands impulse voltages up to 2.5 kV, ensuring robust electrical protection and long-term reliability.
The ABE7R16T111 is fully compatible with ABR7S11 plug-in relays, offering seamless integration into existing Schneider Electric systems. Its modular design simplifies assembly, reduces wiring errors, and minimizes setup time—making it perfect for maintenance teams and automation engineers seeking efficiency and safety.
This product is available immediately and includes free shipping, so you can get your automation system up and running without delay.
What is the Schneider Electric ABE7R16T111 used for?
It's a 16-channel output sub-base designed to connect PLCs to field devices, providing organized relay outputs and LED status feedback.
What voltage does the ABE7R16T111 operate on?
This sub-base operates at 19–30 V DC and complies with IEC 61131-2 for industrial automation.
What type of relays are supported?
It's designed for plug-in electromechanical relays, offering reliable and easily replaceable switching components.
Is it compatible with other Schneider components?
Yes, it's fully compatible with ABR7S11 relays and integrates seamlessly with Schneider Electric's Advantys system.
How many channels does it have?
The unit supports 16 output channels, each with a 1 NO contact configuration.
What kind of protection does it include?
It features an internal 1 A fast-blow fuse to protect against short circuits and ensure operational safety.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year MRO warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
