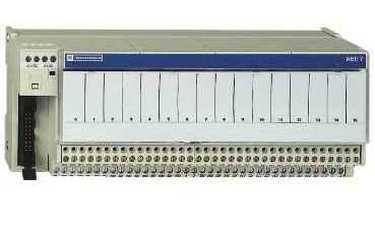

Schneider Electric ABE7R16S210


Sub-Base - Soldered Electromechanical Relays Abe7 - 16 Channels - Relay 10 Mm
2 year warranty
Call (800) 691-8511 for pricing
Click for Quote


Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ABE7R16S210, take a look at more from our Modicon Communication line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.


ManufacturerSchneider Electric
SeriesModicon Communication
Tightening torque5.31 lbf.in (0.6 N.m) (withflat Ø 3.5 mm
Range of productAdvantys Telefast ABE7
Product or component typeElectromechanical output relay sub-base
[Us] rated supply voltage24 V DC (PLC end)
Number of channels16
Number of terminal per channel2
Terminal block typeRemovable
Polarity distributionVolt-free
Fixing modeBy clips on 35 mm symmetrical DIN rail
By screws on solid plate with fixing kit
Width8.11 in (206 mm)
Current per output common<= 10 A
Current per channel5 A (preactuator end)
Minimum switching current10 mA at >= 5 V
Drop-out voltage2.4 V at 68 °F (20 °C) (PLC end)
Switching frequency<= 10 Hz
<= 0.5 Hz
Threshold tripping voltage19.7 V at 104 °F (40 °C)
Drop-out current1 mA at 68 °F (20 °C)
Power dissipation per channel in W<= 0.36 W (PLC end)
Contacts type and composition1 NO(preactuator end)
Maximum switching voltage250 V AC 50/60 Hz conforming to IEC 60947-5-1
30 V DC conforming to IEC 60947-5-1
Electrical durability500000 cycles, maximum switching current: 1500 mA at 230 V AC-12 (preactuator end)
500000 cycles, maximum switching current: 1500 mA at 24 V DC-12 (preactuator end)
500000 cycles, maximum switching current: 600 mA at 24 V DC-13 10 ms (preactuator end)
500000 cycles, maximum switching current: 900 mA at 230 V AC-15 (preactuator end)
Electrical reliability1e-008
Operating time<= 10 ms between coil energisation and NO closing
<= 5 ms between coil de-energisation and NO opening
Contact bounce time<= 5 ms 1 NO
Operating rate in Hz10 Hz no load
0.5 Hz at Ie
Mechanical durability20000000 cycles
[Uimp] rated impulse withstand voltage2.5 kV conforming to IEC 60947-1
[Ui] rated insulation voltage2000 V
Installation categoryII conforming to IEC 60664-1
