Schneider Electric ATV32HU11N4

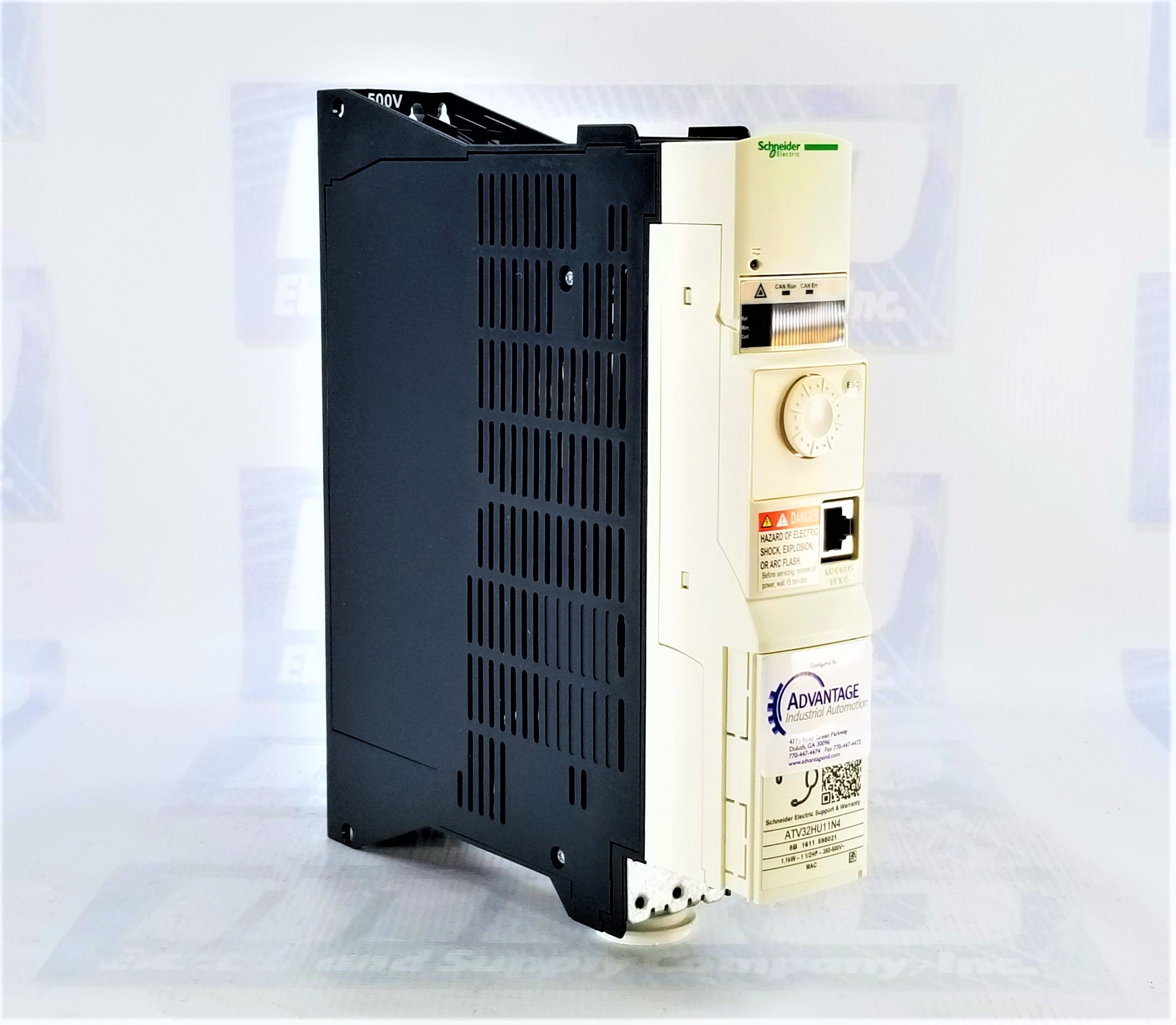

Schneider Electric ATV32HU11N4 – Reliable and Compact Variable Speed Drive for Industrial Control

The Schneider Electric ATV32HU11N4 is a high-performance variable-speed drive that delivers efficient motor control in demanding industrial applications. Part of the Altivar 32 series, this drive is built to manage asynchronous and synchronous motors with precision and flexibility. With a power rating of 1.1 kW (approximately 1.5 HP) and a three-phase voltage input of 380 to 500 V, it provides robust operation for a wide range of automated machinery. This model is available immediately from MRO Electric and Supply with free shipping and a 2-year warranty.

Design and Cooling System

Equipped with a heat sink for thermal regulation, the ATV32HU11N4 maintains optimal internal temperature levels, even during prolonged use. Its book-format design allows easy integration into control panels or equipment where space efficiency is a priority. Built for reliability, this drive includes an integrated Class C2 EMC filter to minimize electromagnetic interference, allowing it to function alongside other sensitive devices without disruption.

Power and Electrical Characteristics

The ATV32HU11N4 supports 323 to 550 V input voltages and operates across standard industrial frequencies of 50/60 Hz. It features a line current suited to varying voltage conditions and a nominal output current that ensures smooth, controlled motor performance. The drive enables precise motor speed adjustments with an output frequency range from 0.0005 to 599 Hz. It supports multiple motor control methods, including voltage/frequency ratio, flux vector control without a sensor, and synchronous motor profiles.

Input/Output Capabilities and Control Interface

For flexible system integration, the ATV32HU11N4 is equipped with multiple screw terminals, supporting a wide range of electrical connections. It includes several discrete and analog inputs and outputs, allowing users to customize control logic based on application needs. Local LED indicators signal the drive's voltage status, CANopen communication activity, faults, and errors, aiding maintenance teams with real-time diagnostics.

Durability and Environmental Resistance

The drive is built to endure harsh industrial conditions, featuring vibration resistance up to 1.5 mm peak-to-peak (13–200 Hz) and shock resistance of 15 gn for 11 ms. It operates reliably within ambient temperatures ranging from -10°C to 50°C (14°F to 122°F), making it suitable for a wide variety of installation environments. Its noise level is just 43 dB, providing quiet operation in noise-sensitive areas.

Certifications and Compliance

Meeting international safety and performance standards, the ATV32HU11N4 complies with EN/IEC 61800-5-1 and EN 55011 and carries certifications such as UL, CE, CSA, NOM 117, GOST, and others. This ensures legal and operational compliance in markets worldwide.

Ideal Applications

The ATV32HU11N4 is perfect for applications such as pumps, conveyors, fans, textile machines, and packaging systems. Its advanced motor control features, compact footprint, and robust environmental resistance make it a trusted solution for OEMs and systems integrators seeking reliable performance.

FAQs: Schneider Electric ATV32HU11N4 Variable Speed Drive

What is the motor power rating of the ATV32HU11N4?

This drive supports motors up to 1.1 kW or approximately 1.5 HP, suitable for mid-sized automation tasks.

What type of motor control does this drive offer?

It supports voltage/frequency ratio, sensorless flux vector, and synchronous motor control profiles.

What is the rated supply voltage?

The ATV32HU11N4 operates on a three-phase supply voltage of 380 to 500 V with 323 and 550 V limits.

What is the output frequency range of this drive?

It can deliver frequencies from 0.0005 to 599 Hz, providing smooth speed transitions.

Does it come with an EMC filter?

The drive includes an integrated Class C2 EMC filter to reduce electrical noise.

How is it cooled?

The unit is cooled via an efficient heat sink design that maintains thermal stability under continuous operation.

Is it easy to mount in compact spaces?

Its slim book-style construction is ideal for installations with limited panel space.

Can it handle harsh conditions?

Absolutely. It meets vibration and shock resistance requirements and operates across a broad temperature range.

Are there visual status indicators?

LED indicators show power status, communication, faults, and errors for quick troubleshooting.

What warranty and shipping are offered?

The ATV32HU11N4 includes a 2-year warranty and is available immediately with free shipping from MRO Electric and Supply.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
