Schneider Electric ATV32HU22N4

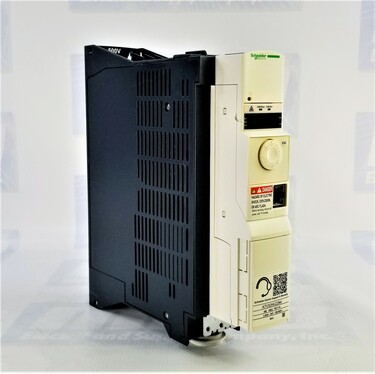

Schneider Electric ATV32HU22N4 – High-Efficiency Variable Speed Drive for Industrial Applications

The Schneider Electric ATV32HU22N4 is a high-performance variable speed drive from the Altivar 32 series, engineered for precision, flexibility, and reliability in demanding industrial environments. With a motor power rating of 2.2 kW (approximately 3 HP), this compact, three-phase drive is ideal for controlling asynchronous and synchronous motors in a wide range of automated machinery. It is immediately available for sale from MRO Electric and Supply, backed by a 2-year warranty and free shipping.

Robust Design with Efficient Heat Dissipation

Built with an integrated heat sink, the ATV32HU22N4 maintains thermal stability during continuous operation, extending its lifespan and ensuring reliable performance. Its slim, book-style form factor makes it suitable for control panels and machines where space is premium. An integrated Class C2 EMC filter reduces electromagnetic interference, enabling safe operation near sensitive equipment.

Power and Voltage Capabilities

This drive operates with a three-phase supply voltage between 380 and 500 V, with acceptable supply limits ranging from 323 to 550 V. It supports a supply frequency of 50/60 Hz and accommodates network fluctuations from 47.5 to 63 Hz. With a nominal motor output of 2.2 kW, the ATV32HU22N4 can drive mid-sized industrial motors with precision and efficiency.

Advanced Motor Control and Output Features

The ATV32HU22N4 offers versatile motor control profiles, including voltage/frequency ratio, sensorless flux vector control, and control for synchronous motors. It delivers a nominal output current suited for a wide range of motor loads, while its output frequency ranges from 0.0005 Hz to 599 Hz, ensuring fine-tuned speed control across applications. The drive's apparent power capacity supports energy-efficient operation without compromising performance.

Control Interface and I/O Flexibility

With multiple screw terminal connections, the ATV32HU22N4 is built for seamless integration into existing systems. It supports various discrete and analog inputs and outputs for programmable control and monitoring. LED indicators for voltage presence, CANopen communication, and fault detection help operators quickly diagnose and resolve issues.

Environmental Durability and Quiet Operation

The drive is engineered for harsh environments, with vibration resistance up to 1.5 mm peak-to-peak (13–200 Hz) and shock resistance of 15 gn for 11 ms. It performs reliably in ambient temperatures from -10°C to 50°C (14°F to 122°F) without derating. Its quiet operation, rated at just 43 dB, ensures suitability in settings where noise control is essential.

Certifications and Global Compliance

The ATV32HU22N4 complies with major international standards, including EN/IEC 61800-5-1 and EN 55011, and holds certifications such as UL, CSA, CE, C-Tick, GOST, and NOM 117. This makes it suitable for global industrial applications, including OEM machinery, manufacturing, and material handling systems.

FAQs: Schneider Electric ATV32HU22N4 Variable Speed Drive

What is the motor power rating of the ATV32HU22N4?

This drive supports motors rated at 2.2 kW or approximately 3 HP, suitable for mid-sized machinery.

What supply voltage is required for this drive?

The ATV32HU22N4 operates on a three-phase voltage from 380 to 500 V, with allowable limits between 323 and 550 V.

What motor control methods are supported?

It includes voltage/frequency ratio, sensorless flux vector control, and synchronous motor control profiles.

What is the output frequency range?

It can provide output frequencies from 0.0005 to 599 Hz for precision motor speed control.

Does the drive include an EMC filter?

Yes, an integrated Class C2 EMC filter helps reduce electrical noise and meets compliance standards.

What is the drive's cooling method?

It uses a heat sink for passive cooling, ensuring thermal efficiency without active fan components.

Is the ATV32HU22N4 suitable for tight spaces?

Yes, its compact, book-style design is ideal for installations where space is limited.

How resistant is it to environmental conditions?

It can withstand vibration and shock and operates within a wide temperature range for industrial settings.

Does it have visual fault indicators?

LED indicators provide instant feedback on power status, communication, and faults.

What warranty and shipping options are available?

MRO Electric and Supply offers a 2-year warranty and free shipping. The ATV32HU22N4 is in stock and ready to ship.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.

Contact Us Today For More Information About Schneider Electric Products
