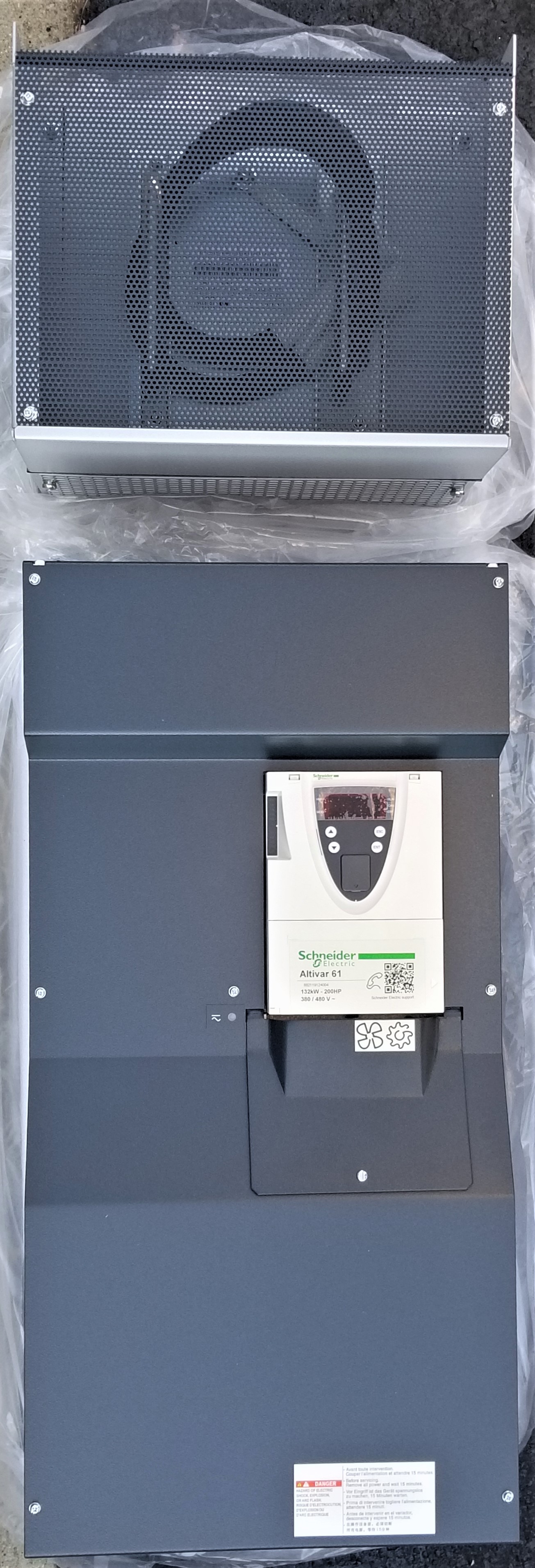

Schneider Electric ATV61HC13N4


1 rating

Select Condition


Request Quote


1 in stock


Request a formal quote

  • Ships Today
  • 2 Year Warranty
Part NumberATV61HC13N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Range of productAltivar 61
239 A for 380 V 3 phases 132 kW / 200 hp
2.5...8 kHz with derating factor
Voltage/frequency ratio - Energy Saving, quadratic U/f
Voltage/frequency ratio, 5 points
Voltage/frequency ratio, 2 points
Communication card for BACnet
Communication card for CC-Link
Controller inside programmable card
Communication card for DeviceNet
Communication card for EtherNet/IP
Communication card for Fipio
I/O extension card
Communication card for Interbus-S
Communication card for LonWorks
Communication card for METASYS N2
Communication card for Modbus Plus
Communication card for Modbus TCP
Communication card for Modbus/Uni-Telway
Multi-pump card
Communication card for Profibus DP
Communication card for Profibus DP V1
Product or component typeVariable speed drive
Product specific applicationPumping and ventilation machine
Component nameATV61
Motor power kW132 kW, 3 phases at 380...480 V
Motor power hp200 hp, 3 phases at 380...480 V
Power supply voltage380...480 V - 15...10 %
Supply number of phases3 phases
Line current224 A for 480 V 3 phases 132 kW / 200 hp
EMC filterClass C2 EMC filter integrated
Assembly styleWith heat sink
Apparent power157.3 kVA at 380 V 3 phases 132 kW / 200 hp
Maximum prospective line Isc35 kA for 3 phases
Maximum transient current310.8 A for 60 s, 3 phases
Nominal switching frequency2.5 kHz
Switching frequency2...8 kHz adjustable
Asynchronous motor controlFlux vector control without sensor, standard
Synchronous motor control profileVector control without sensor, standard
Communication port protocolCANopen
Type of polarizationNo impedance for Modbus
Option cardCommunication card for APOGEE FLN

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV61HC13N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HC13N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV61HC13N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 245lbs

Want it shipped today?

  • Order within the next 7 hours and 56 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV61HC13N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV61HC13N4 Overview

ATV61HC13N4 by Schneider Electric

Introduction: Schneider Electric presents the ATV61HC13N4, a robust AC Drive meticulously crafted to meet the diverse needs of industrial applications. As part of the Altivar 61 range, this drive exemplifies Schneider Electric's commitment to innovation and efficiency.

Type and Range of Product:

As an AC Drive, the ATV61HC13N4 offers precise motor control and energy-saving capabilities, making it ideal for various industrial processes. Its range of product offerings, tailored to specific applications, ensures optimal performance and reliability.

Motor Power and Voltage/Frequency Ratio:

This drive delivers exceptional power and efficiency with a 132 kW (200 hp) motor at 380-480 V. It features voltage/frequency ratio control, which offers energy-saving options and precise control over motor operation.

Communication and Control Options:

The ATV61HC13N4 has various communication cards, including Modbus, BACnet, CC-Link, and more, enabling seamless integration into various industrial networks. Its built-in programmable controller offers flexibility and customization options for specific applications.

EMC Filter and Assembly Style:

Integrated with a Class C2 EMC filter, this drive ensures compliance with stringent electromagnetic compatibility standards, minimizing interference and ensuring reliable operation. Its heat sink assembly style provides efficient heat dissipation for a prolonged device lifespan.

Apparent Power and Switching Frequency:

Operating at an evident power of 157.3 kVA and a nominal switching frequency of 2.5 kHz, the ATV61HC13N4 delivers consistent and reliable performance in demanding industrial environments. An adjustable switching frequency ranging from 2 to 8 kHz offers flexibility to adapt to varying load conditions.

Motor Control Profile and Communication Protocols:

This drive ensures precise and efficient motor operation by featuring flux vector control for asynchronous motor control and vector control for synchronous motors. Support for communication port protocols such as CANopen enables seamless communication and control integration.

Option Cards and Versatility:

The ATV61HC13N4 offers versatility with the option to install additional communication cards, including APOGEE FLN, expanding its capabilities and compatibility with different systems and protocols.

Frequently Asked Questions about the Schneider Electric ATV61HC13N4 AC Drive

Q: What is the primary function of the Schneider Electric ATV61HC13N4 AC Drive? A: The ATV61HC13N4 AC Drive is designed to control the speed and torque of electric motors in industrial applications, offering precise motor control and energy-saving capabilities.

Q: What is the motor power rating of the ATV61HC13N4 AC Drive? A: The AC Drive has a motor power rating of 132 kW (200 hp) at 380-480 V, making it suitable for driving a wide range of industrial machinery and equipment.

Q: What communication options are available with the ATV61HC13N4 AC Drive? A: The AC Drive supports a variety of communication cards, including Modbus, BACnet, CC-Link, and more, enabling seamless integration into different industrial networks and protocols.

Q: Does the ATV61HC13N4 AC Drive come with an integrated EMC filter? A: The AC Drive features a Class C2 EMC filter integrated into its design, ensuring compliance with electromagnetic compatibility standards and minimizing interference.

Q: What motor control profiles are supported by the ATV61HC13N4 AC Drive? A: The AC Drive supports flux vector control for asynchronous motor control and vector control for synchronous motors, offering precise and efficient motor operation.

Q: Can additional option cards be installed in the ATV61HC13N4 AC Drive? A: Yes, the AC Drive offers versatility when installing additional communication cards, such as APOGEE FLN, expanding its capabilities and compatibility with different systems and protocols.

Q: What is the switching frequency range of the ATV61HC13N4 AC Drive? A: The AC Drive has a nominal switching frequency of 2.5 kHz, with an adjustable range of 2 to 8 kHz, allowing flexibility to adapt to varying load conditions.

Q: What is the assembly style of the ATV61HC13N4 AC Drive? A: The AC Drive features an assembly style with a heat sink, providing efficient heat dissipation for prolonged device lifespan and reliable operation in demanding industrial environments.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
