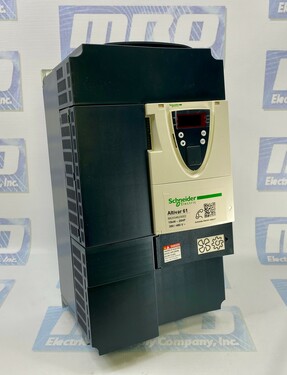

ATV61HD15N4

ATV61HD15N4

Rated 5/5 on 3 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: ATV61 15 kW 20HP 480V 3 phases EMC IP20 with graphic term

PRODUCT TYPE INFO: Altivar 61

4 in stock

2 Year warranty

Categories

Part NumberATV61HD15N4
ManufacturerSchneider Electric
SeriesAltivar 61
Model #ATV61HD15N4
TypeAC Drives
Warranty2 Year
Motor power kW15 kW, 3 phase 380...480 V
Phases3 Phases
Horsepower20 hp, 3 phase 380...480 V
Line current39 A 480 V 3 phase 15 kW / 20 hp 48 A 380 V 3 phase 15 kW / 20 hp
AssemblyWith heat sink
EMC FilterLevel 3
Switching frequency1...16 kHz adjustable 12...16 kHz with derating factor
ApplicationPumping and ventilation machine
Product destinationSynchronous motors Asynchronous motors
Power supply voltage limits323…528 V
Power supply frequency50...60 Hz - 5...5 %
Braking torque<= 125 % with braking resistor 30 % without braking resistor

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV61HD15N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV61HD15N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV61HD15N4, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 27lbs

Want it shipped tomorrow?

  • Order within the next 21 hours and 5 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV61HD15N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Schneider Electric ATV61HD15N4 Overview

The Altivar 61 variable speed drive unit ATV61HD15N4 is manufactured by Schneider Electric for pumping and ventilation. It is a three-phase drive with a supply voltage of 380…480 V 50/60 Hz. It is an IP 20 drive and has an integrated category C3 EMC filter. The dimensions of this drive module are 230 x 400 x 213.

Features

Made for industrial applications, the Altivar variable speed drive ATV61HD15N4 is engineered to help reduce operating costs.  It does this by getting the most from energy consumption. It also increases the performance of manufacturing equipment. An environmentally friendly unit, the Altivar ATV61 drive gives a 70 % energy reduction when used for ventilation applications and a 50 % reduction in energy consumption for pumping applications. It also reduces fluid losses in distribution networks. Which environmental standards does this unit conform to? The Schneider Electric ATV drive conforms to ISO 14040 which tracts the product’s impact on the environment, and it meets environmental directives RoHS, REACH, WEEE, and international equipment standards IEC/EN 61800-2 and IEC/EN 61800-5-1.

Advantages

If the drive is used in a variety of harsh environments and has many modular option solutions that help adapt to electrical installations and control systems. The Altivar drive line offers many areas of protection. It offers overload and overcurrent protection in continuous operation. Skip frequency function offers another protection for machine/ mechanical with output phase rotation. It has multiple faults and configurable alarms to protect management.

To help better application use, the Altivar drive offers many logic and analog inputs and outputs. These analog inputs and outputs can also be expanded. How can you expand these functions? You can expand these features through the use of I/O expansion cards. The features that are standard include Modbus and CAN open protocols. These protocols help to improve the performance of your control system. The multi-pump cards inside have their own I/O which helps them to perform management functions on the drive I/O and manage the I/O of the expansion cards. The cards can use speed, torque, and current, for example, from the drive parameters. The ATV can only use two option cards at once.

How to use an ATV61HD15N4

After you have inspected your Schneider Electric module, check the line voltage to ensure it is within the drive range. Make sure the drive is not being installed near heating elements and make sure there is room for ventilation space around the drive. The front of the drive should have 10 mm of free space. The next step is to mount the Altivar drive in a vertical position ± 10°. Then you are ready to install option modules, both internal and external.  Now you are ready to wire the drive to your system. Make sure the connections match the voltage when connecting the motor. Make sure the power is off and then connect the line drive. Connect the control and then the speed reference.

The Schneider Electric ATV61HD15N4 variable speed drive comes with a two-year warranty.

Product Description

The ATV61HD15N4 is a ATV61 15 kW 20HP 480V 3 phases EMC IP20 with graph... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the altivar-61 line come with a 2 year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
