MANUFACTURER: Schneider Electric

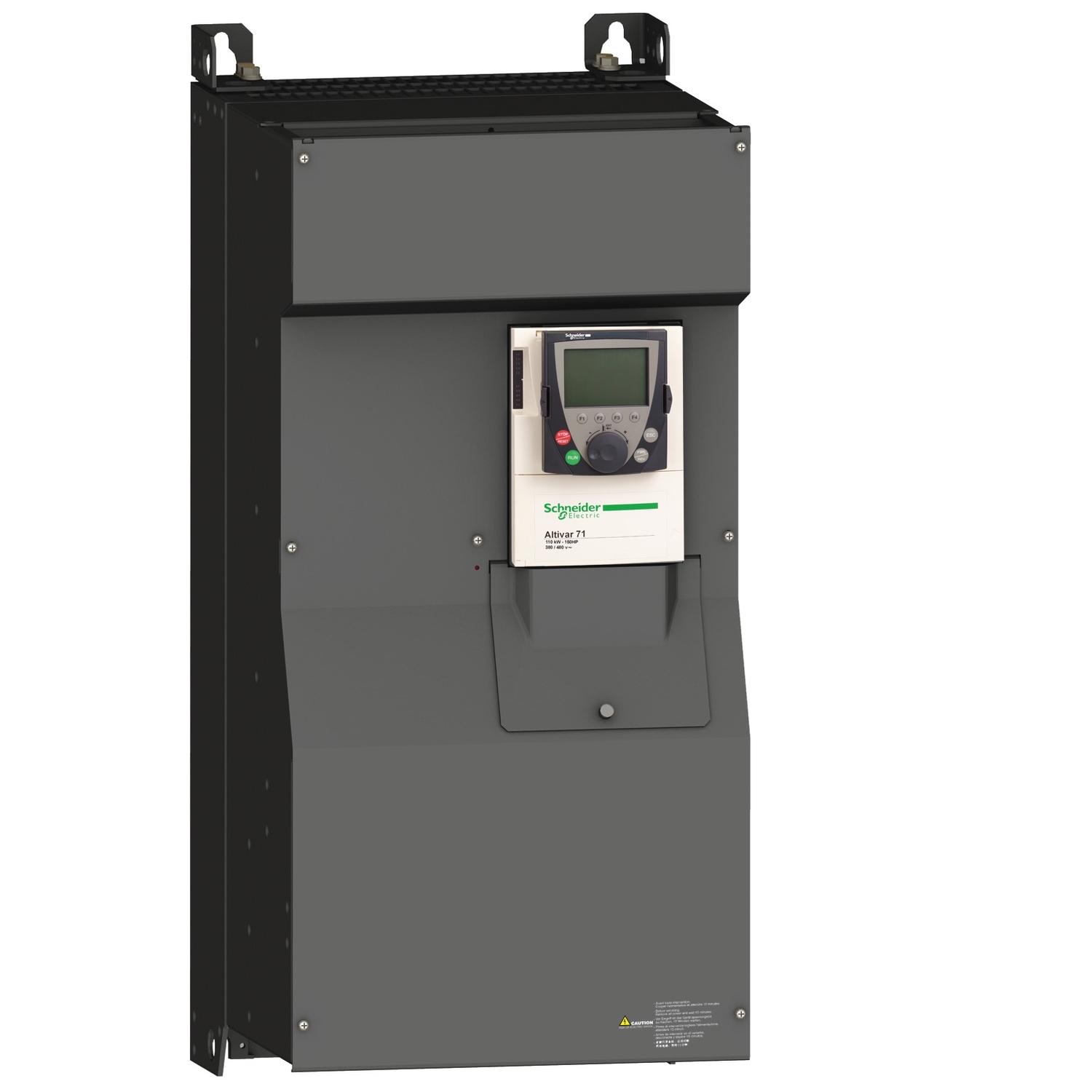

DESCRIPTION: ATV71 Variable Speed Drive 132 kW 200 HP 480 Volt EMC Filter
PRODUCT TYPE INFO: Altivar 71
|Range of product||Altivar 71|
|200 m unshielded cable|
|239 A for 380 V 3 phases 132 kW / 200 hp|
|259 A at 2.5 kHz 460 V 3 phases 132 kW / 200 hp|
|427 A for 2 s 3 phases 132 kW / 200 hp|
|2.5...8 kHz with derating factor|
|Sensorless flux vector control (SFVC) (voltage or current vector)|
|Flux vector control (FVC) with sensor (current vector)|
|ENA (Energy adaptation) system for unbalanced loads|
|Product or component type||Variable speed drive|
|Product specific application||Complex, high-power machines|
|Motor power kW||132 kW, 3 phases at 380...480 V|
|Motor power hp||200 hp, 3 phases at 380...480 V|
|Maximum motor cable length||100 m shielded cable|
|Power supply voltage||380...480 V - 15...10 %|
|Network number of phases||3 phases|
|Line current||192 A for 480 V 3 phases 132 kW / 200 hp|
|Assembly style||With heat sink|
|Apparent power||157.3 kVA at 380 V 3 phases 132 kW / 200 hp|
|Prospective line Isc||35 kA for 3 phases|
|Nominal output current||259 A at 2.5 kHz 380 V 3 phases 132 kW / 200 hp|
|Maximum transient current||388 A for 60 s 3 phases 132 kW / 200 hp|
|Output frequency||0.1…500 Hz|
|Nominal switching frequency||2.5 kHz|
|Switching frequency||2.5...8 kHz adjustable|
|Asynchronous motor control profile||Voltage/frequency ratio (2 or 5 points)|
|Type of polarization||No impedance for Modbus|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV71HC13N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV71HC13N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV71HC13N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ATV71HC13N4 for credit when ordering from MRO Electric
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at firstname.lastname@example.org, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ATV71HC13N4, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ATV71HC13N4 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
