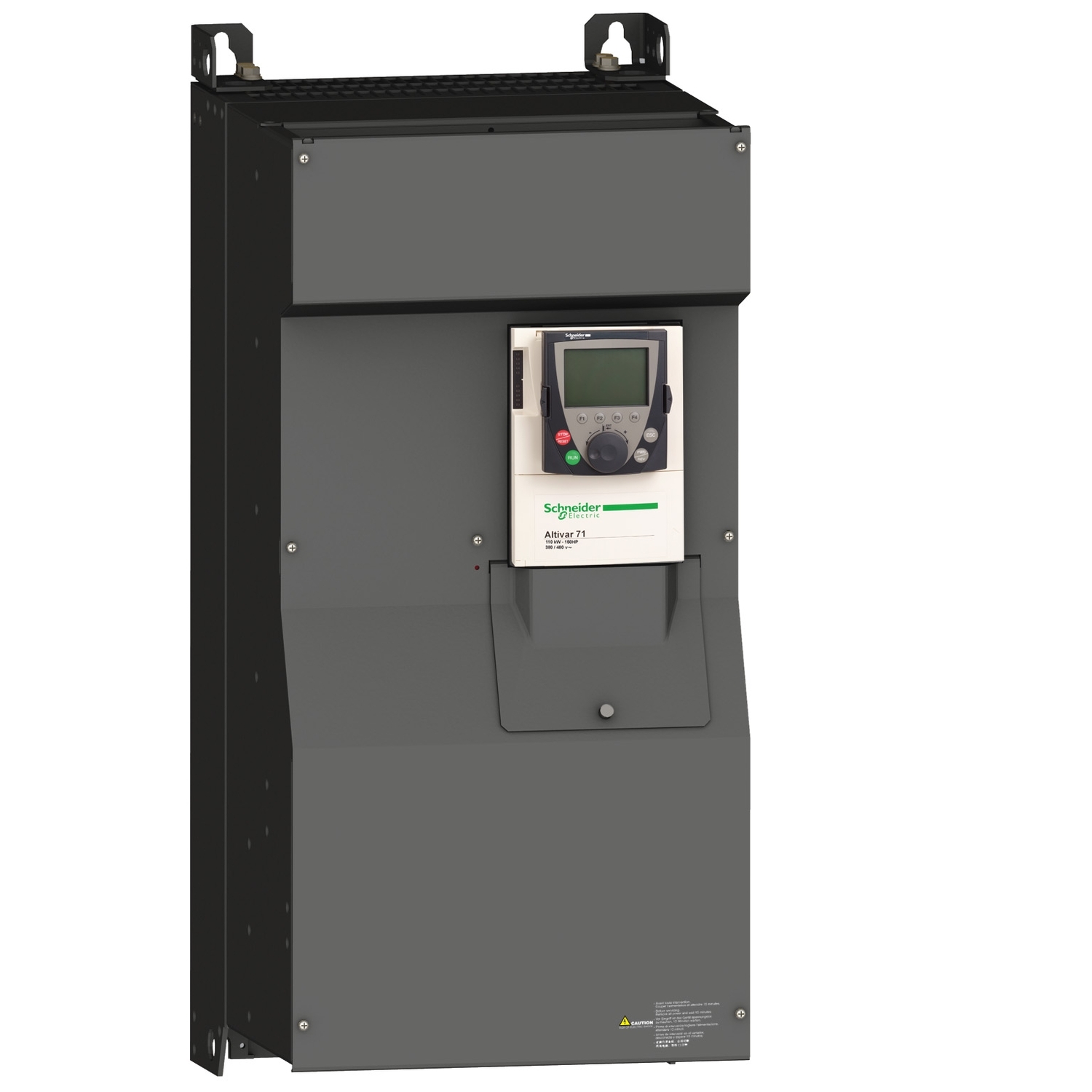

ATV71HC16N4

ATV71HC16N4

Rated 4/5 on 1 review

Rate this product


MANUFACTURER: Schneider Electric
DESCRIPTION: Variable speed drive ATV71 - 160kW-250HP - 480V - EMC filter-graphic terminal
PRODUCT TYPE INFO: Altivar 71


Available

Free Shipping
2 Year warranty

Categories

Part NumberATV71HC16N4
ManufacturerSchneider Electric
SeriesAltivar 71
Model #ATV71HC16N4
TypeAC Drives
Warranty2 Year
Range of productAltivar 71
200 m unshielded cable
289 A for 380 V 3 phases 160 kW / 250 hp
314 A at 2.5 kHz 460 V 3 phases 160 kW / 250 hp
518 A for 2 s 3 phases 160 kW / 250 hp
2.5...8 kHz with derating factor
ENA (Energy adaptation) system for unbalanced loads
Sensorless flux vector control (SFVC) (voltage or current vector)
Flux vector control (FVC) with sensor (current vector)
Product or component typeVariable speed drive
Product specific applicationComplex, high-power machines
Component nameATV71
Motor power kW160 kW, 3 phases at 380...480 V
Motor power hp250 hp, 3 phases at 380...480 V
Maximum motor cable length100 m shielded cable
Power supply voltage380...480 V - 15...10 %
Network number of phases3 phases
Line current233 A for 480 V 3 phases 160 kW / 250 hp
EMC filterIntegrated
Assembly styleWith heat sink
VariantReinforced version
Apparent power190.2 kVA at 380 V 3 phases 160 kW / 250 hp
Prospective line Isc50 kA for 3 phases
Nominal output current314 A at 2.5 kHz 380 V 3 phases 160 kW / 250 hp
Maximum transient current471 A for 60 s 3 phases 160 kW / 250 hp
Output frequency0.1…500 Hz
Nominal switching frequency2.5 kHz
Switching frequency2.5...8 kHz adjustable
Asynchronous motor control profileVoltage/frequency ratio (2 or 5 points)
Type of polarizationNo impedance for Modbus

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV71HC16N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV71HC16N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV71HC16N4, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 10 hours and 55 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV71HC16N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The ATV71HC16N4 is a Variable speed drive ATV71 - 160kW-250HP - 480V -... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the altivar-71 line come with a 2 year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
