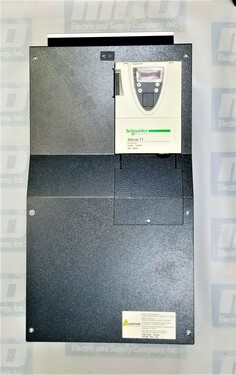

ATV71HD75N4

ATV71HD75N4

Rated 4.5/5 on 2 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: ATV71 Variable Speed Drive 75 kW 100 HP 480 Volt EMC Filter

PRODUCT TYPE INFO: Altivar 71

2 in stock
Ships Today

2 Year warranty

Categories

Part NumberATV71HD75N4
ManufacturerSchneider Electric
SeriesAltivar 71
Model #ATV71HD75N4
TypeAC Drives
Warranty2 Year
Range of productAltivar 71
200 m unshielded cable
167 A for 380 V 3 phases 75 kW / 100 hp
160 A at 2.5 kHz 380 V 3 phases 75 kW / 100 hp
264 A for 2 s 3 phases 75 kW / 100 hp
2.5...16 kHz with derating factor
Voltage/frequency ratio (2 or 5 points)
Flux vector control (FVC) with sensor (current vector)
Sensorless flux vector control (SFVC) (voltage or current vector)
Product or component typeVariable speed drive
Product specific applicationComplex, high-power machines
Component nameATV71
Motor power kW75 kW, 3 phases at 380...480 V
Motor power hp100 hp, 3 phases at 380...480 V
Maximum motor cable length100 m shielded cable
Power supply voltage380...480 V - 15...10 %
Network number of phases3 phases
Line current137 A for 480 V 3 phases 75 kW / 100 hp
EMC filterIntegrated
Assembly styleWith heat sink
Apparent power109.9 kVA at 380 V 3 phases 75 kW / 100 hp
Prospective line Isc22 kA for 3 phases
Nominal output current124 A at 2.5 kHz 460 V 3 phases 75 kW / 100 hp
Maximum transient current240 A for 60 s 3 phases 75 kW / 100 hp
Output frequency0.1…500 Hz
Nominal switching frequency2.5 kHz
Switching frequency1...16 kHz adjustable
Asynchronous motor control profileENA (Energy adaptation) system for unbalanced loads
Type of polarizationNo impedance for Modbus

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV71HD75N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV71HD75N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV71HD75N4, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 102lbs

Want it shipped today?

  • Order within the next 3 hours and 12 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV71HD75N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Schneider Electric ATV71HD75N4 Overview

The ATV71HD75N4 module is a variable speed drive for synchronous and asynchronous motors is manufactured by Schneider Electric as a part of their Altivar 71 line of drives. The ATV 71 is manufactured for heavy-duty applications. The motor power for the high-performing ATV 71 three-phase module (supply voltage: 380…480 V 50/60 Hz).  The max line supply input for the Schneider Electric ATV71HD75N4 is 167 A at 380 V and 137 A at 480 V. Twenty-two kA is the max. prospective line Isc. The apparent power for this unit is 110 kVA with a maximum inrush current of 200 A. The maximum available nominal current In is 160 A and the maximum transient current is 240 A/60s and 264 A/2s.

Features of the Schneider Electric ATV71HD75N4

Made for three-phase motors, the ATV71HD75N4 variable speed drive is in the complex machine category of ATV drives and is a 500 V three-phase, 90 kW/125 HP to 500 kW/700 HP. It has an IP protection rating of IP 23 or IP 54.

Which cooling method does the Schneider Electric ATV71HD75N4 use? The ATV71HD75N4 module uses an integrated heat sink for colling or base plate or a water-cooled system.

What are the communication modalities for the variable speed drive module ATV71HD75N4? There are two communication modes integrated on the ATV71HD75N4. The first is Modbus and the second is CANopen.

Are there optional communication modes available for the ATV71HD75N4? Yes, the ATV71HD75N4 can utilize several communication networks. These communication networks are Modbus TCP Daisy Chain, Modbus/Uni-Telway, EtherNet/IP (RSTP), DeviceNet, PROFIBUS DP V0 and V1, Interbus, CC-Link, Profinet, EtherCAT, and POWERLINK.  Optional cards used with this module are Interface cards for incremental, resolver, SinCos, SinCos Hiperface®, EnDat® or SSI encoders, I/O extension cards, and the Controller Inside the programmable card.

The Altivar 71 has several built-in functions to assist with maintenance, monitoring, and diagnostics. Some of these functions include the Modbus port, I/O maps, a message of up to 5 lines of 24 characters that can be stored in the drive, and remote use of these functions by connecting the drive to a modem via.  The ATV 71 utilizes error logs with a display of the value of up to 16 variables on the occurrence of a fault.  It has built-in drive test functions with a diagnostic screen on the remote graphic display terminal as well as communication maps for the different ports. It enjoys an oscilloscope function that can be viewed using the SoMove setup software and identification of the drive's component parts as well as the software versions.  It can manage the drive installed base via microprocessors with flash memory. It also has display terminal languages loaded in the flash memory.

How to use the ATV71HD75N4

Once you receive the Schneider Electric ATV71HD75N4 the drive should be inspected for damage. Next, the line voltage should be checked for compatibility with the drive’s voltage range. After these two tasks are performed this drive module may be vertically mounted at ± 10° away from heating elements. Space for air circulation from top to bottom is necessary as well as front space.  Any option modules may then be installed on the drive module. The next step is to wire the drive connecting the motor making sure the connections correspond to the voltage. When the power is off, connect the line supply the control and the speed reference.

The Schneider Electric variable speed drive for synchronous and asynchronous motors ATV71HD75N4 comes with a two-year warranty.

Product Description

The ATV71HD75N4 is a ATV71 Variable Speed Drive 75 kW 100 HP 480 Volt E... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the altivar-71 line come with a 2 year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
