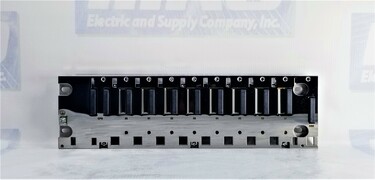

Schneider Electric BMXXBP0800

Rated 5/5 on 1 review

Rate this product

MANUFACTURER: Schneider Electric
DESCRIPTION: Backplane - 8 Slots

3 in stock

Free Shipping

2 Year warranty

Part NumberBMXXBP0800
ManufacturerSchneider Electric
TypeBackplane Models
Model #BMX-XBP-0800
Warranty2 Year
Range Modicon M340
CategoryAutomation platform rack
No of slots8 bus X
Rlative humidity10…95 % without condensation
CompatibilityI/O module BMXP34 processor BMXCPS power supply Specific application module
Power consumption2 W
Ambient temp32…140 °F
Protective treatmentTC

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed BMXXBP0800 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this BMXXBP0800 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty BMXXBP0800, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 3lbs

Want it shipped tomorrow?

  • Order within the next 19 hours and 21 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty BMXXBP0800 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric BMXXBP0800 Overview

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Backplane Models from other manufacturers such as Modicon and ABB.

Modicon M340 BMXXBP0800 Rack

The Modicon M340 automation platform stands out as a robust and versatile solution. At the heart of this platform is the BMXXBP0800 rack, an essential component that provides the infrastructure for building complex automation systems.

Versatile Slot Configuration

The BMXXBP0800 rack is designed to accommodate a variety of automation modules, boasting 8 slots for flexible configuration. These slots serve as the foundation for assembling a tailored automation system. With this versatile slot configuration, users can mix and match I/O modules, BMXP34 processors, BMXCPS power supplies, and specific application modules to meet the specific requirements of their automation project.

Power Efficiency

One noteworthy feature of the BMXXBP0800 rack is its impressive power efficiency. With a power consumption of just 2 watts, this rack minimizes energy consumption while maintaining reliable performance. This efficiency is crucial in industrial settings where energy savings translate into cost savings and environmental benefits.

Multiple Mounting Options

The BMXXBP0800 rack offers flexibility in terms of installation. It can be securely mounted using different methods, making it suitable for various environments. Users can choose to mount it on a panel using four screws with a diameter ranging from 0.17 to 0.25 inches (4.32 to 6.35 mm). Alternatively, it can be attached to a plate using four M6 screws. For those who prefer DIN rail mounting, the rack can be easily clipped onto a 35 mm symmetrical DIN rail. This adaptability ensures that the BMXXBP0800 can be integrated into diverse automation setups with ease.

Robust Build and IP20 Protection

In industrial environments, durability is paramount. The BMXXBP0800 rack is constructed with quality in mind, ensuring its longevity even in demanding conditions. With an IP20 degree of protection, it is safeguarded against the ingress of solid objects, providing an additional layer of security for the internal components. This level of protection is particularly important in settings where dust and debris are prevalent.

Temperature and Humidity Tolerance

The BMXXBP0800 rack is engineered to withstand a wide range of temperature conditions. It can operate efficiently in ambient air temperatures ranging from 32 to 140 degrees Fahrenheit (0 to 60 degrees Celsius). This temperature tolerance ensures that the rack remains operational in both extreme cold and heat, expanding its suitability for various industrial applications.

Furthermore, the rack is designed to handle humidity levels ranging from 10% to 95% without condensation. This is crucial for installations in environments where moisture or humidity fluctuations are common. The protective treatment with a "TC" designation further enhances the rack's resilience in challenging conditions.

Product Availability and Origin

The BMXXBP0800 rack is readily available, typically stocked in distribution facilities, ensuring quick access for those in need of this critical automation component. It is part of the Modicon M340 automation platform, renowned for its reliability and performance.

In conclusion, the BMXXBP0800 rack within the Modicon M340 automation platform is a versatile and robust solution for industrial automation projects. Its flexibility in slot configuration, power efficiency, multiple mounting options, durability, and tolerance to varying environmental conditions make it a valuable asset in the world of industrial automation. Whether used in manufacturing, energy, or other industries, the BMXXBP0800 rack plays a crucial role in building efficient and reliable automation systems.
