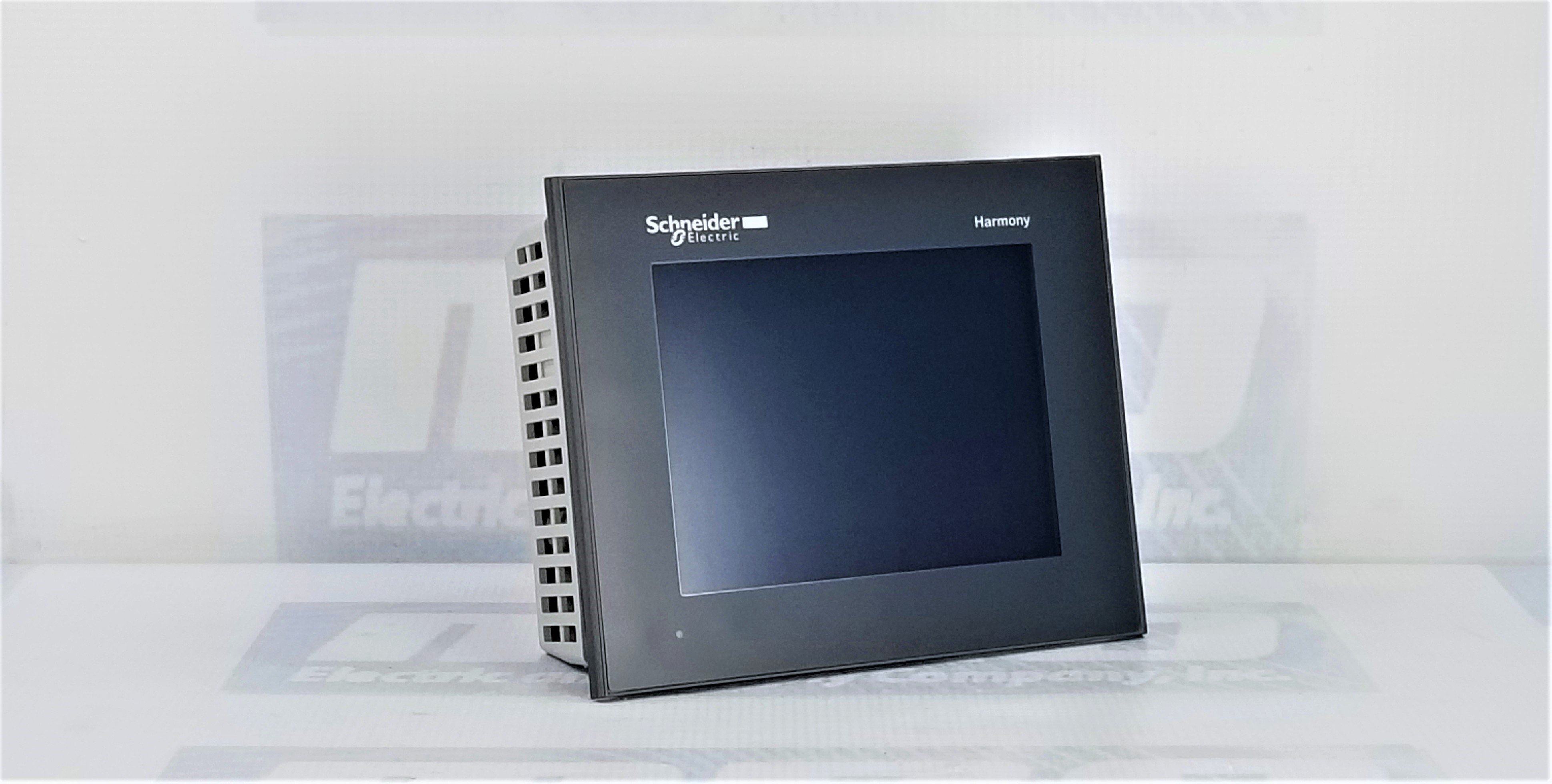

HMIGTO2310

2-year Warranty

Same Day Shipping

Schneider Electric HMIGTO2310

MODICON MAGELIS ADVANCED TOUCHSCREEN PANEL 320 X 240 PIXELS QVGA- 5.7 TFT - 96 MB
5/5
2 ratings

Select Condition

Refurbished

Request Quote

New

5 in stock

$2,179.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberHMIGTO2310
ManufacturerSchneider Electric
TypeHMIs
Warranty2 Year
Product weight0.8 kg
Range of productMagelis GTO
Product or component typeAdvanced touchscreen panel
Display colour65536 colours
Display size5.7 inch
SupplyExternal source
Operating systemMagelis
Battery typeLithium battery for internal RAM, autonomy: 100 days, charging time = 5 d, battery life = 10 yr
Terminal typeTouchscreen display
Display typeBacklit colour TFT LCD
Display resolution320 x 240 pixels QVGA
Touch sensitive zone1024 x 1024
Touch panelResistive film, 1000000 cycles
Backlight lifespan50000 hours (white) at 25 °C
Brightness16 levels - control by touch panel
16 levels - control by software
Character fontASCII (European characters)
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
Korean
Taiwanese (traditional Chinese)
[Us] rated supply voltage24 V DC
Supply voltage limits19.2...28.8 V
Inrush current<= 30 A
Power consumption in W<= 10.5 W
<= 6.5 W (when power is not supplied to external devices)
<= 4.5 W (when backlight is OFF)
<= 5 W (when backlight is dimmed)
Local signallingStatus LED (orange) flashing software starting up
Status LED (green) steady offline
Status LED (green) steady operating
Status LED (red) steady power supply (ON)
Status LED (clear) faded power supply (OFF)
COM2 LED (yellow) steady data is being transmitted
COM2 LED (yellow) faded no data transmission
SD card LED (green) steady card is inserted
SD card LED (green) faded card is not inserted or is not being accessed
Software designationVijeo Designer configuration software >= V6.1
Memory description96 MB flash (EPROM)
Data backed up512 kB internal RAM (SRAM)
Data storage equipmentSD card <= 32 GB
SDHC card <= 32 GB
Downloadable protocolsModbus Plus Schneider Electric Modicon
FIPWAY Schneider Electric Modicon
Modbus TCP Schneider Electric Modicon
Modbus Schneider Electric Modicon
Third party protocols Mitsubishi Melsec
Third party protocols Omron Sysmac
Third party protocols Rockwell Automation Allen-Bradley
Third party protocols Siemens Simatic
Uni-TE Schneider Electric Modicon
Integrated connection typeCOM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps
COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps
COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens
MPI
Ethernet RJ45, interface: 10BASE-T/100BASE-TX
Ethernet RJ45, interface: IEEE 802.3
USB 2.0 type A
USB 2.0 type mini B
Product mountingFlush mounting
Fixing modeBy 4 screw clamps
Front materialPPT
Enclosure materialPPT
Type of coolingNatural convection
Width169.5 mm
Height137 mm
Depth59.5 mm

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed HMIGTO2310 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this HMIGTO2310 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty HMIGTO2310, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 5lbs

Want it shipped today?

  • Order within the next 7 hours and 52 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty HMIGTO2310 for credit when ordering from MRO Electric

Is the Magelis HMIGTO series ATEX Certified?

  • Yes, the Magelis HMIGTO is ATEX certified.
MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric HMIGTO2310 Overview

Schneider Electric HMIGTO2310: Advanced Touchscreen Panel for Industrial Applications

Overview

The Schneider Electric HMIGTO2310 is a part of the Magelis GTO range, offering advanced features and robust performance tailored for industrial environments. As a leading manufacturer of HMI solutions, Schneider Electric delivers a versatile and reliable touchscreen panel designed to optimize control and visualization in various applications.

Advanced Touchscreen Panel

Featuring a 5.7-inch backlit color TFT LCD with 65,536 colors, the HMIGTO2310 provides crisp and vibrant visuals. With a resolution of 320 x 240 pixels QVGA and a touch-sensitive zone of 1024 x 1024, operators can interact with the panel efficiently, utilizing its resistive film touch panel capable of 1,000,000 cycles.

Long-lasting Performance

The HMIGTO2310 is powered by an external source, with a rated supply voltage of 24 V DC. With a battery backup utilizing a lithium battery for internal RAM, the panel ensures continuous operation with an autonomy of 100 days. Its robust design and long-lasting components, including a backlight lifespan of 50,000 hours, guarantee reliability and durability in demanding industrial environments.

Versatile Connectivity and Communication

Equipped with various integrated connection types, including COM1 serial link SUB-D 9, COM2 serial link RJ45, and Ethernet RJ45, the HMIGTO2310 offers seamless communication with external devices and systems. Supporting transmission rates ranging from 2400 to 115200 bps, it facilitates efficient data exchange and integration into industrial networks.

Flexible Installation and Mounting

The HMIGTO2310 is designed for flush mounting, providing a sleek and seamless integration into control panels and equipment. With fixing mode options using 4 screw clamps and front and enclosure materials made of PPT, it ensures easy installation and durability in industrial settings.

Comprehensive Software and Memory

Compatible with Vijeo Designer configuration software version 6.1 or higher, the HMIGTO2310 offers flexible programming and customization options. With 96 MB of flash memory (EPROM) and 512 kB of internal RAM (SRAM), along with support for SD cards up to 32 GB, it provides ample storage for applications, data, and configurations.

Applications and Dimensions

The HMIGTO2310 is suitable for a wide range of industrial applications, including manufacturing, automation, and process control. With dimensions of 169.5 mm (width) x 137 mm (height) x 59.5 mm (depth), it offers a compact footprint while delivering powerful performance for industrial control and visualization needs.

FAQ: Schneider Electric HMIGTO2310

Q: What is the Schneider Electric HMIGTO2310?

A: The Schneider Electric HMIGTO2310 is an advanced touchscreen panel designed for industrial applications, offering robust performance and versatile connectivity.

Q: What are the key features of the HMIGTO2310?

A: Some key features include:

  • 5.7-inch backlit color TFT LCD with 65,536 colors.
  • Resolution of 320 x 240 pixels QVGA and a touch-sensitive zone of 1024 x 1024.
  • Long-lasting performance with a lithium battery backup for internal RAM, autonomy of 100 days, and a backlight lifespan of 50,000 hours.
  • Versatile connectivity options include COM1 and COM2 serial links, Ethernet, and USB.
  • Compatible with Vijeo Designer configuration software and ample memory storage.

Q: What is the power supply requirement for the HMIGTO2310?

A: The HMIGTO2310 operates on a 24 V DC external source with a rated current of 1.5 A and power consumption of up to 10.5 W.

Q: What communication protocols does the HMIGTO2310 support?

A: The HMIGTO2310 supports protocols such as Modbus Plus, FIPWAY, Modbus TCP, Modbus, and third-party protocols including Mitsubishi Melsec, Omron Sysmac, Rockwell Automation Allen-Bradley, and Siemens Simatic.

Q: Can the HMIGTO2310 be integrated into existing systems?

A: Yes, the HMIGTO2310 offers versatile connectivity options and is compatible with Vijeo Designer configuration software, allowing for seamless integration into existing industrial systems.

Q: What are the dimensions and mounting options of the HMIGTO2310?

A: The HMIGTO2310 has dimensions of 169.5 mm (width) x 137 mm (height) x 59.5 mm (depth) and is designed for flush mounting using 4 screw clamps.

Q: What applications is the HMIGTO2310 suitable for?

A: The HMIGTO2310 is suitable for various industrial applications, including manufacturing, automation, and process control, where advanced visualization and control capabilities are required.

Q: Does the HMIGTO2310 come with software for configuration?

A: Yes, the HMIGTO2310 is compatible with Vijeo Designer configuration software version 6.1 or higher, allowing for easy programming and customization.

Q: How durable is the HMIGTO2310 in industrial environments?

A: The HMIGTO2310 is designed for industrial environments with PPT front and enclosure materials, natural convection cooling, and durable components, ensuring reliable performance even in harsh conditions.

Q: What kind of data storage options does the HMIGTO2310 offer?

A: The HMIGTO2310 comes with 96 MB of flash memory (EPROM), 512 kB of internal RAM (SRAM), and supports SD cards up to 32 GB, providing ample storage for applications, data, and configurations.
