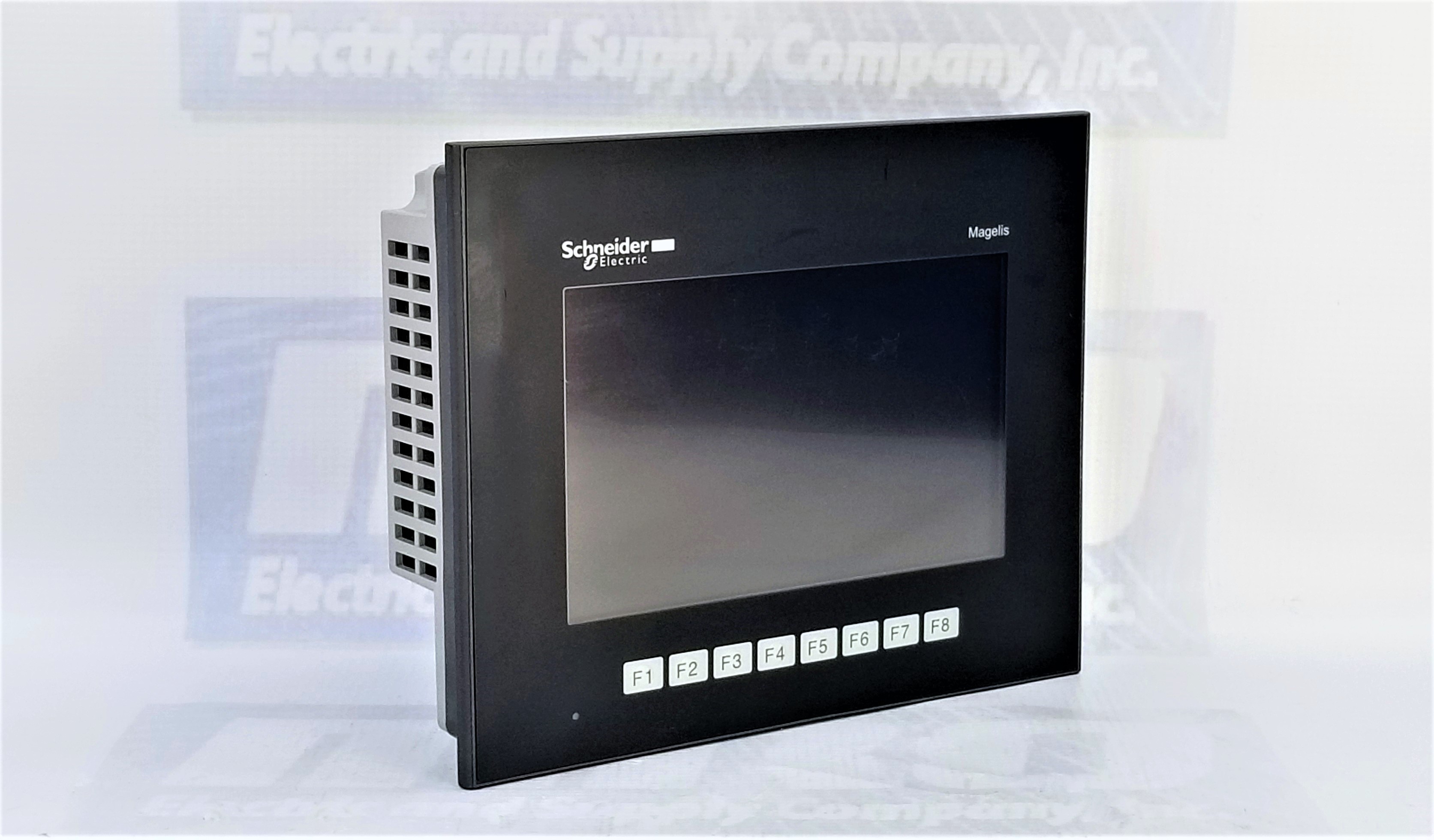

HMIGTO3510

HMIGTO3510

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Schneider Electric
DESCRIPTION: Advanced Touchscreen Panel 800 X 480 Pixels Wvga- 7.0 Tft - 96 Mb
PRODUCT TYPE INFO: Modicon Magelis


1 in stock
Ships Today

Free Shipping
2 Year warranty

Categories

Part NumberHMIGTO3510
ManufacturerSchneider Electric
SeriesModicon Magelis
Model #HMIGTO3510
TypeHMI
Warranty2 Year
Product weight1.2 kg
Range of productMagelis GTO
Product or component typeAdvanced touchscreen panel
Display colour65536 colours
Display size7 inch
SupplyExternal source
Control button typePush-button, key type , marking: F1...F8, number of function keys = 8 (operation defined using Vijeo
Designer)
Operating systemMagelis
Battery typeLithium battery for internal RAM, autonomy: 100 days, charging time = 5 d, battery life = 10 yr
Terminal typeTouchscreen display
Display typeBacklit colour TFT LCD
Display resolution800 x 480 pixels WVGA
Touch sensitive zone1024 x 1024
Touch panelResistive film, 1000000 cycles
Backlight lifespan50000 hours (white) at 25 °C
Brightness16 levels - control by touch panel
16 levels - control by software
Character fontASCII
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
Korean
Taiwanese (traditional Chinese)
[Us] rated supply voltage24 V DC
Supply voltage limits19.2...28.8 V
Inrush current<= 30 A
Power consumption in W<= 12 W
<= 8 W (when power is not supplied to external devices)
<= 5 W (when backlight is OFF)
Local signallingStatus LED (orange) flashing software starting up
Status LED (green) steady offline
Status LED (green) steady operating
Status LED (red) steady power supply (ON)
Status LED (clear) faded power supply (OFF)
COM2 LED (yellow) steady data is being transmitted
COM2 LED (yellow) faded no data transmission
SD card LED (green) steady card is inserted
SD card LED (green) faded card is not inserted or is not being accessed
Software designationVijeo Designer configuration software >= V6.1
Memory description96 MB flash (EPROM)
Data backed up128 kB internal RAM (SRAM)
Data storage equipmentSD card <= 32 GB
SDHC card <= 32 GB
Downloadable protocolsModbus Plus Schneider Electric Modicon
FIPWAY Schneider Electric Modicon
Modbus TCP Schneider Electric Modicon
Modbus Schneider Electric Modicon
Third party protocols Mitsubishi Melsec
Third party protocols Omron Sysmac
Third party protocols Rockwell Automation Allen-Bradley
Third party protocols Siemens Simatic
Uni-TE Schneider Electric Modicon
Integrated connection typeCOM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps
COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps
COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens
MPI
Ethernet RJ45, interface: 10BASE-T/100BASE-TX
Ethernet RJ45, interface: IEEE 802.3
USB 2.0 type A
USB 2.0 type mini B
Product mountingFlush mounting
Fixing modeBy 4 screw clamps
Front materialPPT
Enclosure materialPPT
Type of coolingNatural convection
Width218 mm
Height173 mm
Depth60 mm

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed HMIGTO3510 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this HMIGTO3510 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty HMIGTO3510, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 11 hours and 13 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty HMIGTO3510 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The HMIGTO3510 is a Advanced Touchscreen Panel 800 X 480 Pixels Wvga-... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-magelis line come with a 2 year warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
