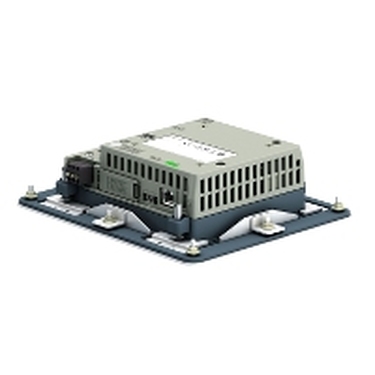

HMIGTO2315

HMIGTO2315

Advanced Touchscreen Panel Stainless 320 X 240 Pixels Qvga- 5.7 Tft - 96 Mb
Available

Free 2 Day Shipping
2 year warranty

Categories

Part NumberHMIGTO2315
ManufacturerSchneider Electric
SeriesModicon Magelis
Weight1lb
TypeHMI
Warranty2 year
Product weight0.8 kg
Range of productMagelis GTO
Product or component typeAdvanced touchscreen panel
Display colour65536 colours
Display size5.7 inch
SupplyExternal source
Operating systemMagelis
Battery typeLithium battery for internal RAM, autonomy: 100 days, charging time = 5 d, battery life = 10 yr
Provided equipment1 protective cover
Terminal typeTouchscreen display
Display typeBacklit colour TFT LCD
Display resolution320 x 240 pixels QVGA
Touch sensitive zone1024 x 1024
Touch panelResistive film, 1000000 cycles
Backlight lifespan50000 hours (white) at 25 °C
Brightness16 levels - control by touch panel
16 levels - control by software
Character fontChinese (simplified Chinese)
Korean
Japanese (ANK, Kanji)
Taiwanese (traditional Chinese)
ASCII
[Us] rated supply voltage24 V DC
Supply voltage limits19.2...28.8 V
Inrush current<= 30 A
Power consumption in W<= 10.5 W
<= 6.5 W (when power is not supplied to external devices)
<= 4.5 W (when backlight is OFF)
<= 5 W (when backlight is dimmed)
Local signallingStatus LED (orange) flashing software starting up
Status LED (green) steady offline
Status LED (green) steady operating
Status LED (red) steady power supply (ON)
Status LED (clear) faded power supply (OFF)
COM2 LED (yellow) steady data is being transmitted
COM2 LED (yellow) faded no data transmission
SD card LED (green) steady card is inserted
Software designationVijeo Designer configuration software >= V6.1
Memory description96 MB flash (EPROM)
Data backed up512 kB internal RAM (SRAM)
Data storage equipmentSD card <= 32 GB
SDHC card <= 32 GB
Downloadable protocolsModbus Plus Schneider Electric Modicon
FIPWAY Schneider Electric Modicon
Modbus TCP Schneider Electric Modicon
Modbus Schneider Electric Modicon
Third party protocols Mitsubishi Melsec
Third party protocols Omron Sysmac
Third party protocols Rockwell Automation Allen-Bradley
Third party protocols Siemens Simatic
Uni-TE Schneider Electric Modicon
Integrated connection typeCOM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps
COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps
COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens
MPI
Ethernet RJ45, interface: 10BASE-T/100BASE-TX
Ethernet RJ45, interface: IEEE 802.3
USB 2.0 type A
USB 2.0 type mini B
Product mountingFlush mounting
Fixing modeBy 8 nuts
By 4 L brackets
Front materialStainless steel 304
Enclosure materialPPT
Type of coolingNatural convection
Width213.5 mm
Height181 mm
Depth59.5 mm

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed HMIGTO2315 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this HMIGTO2315 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty HMIGTO2315, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

This product weighs 1lb. Want it shipped today?

  • Order within the next 14 hours and 13 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty HMIGTO2315 for credit when ordering from MRO Electric
