|Product weight||0.1 kg|
|Range of product||Modicon M238 logic controller|
|Product or component type||Discrete output module|
|Discrete output number||16|
|Discrete output type||Transistor|
|Discrete output voltage||24 V|
|Discrete output logic||Source|
|Discrete output current||0.4 A|
|Range compatibility||Advantys OTB|
|Output voltage limits||20.4...28.8 V|
|Current per channel||0.48 A|
|Current per output common||2 A|
|Number of common point||1|
|Response time||450 Âµs from state 0 to state 1|
|450 Âµs from state 1 to state 0|
|[Ures] residual voltage||<= 1 V at state 1|
|Leakage current||0.1 mA|
|Inductive load||<= 10 mH|
|Tungsten load||<= 9.6 W|
|Short-circuit protection||With automatic reactivaton|
|Overload protection||With automatic reactivaton|
|Isolation between channels||None|
|Isolation between channels and||500 V for 1 minute|
|Current consumption||15 mA 5 V DC at state 1 for all output|
|20 mA 24 V DC at state 1 for all output|
|Local signalling||2 display blocks|
|Electrical connection||1 connector HE10|
|Mounting support||35 mm symmetrical DIN rail|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TM2DDO16TK to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TM2DDO16TK we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TM2DDO16TK, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty TM2DDO16TK for credit when ordering from MRO Electric

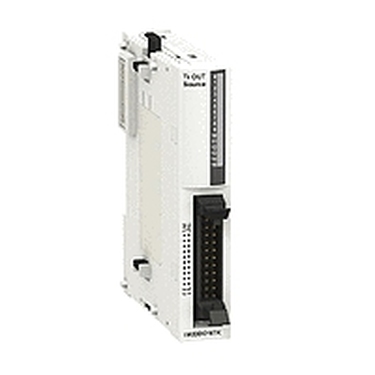

The TM2DDO16TK is a Discrete Output Module M238 - 16 Outputs 24 V Tran... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products come with a 2 year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at firstname.lastname@example.org, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TM2DDO16TK, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TM2DDO16TK products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
