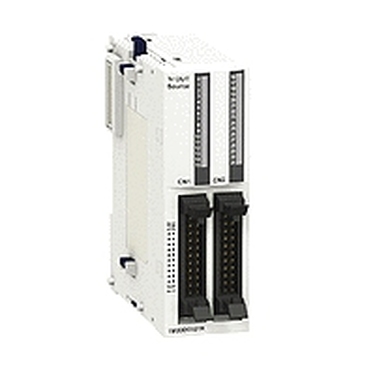

DISCRETE OUTPUT MODULE M238 - 32 OUTPUTS 24 V TRANSISTOR - 1 CONNECTOR HE10
| Part Number | TM2DDO32TK |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Warranty | 2 Year |
| Product weight | 0.07 kg |
| Range of product | Modicon M238 logic controller |
| Product or component type | Discrete output module |
| Discrete output number | 32 |
| Discrete output type | Transistor |
| Discrete output voltage | 24 V |
| Discrete output logic | Source |
| Discrete output current | 0.4 A |
| Range compatibility | Advantys OTB |
| Twido | |
| Output voltage limits | 20.4...28.8 V |
| Current per channel | 0.48 A |
| Current per output common | 2 A |
| Number of common point | 2 |
| Response time | 450 µs from state 0 to state 1 |
| 450 µs from state 1 to state 0 | |
| [Ures] residual voltage | <= 0.4 V at state 1 |
| Leakage current | 0.1 mA |
| Inductive load | <= 10 mH |
| Tungsten load | <= 9.6 W |
| Short-circuit protection | With automatic reactivaton |
| Overload protection | With automatic reactivaton |
| Isolation between channels | None |
| Isolation between channels and | 500 V for 1 minute |
| internal logic | |
| Current consumption | 25 mA 5 V DC at state 1 for all output |
| 40 mA 24 V DC at state 1 for all output | |
| Local signalling | 2 display blocks |
| Electrical connection | 1 connector HE10 |
| Mounting support | 35 mm symmetrical DIN rail |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TM2DDO32TK to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TM2DDO32TK we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TM2DDO32TK, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty TM2DDO32TK for credit when ordering from MRO Electric

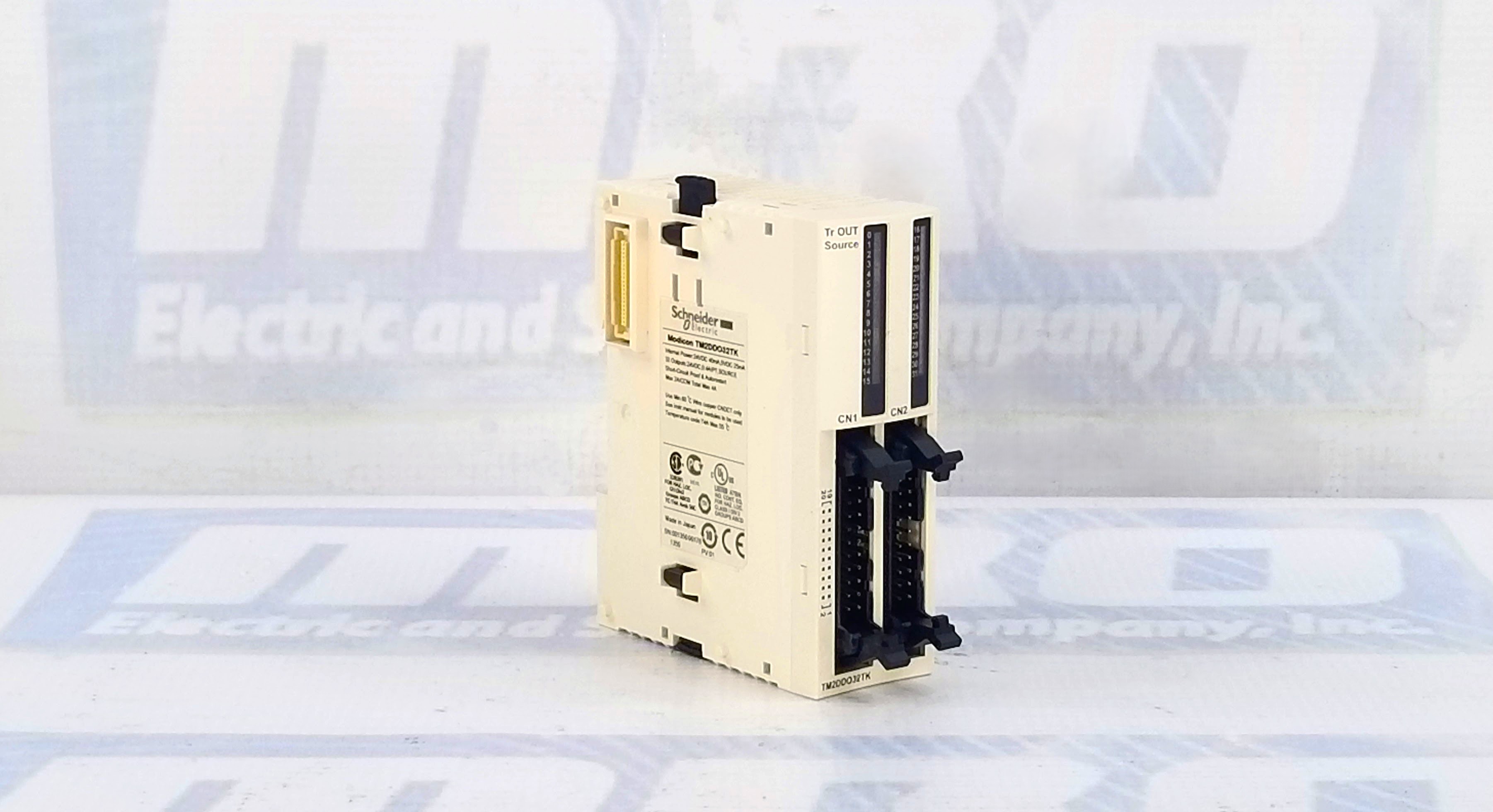

The Schneider Electric TM2DDO32TK is a 32-channel discrete output module designed to enhance performance and flexibility in compact automation systems. As part of the Modicon M238 logic controller family, this output module is ideal for applications requiring reliable 24V transistor outputs in environments where space and response time are critical.
Equipped with 32 sourcing-type transistor outputs, the TM2DDO32TK enables direct control of field devices, including relays, solenoids, and indicators. With 0.4 A output current per channel and a total of 2 output commons, this module offers excellent output density in a compact form factor. It is compatible with Advantys OTB and Twido platforms, making it a versatile choice for industrial automation.
Designed for high-speed applications, the TM2DDO32TK provides a fast response time of just 450 µs from state 0 to 1 and vice versa. This quick transition time ensures minimal delay in signal transmission, making it ideal for processes that require precise timing and responsiveness.
The module features short-circuit and overload protection with automatic reactivation, reducing system downtime and maintenance. It handles inductive loads of up to 10 mH and tungsten loads of up to 9.6 W, providing the durability required for a variety of load types. Electrical isolation of 500 V between internal logic and output channels provides an additional layer of safety.
Installation is streamlined with a 35 mm symmetrical DIN rail mount and HE10 connector for quick and secure electrical connections. The module's lightweight design (0.07 kg) and local signaling with dual display blocks make status monitoring and setup easy.
MRO Electric offers the TM2DDO32TK for immediate shipping with a 2-year warranty, ensuring quick deployment and dependable service support for your automation needs.
What is the Schneider TM2DDO32TK?
It is a 32-point transistor output module for discrete control in industrial applications.
What voltage does it support?
It operates at 24 V DC with an output voltage range of 20.4 to 28.8 V.
What type of outputs does it use?
The outputs are sourced by a transistor-type (PNP logic).
What is the max current per channel?
Each channel supports up to 0.4 A, with a peak current of 0.48 A.
Is it short-circuit protected?
Yes, it includes automatic short-circuit and overload protection.
How fast is the switching time?
It offers a 450 µs response time for both on and off states.
Does it support isolated outputs?
No, there is no isolation between channels, but 500 V isolation between logic and outputs.
What is it compatible with?
It is compatible with Modicon M238, Twido, and Advantys OTB systems.
How is it mounted?
It mounts on a 35 mm DIN rail and connects using a HE10 connector.
Is the TM2DDO32TK in stock?
Yes, it's available immediately from MRO Electric, accompanied by a 2-year warranty.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TM2DDO32TK, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TM2DDO32TK products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
