TM2DDO8UT

TM2DDO8UT

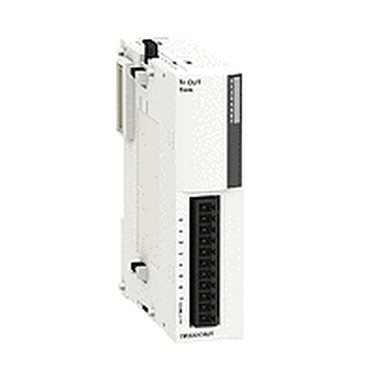

Discrete Output Module M238 - 8 Outputs - 1 Removable Screw Terminal Block
Available

2 Year warranty
Part NumberTM2DDO8UT
ManufacturerSchneider Electric
Model #TM2DDO8UT
TypeI/O Modules
Warranty2 Year
Product weight0.085 kg
Range of productModicon M238 logic controller
Product or component typeDiscrete output module
Discrete output number8
Discrete output typeTransistor
Discrete output voltage24 V
Discrete output logicSink
Discrete output current0.3 A
Range compatibilityAdvantys OTB
Twido
Output voltage limits20.4...28.8 V
Current per channel0.36 A
Current per output common3 A
Number of common point1
Response time300 µs at state 0
300 µs at state 1
[Ures] residual voltage<= 1 V at state 1
Tungsten load<= 8 W
Short-circuit protectionWithout
Overload protectionWithout
Isolation between channelsNone
Isolation between channels and500 V for 1 minute
Current consumption10 mA 5 V DC at state 1 for all output
20 mA 24 V DC at state 1 for all output
Local signalling1 display block
Electrical connection1 removable screw terminal block
Mounting support35 mm symmetrical DIN rail

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TM2DDO8UT to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TM2DDO8UT we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TM2DDO8UT, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 2 hours and 42 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TM2DDO8UT for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The TM2DDO8UT is a Discrete Output Module M238 - 8 Outputs - 1 Remova... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products come with a 2 year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
