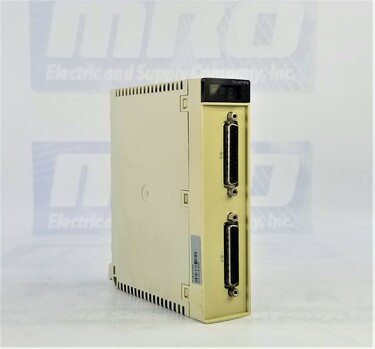

MODICON PREMIUM ANALOG INPUT MODULE- 16 I THERMOCOUPLE ± 63 MV
| Part Number | TSXAEY1614 |
| Manufacturer | Schneider Electric |
| Type | Bases |
| Model # | TSX-AEY-1614 |
| Warranty | 2 Year |
| Module format | Standard |
| Product or component type | Analog input module |
| Analogue input number | 16 |
| Analogue input type | Voltage +/- 80 mV |
| Thermocouple thermocouple U | |
| Thermocouple thermocouple T | |
| Thermocouple thermocouple S | |
| Thermocouple thermocouple R | |
| Thermocouple thermocouple N | |
| Thermocouple thermocouple L | |
| Thermocouple thermocouple K | |
| Thermocouple thermocouple J |
| Thermocouple thermocouple E | |
| Thermocouple thermocouple B | |
| Analog/Digital conversion | 16 bits |
| Nominal read cycle time | 70 ms per channel |
| Measurement error | 4 °C thermocouple B 0...60 °C |
| 3.7 °C thermocouple S 0...60 °C | |
| 2.5 °C thermocouple B 25 °C | |
| 2.4 °C thermocouple R 0...60 °C | |
| 2.2 °C thermocouple S 25 °C | |
| 2.1 °C thermocouple R 25 °C | |
| 1.7 °C thermocouple N 0...60 °C | |
| 1.6 °C thermocouple K 0...60 °C | |
| 1.4 °C thermocouple L 0...60 °C | |
| 1.4 °C thermocouple J 0...60 °C | |
| 1.3 °C thermocouple U 0...60 °C | |
| 1.3 °C thermocouple T 0...60 °C | |
| 1.2 °C thermocouple E 0...60 °C |
| 1.1 °C thermocouple N 25 °C | |
| 1 °C thermocouple U 25 °C | |
| 1 °C thermocouple T 25 °C | |
| 1 °C thermocouple K 25 °C | |
| 0.9 °C thermocouple L 25 °C | |
| 0.9 °C thermocouple J 25 °C | |
| 0.8 °C thermocouple E 25 °C | |
| Isolation between channels and bus | 1000 Vrms |
| Isolation between channels and ground | 1000 Vrms |
| Common mode between channels | 250 V AC or 280 V AC |
| Common mode between channels and earth | 250 V DC |
| Maximum overvoltage on input | -30...30 V at state 1 250 Ohm |
| -15...15 V at state 0 250 Ohm | |
| Electrical connection | 2 connectors SUB-D 25 |
| Overcurrent | -30...30 mA at state 1 250 kOhm |
| Marking | CE |
| Current consumption | 300 mA 5 V DC |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXAEY1614 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXAEY1614 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXAEY1614, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty TSXAEY1614 for credit when ordering from MRO Electric
The Schneider Electric TSXAEY1614 is a robust and versatile analog input module designed for high-performance industrial applications. As part of Schneider Electric’s Modicon range, it is a reliable component in automation and process control systems. The TSXAEY1614 delivers precise analog-to-digital conversion, making it suitable for complex measurement tasks where accuracy and stability are essential.
This module has 16 analog input channels and can process both voltage and thermocouple signals. It supports various thermocouple types, including B, E, J, K, L, N, R, S, T, and U, offering flexibility for temperature measurement applications. The TSXAEY1614 can handle voltage inputs of ±80 mV and can measure low-level voltage signals with a high degree of precision. Its 16-bit analog-to-digital conversion ensures accurate data representation, making it ideal for monitoring critical industrial processes.
The TSXAEY1614 operates with a nominal read cycle time of 70 milliseconds per channel, providing fast and reliable data acquisition. This speed is crucial in dynamic environments where process variables may fluctuate rapidly. The module also boasts a low measurement error that varies depending on the thermocouple type and operating temperature. For example, the error rate for a thermocouple B at 0–60°C is four °C, but at 25°C, this decreases to 2.5°C. Other thermocouples such as K, N, J, and U exhibit even more refined error rates, ensuring accurate temperature measurements across various conditions.
Safety and reliability are key features of the TSXAEY1614. The module provides 1000 Vrms electrical isolation between channels and the bus and between channels and the ground. This ensures that the system can operate safely in high-voltage environments and prevents interference between input channels. Additionally, it offers 250 V AC isolation between channels and between the channels and the earth, enhancing durability in environments prone to voltage surges.
The TSXAEY1614 includes two SUB-D 25 connectors for straightforward electrical connections, facilitating quick installation and integration into existing systems. The module operates at a current consumption of 300 mA at 5 V DC, making it energy-efficient for continuous use. The CE marking certifies that the TSXAEY1614 complies with essential safety and environmental regulations, making it suitable for use in various industrial applications.
MRO Electric and Supply offers a 2-year warranty on the TSXAEY1614, providing customers with peace of mind. Free shipping is also available, making purchasing more convenient for businesses.
A1: The TSXAEY1614 is an analog input module that provides 16 channels for processing voltage and thermocouple inputs. It is primarily used for temperature measurement and monitoring in industrial automation systems.
A2: The module supports B, E, J, K, L, N, R, S, T, and U thermocouple types, making it versatile for various temperature measurement applications.
A3: It has a 16-bit analog-to-digital conversion, ensuring high-resolution data processing for accurate measurement and control.
A4: The module's nominal read cycle time is 70 milliseconds per channel, which allows for fast and reliable data acquisition.
A5: The TSXAEY1614 offers 1000 Vrms isolation between channels and the bus and between channels and the ground. Additionally, it provides 250 V AC isolation between channels and the earth for added safety in high-voltage environments.
A6: The measurement error varies by thermocouple type and temperature. For instance, the error for thermocouple B is four °C at 0–60°C and 2.5°C at 25°C. Other thermocouples like J and K exhibit errors around one °C at 25°C.
A7: Yes, the TSXAEY1614 comes with a 2-year MRO Electric and Supply warranty, ensuring reliability and customer support.
A8: Free shipping is available when purchasing the TSXAEY1614 from MRO Electric and Supply.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TSXAEY1614, take a look at more from our Bases line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TSXAEY1614 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
