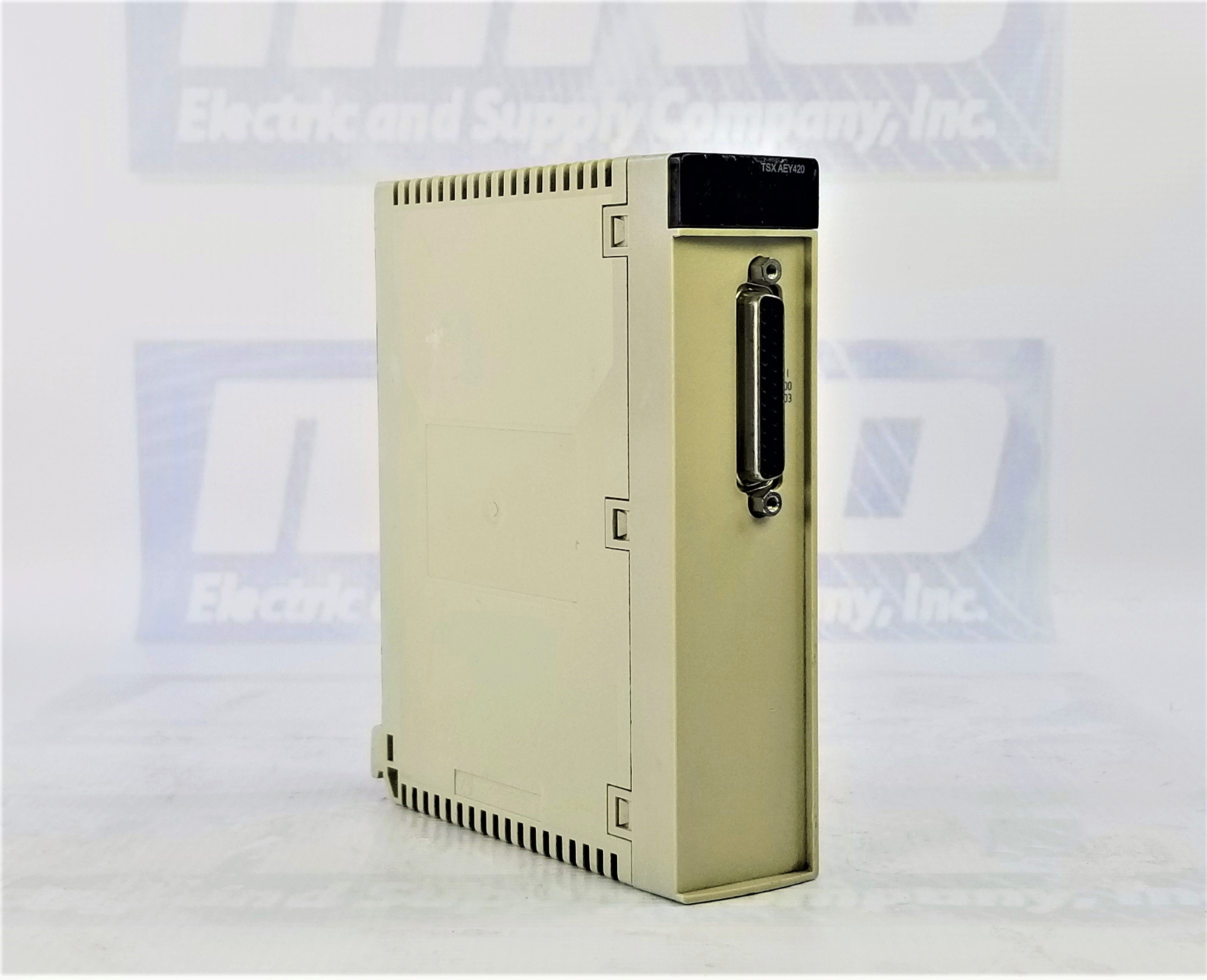

Fast Analog Input Module Modicon Premium - 4 I Multirange

3 new in stock

2 year warranty


Part NumberTSXAEY420
ManufacturerSchneider Electric
SeriesModicon Premium
Warranty2 year
Module formatStandard
Product or component typeAnalog input module
Input levelHigh level
Analogue input number4
Analogue input typeVoltage 1...5 V
Voltage 0...5 V
Voltage 0...10 V
Voltage +/- 10 V
Current 4...20 mA
Current 0...20 mA
Analog/Digital conversion16 bits
Nominal read cycle time1 ms
Measurement error0.4 % of full scale 4...20 mA 0...60 °C
0.4 % of full scale 1...5 V 0...60 °C
0.4 % of full scale 0...5 V 0...60 °C
0.4 % of full scale 0...20 mA 0...60 °C
0.2 % of full scale 4...20 mA 25 °C
0.2 % of full scale 1...5 V 25 °C
0.2 % of full scale 0...5 V 25 °C
0.2 % of full scale 0...20 mA 25 °C
0.2 % of full scale 0...10 V 0...60 °C
0.2 % of full scale +/- 10 V 0...60 °C
0.1 % of full scale 0...10 V 25 °C
0.1 % of full scale +/- 10 V 25 °C
Isolation between channels and bus1000 Vrms
Isolation between channels and ground1000 Vrms
Isolation between channelsCommon point
Common mode between channelsNone
Maximum overvoltage on input-30...30 V at state 1 250 Ohm
-15...15 V at state 0 250 Ohm
Electrical connection1 connector SUB-D 25
Overcurrent-30...30 mA at state 1 250 kOhm
Current consumption500 mA 5 V DC

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXAEY420 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXAEY420 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXAEY420, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

This product weighs 20lbs. Want it shipped tomorrow?

  • Order within the next 19 hours and 23 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXAEY420 for credit when ordering from MRO Electric

Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TSXAEY420, take a look at more from our Modicon Premium line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
