TSXCTY2C

2-year Warranty

Same Day Shipping

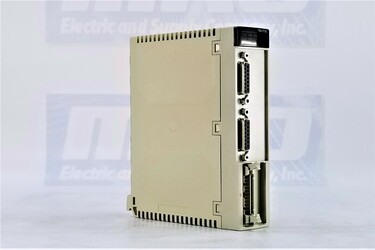

Schneider Electric TSXCTY2C

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: SCHNEIDER ELECTRIC

DESCRIPTION: 2 Chan/ Measurement /Counter Module - 15 Ma At 24 V DC, 850 Ma At 5 V DC

PRODUCT TYPE INFO: MODIOCN MICRO

6 in stock


Free Shipping

2 Year warranty

Part NumberTSXCTY2C
ManufacturerSchneider Electric
TypeControllers
Model #TSX-CTY-2C
Warranty2 Year
Product weight0.32 kg
Range of productModicon Premium Automation platform
Product or component typeMeasurement and counter module
I/O modularity2 channels
Electrical circuit typeAuxiliary output conforming to EN/IEC 61131-2
Counting frequency1000000 Hz
Incremental encoder frequency x1500 kHz
Incremental encoder frequency x 4250 kHz
Power dissipation in W7...10 W
Cycle time1 ms
Discrete input logicCurrent sink auxiliary input (preset, enable and read) conforming to IEC 1131 Type 2
Resistive 2/3-wire proximity sensors PNP/NPN conforming to IEC 1131 Type 2
Resistive encoder input
Input logicPositive
Input compatibilityAbsolute encoder SSI serial output
Incremental encoder 10...30 V totem pole
Incremental encoder 5 V DC RS422
Absolute encoder parallel output ABE7CPA11
Input voltage24 V 16 mA 2/3-wire proximity sensors PNP/NPN
24 V 8 mA auxiliary input (preset, enable and read)
5 V 18 mA encoder input
Input voltage limits<= 5.5 V encoder input
19...30 V 2/3-wire proximity sensors PNP/NPN
19...30 V auxiliary input (preset, enable and read)
Voltage state1 guaranteed>= 11 V 2/3-wire proximity sensors PNP/NPN
>= 11 V auxiliary input (preset, enable and read)
>= 2.4 V encoder input
Current state 1 guaranteed>= 6 mA 2/3-wire proximity sensors PNP/NPN
>= 6 mA auxiliary input (preset, enable and read)
>= 3.6 mA encoder input
Voltage state 0 guaranteed<= 1.2 V encoder input
<= 5 V 2/3-wire proximity sensors PNP/NPN
<= 5 V auxiliary input (preset, enable and read)
Current state 0 guaranteed<= 1 mA encoder input
<= 2 mA 2/3-wire proximity sensors PNP/NPN
<= 2 mA auxiliary input (preset, enable and read)
Response time< 10 ms sensor voltage at return of 24 V auxiliary input (preset, enable and read)
< 2.5 ms sensor voltage at loss of 24 V auxiliary input (preset, enable and read)
Input impedance> 270 Ohm at U = 2.4 V encoder input
1500 Ohm at Un 2/3-wire proximity sensors PNP/NPN
3400 Ohm at Un auxiliary input (preset, enable and read)
400 Ohm at Un encoder input
Output voltage24 V DC
Nominal output current0.5 A
Output voltage limits19...30 V
Voltage drop< 0.5 V at state 1
Output compatibilityPositive logic DC inputs (resistance <= 15 kOhm) auxiliary output
Leakage current< 0.1 mA
Switching time< 250 ms
Switching frequency< 0.6/LI² Hz on inductive load
Output overload protectionCurrent limiter
Thermal tripping via program or automatically
Output short-circuit protectionCurrent limiter
Thermal tripping via program or automatically
Output overvoltage protectionZener diode
Reverse polarity protectionReverse diode on supply
ChecksSensor power supply
Current consumption15 mA 24 V DC
850 mA 5 V DC
Module formatStandard
Local signalling2 LEDs green axis diagnostics available (CH.)
1 LED green module operating (RUN)
1 LED red external fault (I/O)
1 LED red internal fault, module failure (ERR)
Electrical connection1 connector HE-10 20 pins
2 connectors SUB-D 15

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXCTY2C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXCTY2C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXCTY2C, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 19 hours and 57 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXCTY2C for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXCTY2C Overview

Schneider Electric TSXCTY2C: 2-Channel Measurement and Counter Module

The Schneider Electric TSXCTY2C is a versatile 2-channel measurement and counter module designed for integration into the Modicon Premium Automation platform. This module, weighing only 0.34 kg, offers precise measurement capabilities and advanced counter functionalities for automation applications.

Modularity and Electrical Circuit Type

With a focus on I/O modularity, the TSXCTY2C features 2 channels, providing flexibility in configuring automation systems. The electrical circuit type conforms to EN/IEC 61131-2 standards, ensuring compatibility and adherence to industry regulations.

High-Frequency Counting and Incremental Encoding

The module supports counting frequencies up to 1,000,000 Hz, making it suitable for applications with high-speed requirements. It incorporates incremental encoder frequencies, with X1 at 500 kHz and X4 at 250 kHz, catering to diverse industrial needs.

Efficient Power Consumption and Cycle Time

Operating within a power dissipation range of 7 to 10 W, the TSXCTY2C ensures efficient energy utilization. With a rapid 1 ms cycle time, the module contributes to the overall responsiveness and performance of the automation system.

Versatile Input Compatibility

The TSXCTY2C supports various input types, including absolute and incremental encoders, as well as proximity sensors. Input voltages range from 5 V to 30 V, accommodating different sensor and encoder specifications. The module guarantees voltage and current states, providing stability in diverse operational conditions.

Quick Response Time and Output Characteristics

With response times of less than 10 ms for sensor voltage return and less than 2.5 ms for sensor voltage loss, the TSXCTY2C ensures prompt and accurate feedback in dynamic automation processes. The output characteristics include a 24 V DC nominal output voltage with a maximum output current of 0.5 A, catering to the demands of connected devices.

Advanced Protection and Diagnostics

The module features comprehensive protection mechanisms, including thermal tripping, current limiting, short-circuit protection, and overvoltage protection. These features safeguard the module and connected devices from potential electrical issues, ensuring the longevity and reliability of the automation system.

Intuitive LED Signaling and Connectivity Options

Equipped with LEDs for operational status, fault indications, and axis diagnostics, the TSXCTY2C provides intuitive feedback for system monitoring. The electrical connections are facilitated by a 20-pin HE-10 connector and two 15-pin SUB-D connectors, ensuring secure and reliable connections in industrial environments.

Standard Module Format and Lightweight Design

Adhering to a standard module format, the TSXCTY2C seamlessly integrates into the Modicon Premium Automation platform. The compact and lightweight design, coupled with the included green and red LEDs, enhances the ease of installation, configuration, and diagnostics.

In conclusion, the Schneider Electric TSXCTY2C stands as a reliable 2-channel measurement and counter module, offering high-frequency counting, efficient power consumption, versatile input compatibility, and advanced protection mechanisms. Its integration into the Modicon Premium Automation platform ensures seamless incorporation into diverse industrial automation applications.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Controllers from other manufacturers such as Modicon and ABB.
