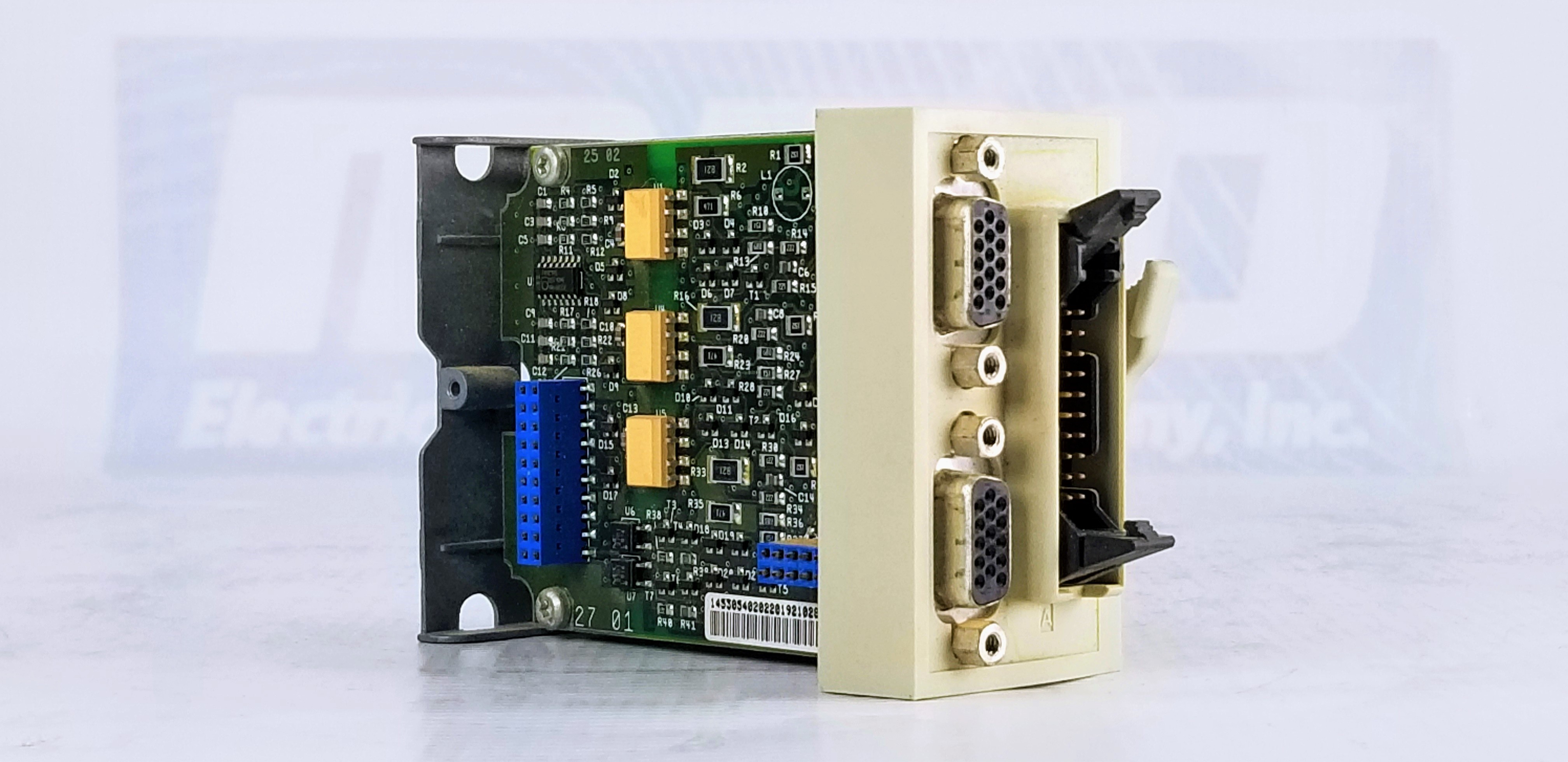

Schneider Electric TSXCTZ2A


3 in stock

Ships Today

Free Shipping

2 Year warranty

Part NumberTSXCTZ2A
ManufacturerSchneider Electric
Model #TSX-CTZ-2A
Warranty2 Year
Range of productModicon TSX Micro automation platform
Product or component typeCounter modules
Counting input number2
Counting frequency40 Hz
Network frequency100 Hz
Input voltage24 V DC
5 V DC
Input current18 mA
Input voltage limits5.5 V 5 V DC
19...30 V 24 V DC
>= 2.4 V at state 1 5 V DC
<= 1.2 V at state 0 5 V DC
>= 11 V at state 1 24 V DC
<= 5 V at state 0 24 V DC
Input current limits<= 1 mA at state 0 5 V DC
>= 6 mA at state 1 24 V DC
<= 2 mA at state 0 24 V DC
>= 3.7 mA at state 1 5 V DC
Response time1.5 ms event processing
8 ms master task
Sensor power supply< 2.5 V
Current consumption15 mA
Logic inputPositive
Input impedance0.27 Ohm 5 V DC at Un
>= 0.44 Ohm 5 V DC at U = 2.4 V
1.4 Ohm 24 V DC at Un
Response time3 ms
Input typeResistive 24 V DC
Input compatibility2-wire/3-wire proximity sensor 24 V DC
Product weight0.21 kg
StandardsIEC 1131 Type 2 24 V DC
Sustainable offer statusNot Green Premium product
RoHS (date code: YYWW)Compliant - since 0849 - Schneider Electric declaration of conformity

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXCTZ2A to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXCTZ2A we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXCTZ2A, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 11 hours and 29 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXCTZ2A for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXCTZ2A Overview

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Controllers from other manufacturers such as Modicon and ABB.
