TSXCTY4A

2-year Warranty

Same Day Shipping

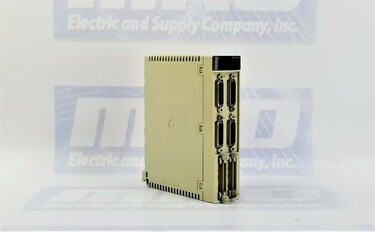

Schneider Electric TSXCTY4A

MODICON MICRO 4 CHANNELS COUNTER MODULES - 40 KHZ - 36 MA AT 24 V DC, 330 MA AT 5 V DC
4/5
1 rating

1 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberTSXCTY4A
ManufacturerSchneider Electric
TypeControllers
Model #TSX-CTY-4A
Warranty2 Year
Product weight0.34 kg
Range of productModicon Premium Automation platform
Product or component typeCounter modules
I/O modularity4 channels
Electrical circuit typeAuxiliary output conforming to EN/IEC 61131
Counting frequency40 kHz
Power dissipation in W8...11.5 W
Cycle time10 ms
Discrete input logicCurrent sink auxiliary input (preset, enable and read) conforming to IEC 1131 Type 2
Resistive 2/3-wire proximity sensors PNP/NPN conforming to IEC 1131 Type 2
Resistive encoder input
Input logicPositive
Input compatibilityIncremental encoder 10...30 V totem pole
Incremental encoder 5 V DC RS422
Input voltage24 V 18 mA 2/3-wire proximity sensors PNP/NPN
24 V 7 mA auxiliary input (preset, enable and read)
5 V 18 mA encoder input
Input voltage limits<= 5.5 V encoder input
19...30 V 2/3-wire proximity sensors PNP/NPN
19...30 V auxiliary input (preset, enable and read)
Voltage state1 guaranteed>= 11 V 2/3-wire proximity sensors PNP/NPN
>= 11 V auxiliary input (preset, enable and read)
>= 2.4 V encoder input
Current state 1 guaranteed>= 3.7 mA encoder input
>= 6 mA 2/3-wire proximity sensors PNP/NPN
>= 6 mA auxiliary input (preset, enable and read)
Voltage state 0 guaranteed<= 1.2 V encoder input
<= 5 V 2/3-wire proximity sensors PNP/NPN
<= 5 V auxiliary input (preset, enable and read)
Current state 0 guaranteed<= 1 mA encoder input
<= 2 mA 2/3-wire proximity sensors PNP/NPN
Response time< 2.5 ms sensor voltage at loss of 24 V auxiliary input (preset, enable and read)
Input impedance> 270 Ohm at U = 2.4 V encoder input
1400 Ohm at Un 2/3-wire proximity sensors PNP/NPN
3400 Ohm at Un auxiliary input (preset, enable and read)
400 Ohm at Un encoder input
Output voltage24 V DC
Nominal output current0.5 A
Output voltage limits19...30 V
Voltage drop< 0.5 V at state 1
Output compatibilityPositive logic DC inputs (resistance <= 15 kOhm) auxiliary output
Leakage current< 0.1 mA
Switching frequency< 0.6/LI² Hz on inductive load
Output overload protectionCurrent limiter
Thermal tripping via program or automatically
Output short-circuit protectionCurrent limiter
Thermal tripping via program or automatically
Output overvoltage protectionZener diode
Reverse polarity protectionReverse diode on supply
ChecksSensor power supply
Current consumption330 mA 5 V DC
36 mA 24 V DC
Module formatStandard
Local signalling4 LEDs green axis diagnostics available (CH.)
1 LED green module operating (RUN)
1 LED red external fault (I/O)
1 LED red internal fault, module failure (ERR)
Electrical connection2 connectors HE-10 20 pins
4 connectors SUB-D 15
