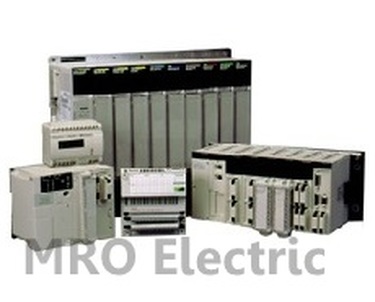

MANUFACTURER: Schneider Electric
DESCRIPTION: Discrete Output Module - 16 Relay Not Protected - 12..24 V DC - 3 A


2 Year warranty
Part NumberTSXDSY16R5C
ManufacturerSchneider Electric
Model #TSXDSY16R5C
TypeI/O Modules
Warranty2 Year
Product weight0.42 kg
Range of productModicon Premium Automation platform
Product or component typeDiscrete output module
Discrete output number16
Discrete output typeRelay not protected
Discrete output voltage12...24 V DC conforming to EN/IEC 61131-2 10...34 V
24...240 V AC conforming to EN/IEC 61131-2 20...264 V
[Ith] conventional free air thermal3 A
Response time< 10 ms deactivation
< 8 ms activation
Contacts type and composition1 NO
Output overvoltage protectionAC inductive, by RC circuit MOV (ZNO) on each preactuator
DC inductive, by discharge diode on each preactuator
Output overload protection1 external fuse per channel or group of channel fast blow
Short-circuit protection1 external fuse per channel or group of channel fast blow
Insulation resistance> 10 MOhm 500 V
Power dissipation(0.25 W + 0.2 W x No of outputs at state 1)
Electrical durability1000000 cycles DC-12 24 W 24 V resistive
1000000 cycles DC-3 24 W inductive
2000000 cycles DC-3 10 W inductive
300000 cycles DC-12 40 W 24 V resistive
100000 cycles AC-14 220 VA 220 V inductive
100000 cycles AC-15 220 VA 220 V inductive
1000000 cycles AC-12 110 VA 110 V resistive
1000000 cycles AC-12 220 VA 220 V resistive
1000000 cycles AC-12 50 VA 48 V resistive
1000000 cycles AC-14 110 VA 220 V inductive
1000000 cycles AC-15 110 VA 220 V inductive
150000 cycles AC-14 110 VA 110 V inductive
150000 cycles AC-15 110 VA 110 V inductive
1500000 cycles AC-14 50 VA 110 V inductive
1500000 cycles AC-15 50 VA 110 V inductive
2000000 cycles AC-14 24 VA 48 V inductive
2000000 cycles AC-15 24 VA 48 V inductive
3000000 cycles AC-14 50 VA 220 V inductive
3000000 cycles AC-15 50 VA 220 V inductive
500000 cycles AC-12 110 VA 48 V resistive
500000 cycles AC-12 220 VA 110 V resistive
500000 cycles AC-14 24 VA 24 V inductive
500000 cycles AC-15 24 VA 24 V inductive
5000000 cycles AC-14 10 VA 110 V inductive
5000000 cycles AC-14 10 VA 220 V inductive
5000000 cycles AC-14 10 VA 48 V inductive
5000000 cycles AC-15 10 VA 110 V inductive
5000000 cycles AC-15 10 VA 220 V inductive
5000000 cycles AC-15 10 VA 48 V inductive
700000 cycles AC-12 50 VA 24 V resistive
Electrical connectionScrew terminal block
Current consumption135 mA 24 V DC rack
80 mA 5 V DC
Module formatStandard

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXDSY16R5C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXDSY16R5C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXDSY16R5C, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 21 hours and 25 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXDSY16R5C for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The TSXDSY16R5C is a Discrete Output Module - 16 Relay Not Protected -... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products come with a 2 year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
