MANUFACTURER: Schneider Electric

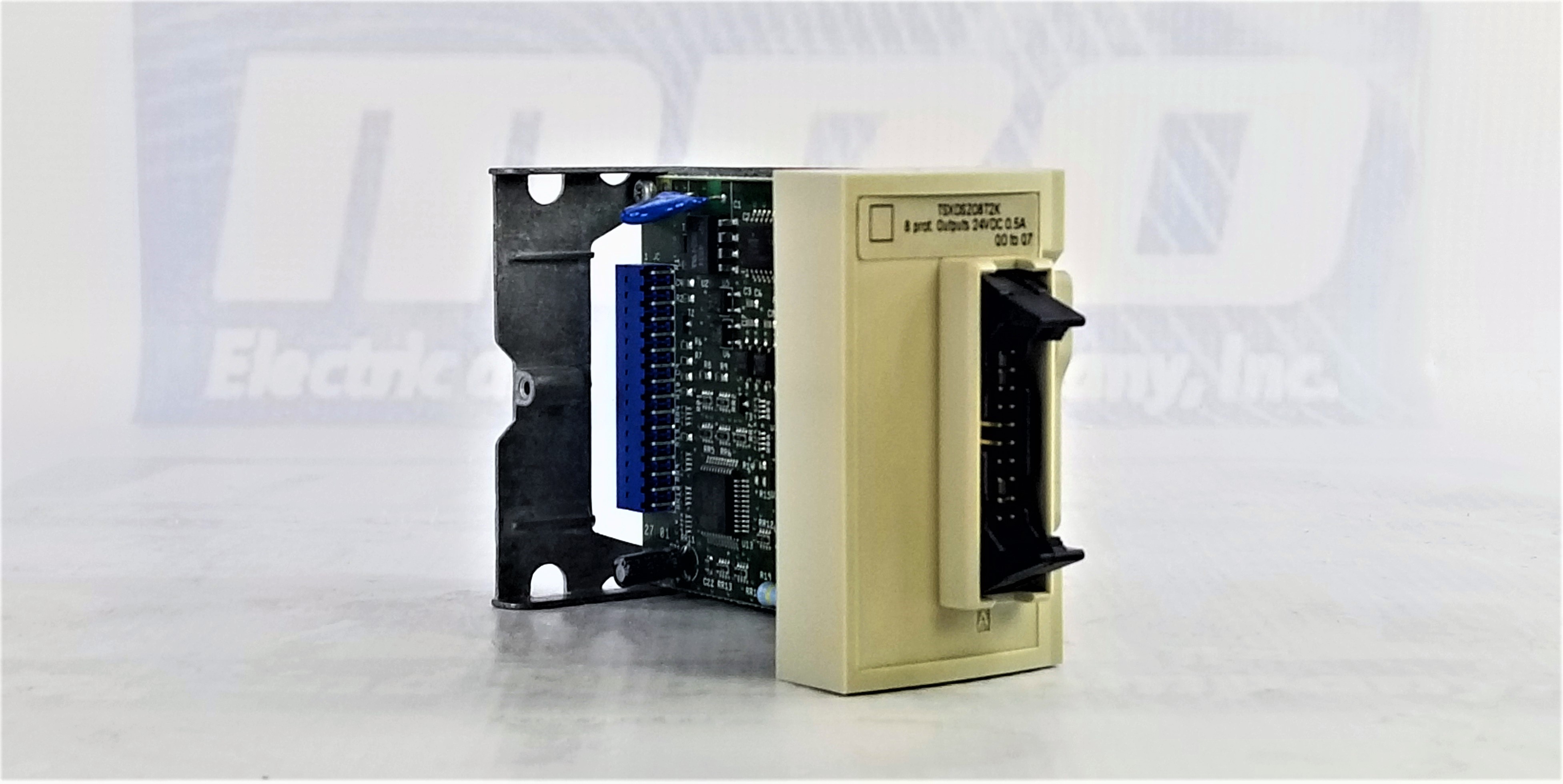

DESCRIPTION: Tsx Micro - 8 Discret Output DC
PRODUCT TYPE INFO: Modicon Micro
|Range of product||Modicon TSX Micro automation platform|
|Product or component type||Discrete output module|
|Discrete output number||8 1 HE-10 connector|
|Discrete output voltage||24 V DC|
|Discrete output current||0.5 mA|
|Discrete output logic||Positive|
|Output voltage limits||19...30 V|
|Output current limits||0.625 A|
|Leakage current||<= 0.5 mA at state 0|
|[Ures] residual voltage||<= 0.3 V|
|Load impedance ohmic||48 Ohm|
|Response time||< 0.5 ms at state 1|
|< 0.5 ms at state 0|
|Switching frequency||< 0.6/LIÂ² Hz|
|Output overvoltage protection||By zener diode|
|Output short-circuit protection||Current limiter|
|Thermal circuit breaker|
|Reverse polarity protection||Reverse diode on power supply|
|Paralleling of outputs||Yes : 2 maximum|
|Current consumption||38 mA|
|Power dissipation in W||3.5 W by module|
|0.15 W by channel|
|Isolation voltage||1500 V 1 s|
|Product weight||0.18 kg|
|Sustainable offer status||Not Green Premium product|
|RoHS (date code: YYWW)||Will not be compliant|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TSXDSZ08T2K to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TSXDSZ08T2K we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TSXDSZ08T2K, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty TSXDSZ08T2K for credit when ordering from MRO Electric
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at firstname.lastname@example.org, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TSXDSZ08T2K, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TSXDSZ08T2K products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
