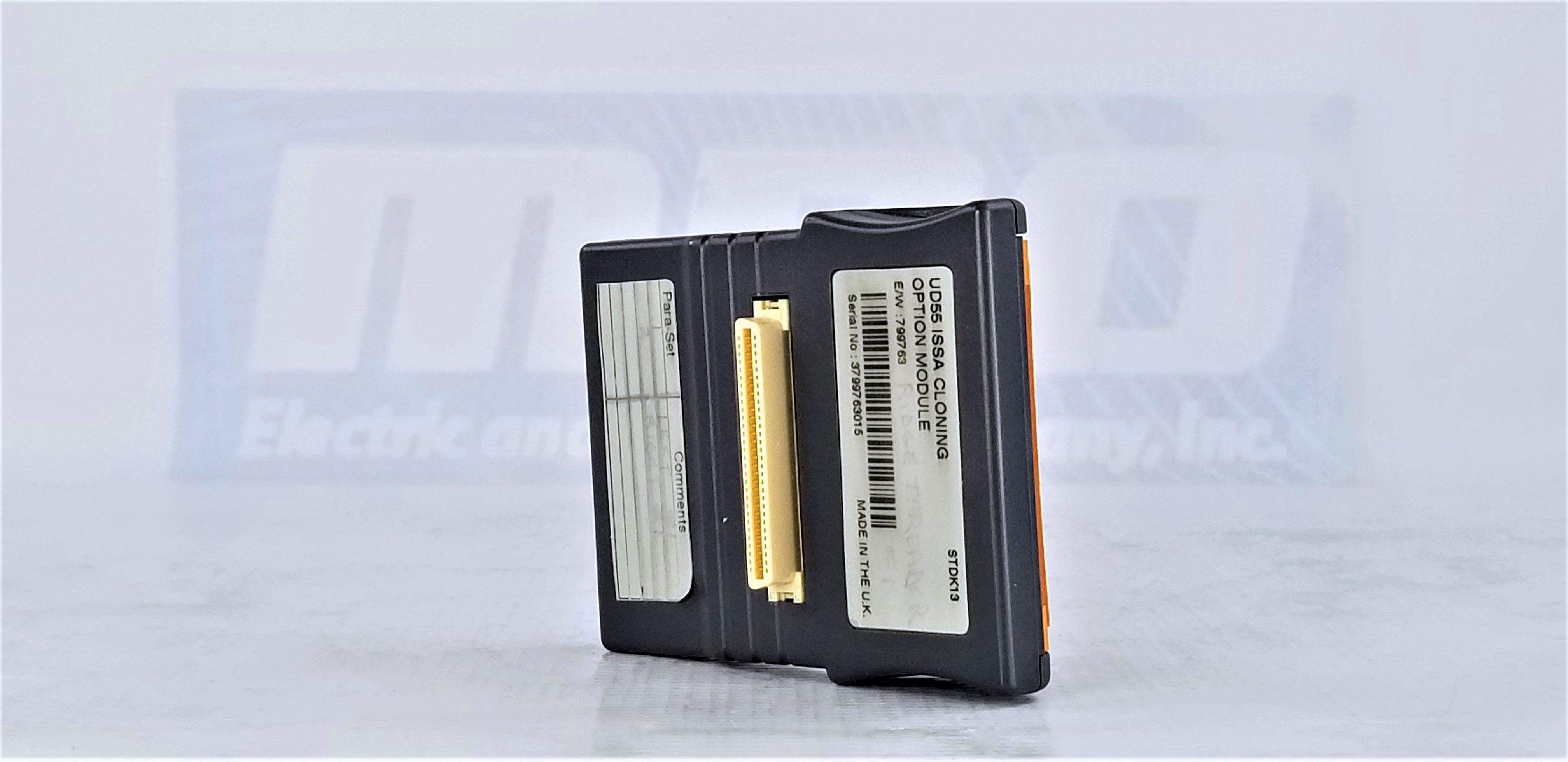

Control Techniques UD55

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Control Techniques
DESCRIPTION: Small Option Module Cloning Interface
PRODUCT TYPE INFO: Unidrive


1 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberUD55
ManufacturerControl Techniques
TypeOption Modules
Warranty2 Year

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed UD55 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this UD55 we also repair a wide range of other Control Techniques products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty UD55, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 10 hours and 18 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty UD55 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Control Techniques UD55 Overview

The UD55 Cloning Small Option Module can store up to eight parameters-sets which contain all the read–write parameters for a Drive, and include those in Menus 16 & 20, when applicable. These parameter sets can be individually recalled for loading onto the same or another drive.

The cloning of drives can only be performed when the operating mode (Open-loop, Closed-loop Vector, Servo or Regen) of the destination drive is the same as that of the source drive. The UD55 must be fitted in the small option module bay of the Unidrive. All connections to the drive are made by a multi-way connector. Connections from external equipment are made to a plug-in 16-way screw-terminal block on the option module. Some parameters have a profound effect on the operation of the Unidrive. They must not be altered without careful consideration of the impact on the controlled system. Measures must be taken to prevent unwanted changes due to error or tampering.

UD55 Installation

  1. Disconnect the AC supply from the Drive.
  2. Check that the exterior of the UD55 is not damaged, and that the multi-way connector is free from dirt and debris. Do not fit a damaged or dirty UD55 in a Unidrive.
  3. Remove the terminal cover from the Drive.
  4. If a small option module is already fitted in the Unidrive, grip the recesses at the ends of the module and pull the module out of the Drive. Keep the module for re-fitting.
  5. Position the multi-way connector on the rear of the UD55 over the connector in the Drive (see figure below), and press on the thumb pad to push the UD55 into place.

Saving Parameters

If the Drive trips and a trip code is displayed while this procedure is being followed, ensure that all the required parameters have been set up in the source Drive and that new parameter values have been saved. If a small option module was fitted in the Drive, its associated Menu 16 parameters will be copied to the UD55 in addition to the parameters in the other menus.

  1. Insert the UD55 in the source Drive (refer to Chapter 3, Inserting theUD55 in a Drive).
  2. Ensure terminal 30 of the Drive Signal connector is open-circuit so that the Drive does not become enabled when powered-up.
  3. On the UD55 connector, connect terminal 40 directly to terminal 41 to enable the save function (see Figure 2).
  4. Re-fit the terminal cover to the Drive.
  5. Connect the AC supply to the Drive.
  6. Decide which parameter-set number is to be used in the UD55. If a parameter-set already contains parameter values, these will be over-written without warning.
  7. Set parameter .00 (in any menu) at 300X, where X is the required parameter-set number (1 to 8).
  8. Press . The parameter values are now copied (saved) to the UD55.
    Saving takes approximately 5 seconds. When it has finished, parameter .00 returns to zero.
  9. It is recommended that parameter 11.38 is set at the number of the parameter-set (value of X in step 7) and the value of parameter 11.40 UD55 full parameter check sum noted, as a means of identifying the parameter-set at a later date.
  10. Disconnect the AC supply from the Drive.
  11. Remove the terminal cover.
  12. Disconnect the link between terminals 40 and 41 on the UD55 connector.
  13. Remove the UD55 from the Drive.
  14. If a small option module was previously fitted in the Drive, re-fit the module.
  15. Replace the terminal cover.
  16. The drive can now be used.

Control Techniques products are manufactured in United Kingdom and are designed for Metal production, paper processing, and material conveying usage. They come with a 2-year warranty from MRO Electric. We also carry Option Modules from other manufacturers such as Siemens and Yaskawa.

Contact Us Today For More Information About Control Techniques Products

Check out the rest of our Control Techniques product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like UD55, take a look at more from our Option Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our UD55 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
