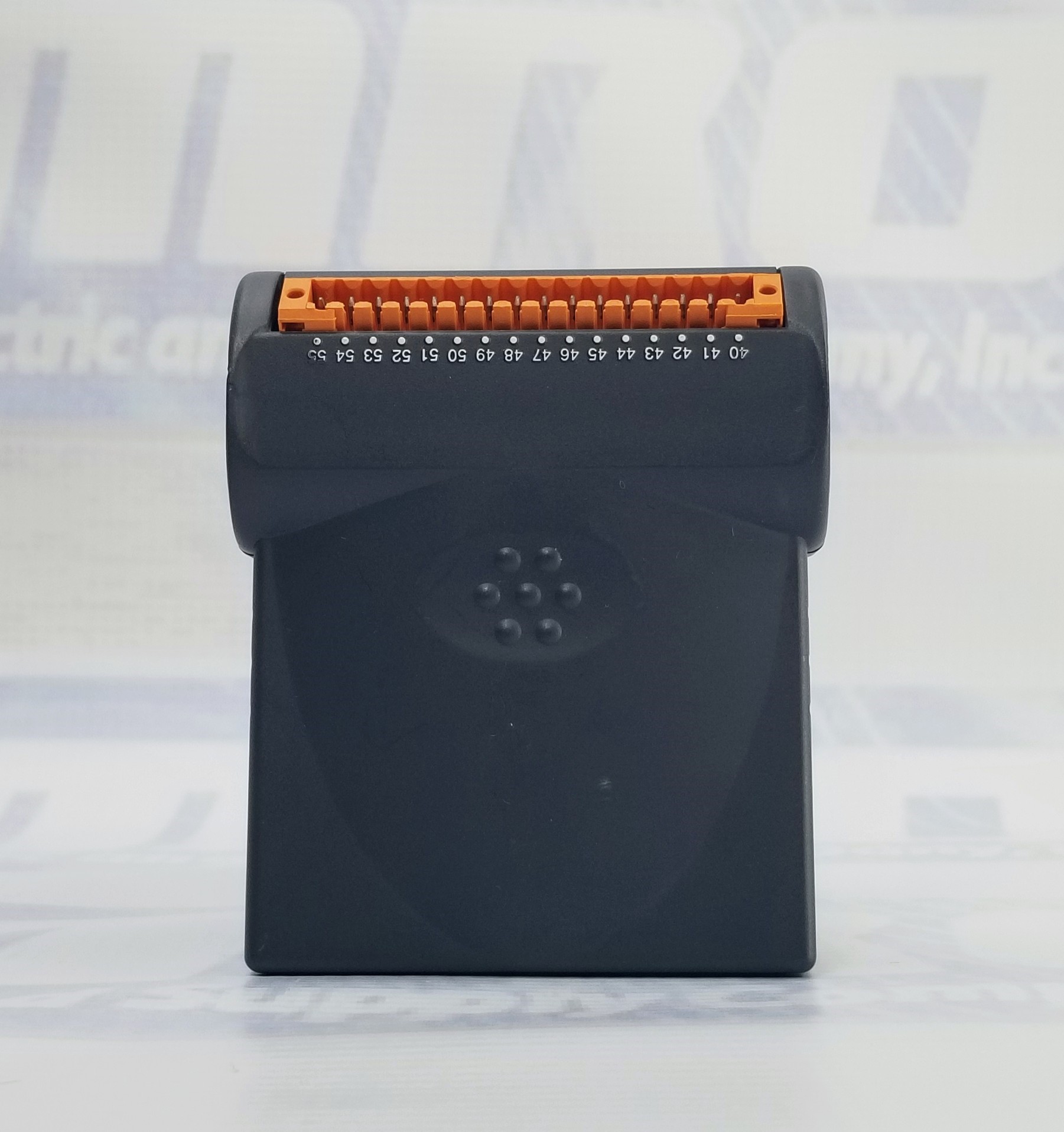

Control Techniques UD53

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Control Techniques

DESCRIPTION: Resolver Interface

PRODUCT TYPE INFO: Unidrive Small Option Module

14 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberUD53
ManufacturerControl Techniques
TypeOption Modules
Warranty2 Year
OptionResolver Interface
Option sizeSmall OM
OperationUnidrive

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed UD53 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this UD53 we also repair a wide range of other Control Techniques products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty UD53, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 6 hours and 41 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty UD53 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Control Techniques UD53 Overview

UD 53 Resolver Interface Module: Enhancing Unidrive Control Units

Introduction

The Control Techniques UD 53 resolver interface module stands as a compact yet crucial addition tailored for integration with the Unidrive control unit. Crafted in the United Kingdom, these modules cater to a spectrum of industries, including metal production, paper processing, and material conveying applications. Supported by a robust 2-year warranty from MRO Electric, these modules exemplify reliability in operation. Additionally, our inventory extends to encompass option modules from manufacturers such as Siemens and Yaskawa, ensuring a diverse array of solutions to meet varying needs.

Unidrive Applications

Designed specifically for the Unidrive, the UD 53 resolver interface module serves as an indispensable component for driving precision and efficiency in industrial settings. Boasting compatibility with resolvers, the UD 53 adheres to stringent specifications, including:

  • Input impedance exceeding 85Ω at 6kHz
  • Turns ratio configurations of either 3:1 or 2:1 for primary to secondary
  • Excitation voltage options of 6VRMS or 4VRMS

Operations for UD 53 Utilization

Operating at the forefront of position and speed feedback mechanisms, the UD 53 module assumes a pivotal role within the Unidrive ecosystem. When integrated into a drive unit, it functions exclusively within two distinct modes: closed-loop vector or closed-loop servo mode. These operational modes ensure precise control and feedback mechanisms, facilitating optimal performance in demanding industrial environments.

Simulator Encoder Outputs

The simulated encoder outputs generated by the UD 53 module yield Quadrature AB signals, intricately aligned with the line counts sourced from the encoder. Configurable for both frequency and direction, these outputs exhibit remarkable versatility, retaining vital positional information even amidst directional shifts. With the resolver serving as the default source for simulated encoder output, users can seamlessly leverage Encoder I, the primary encoder connected to the 15-way D-type on the drive, as an alternative source. Additionally, the module allows for convenient scaling of pulse counts per revolution by factors of 2, further enhancing adaptability and precision in feedback mechanisms.

Installation

Facilitating seamless integration, the UD 53 small option module finds its designated slot within the bay of the Unidrive, ensuring a snug fit and optimal performance. External equipment connections are facilitated through multiway connectors, streamlining the integration process. Leveraging a plugin 16-way screw terminal block on the UD 53 module, users can establish robust connections with external equipment, ensuring reliability and ease of installation.

FAQs

Q: What industries can benefit from the Control Techniques UD 53 resolver interface module?

A: The UD 53 module caters to a wide range of industries including metal production, paper processing, and material conveying applications, offering enhanced precision and efficiency.

Q: What operational modes does the UD 53 module support?

A: The UD 53 module operates exclusively in closed-loop vector or closed-loop servo mode, ensuring precise control and feedback mechanisms in industrial environments.

Q: How are external equipment connections made with the UD 53 module?

A: External equipment connections are facilitated through multiway connectors and a plugin 16-way screw terminal block on the UD 53 module, ensuring robust and reliable integration.

Contact Us Today For More Information About Control Techniques Products

Check out the rest of our Control Techniques product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like UD53, take a look at more from our Option Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our UD53 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
