XBTF034310

2-year Warranty

Same Day Shipping

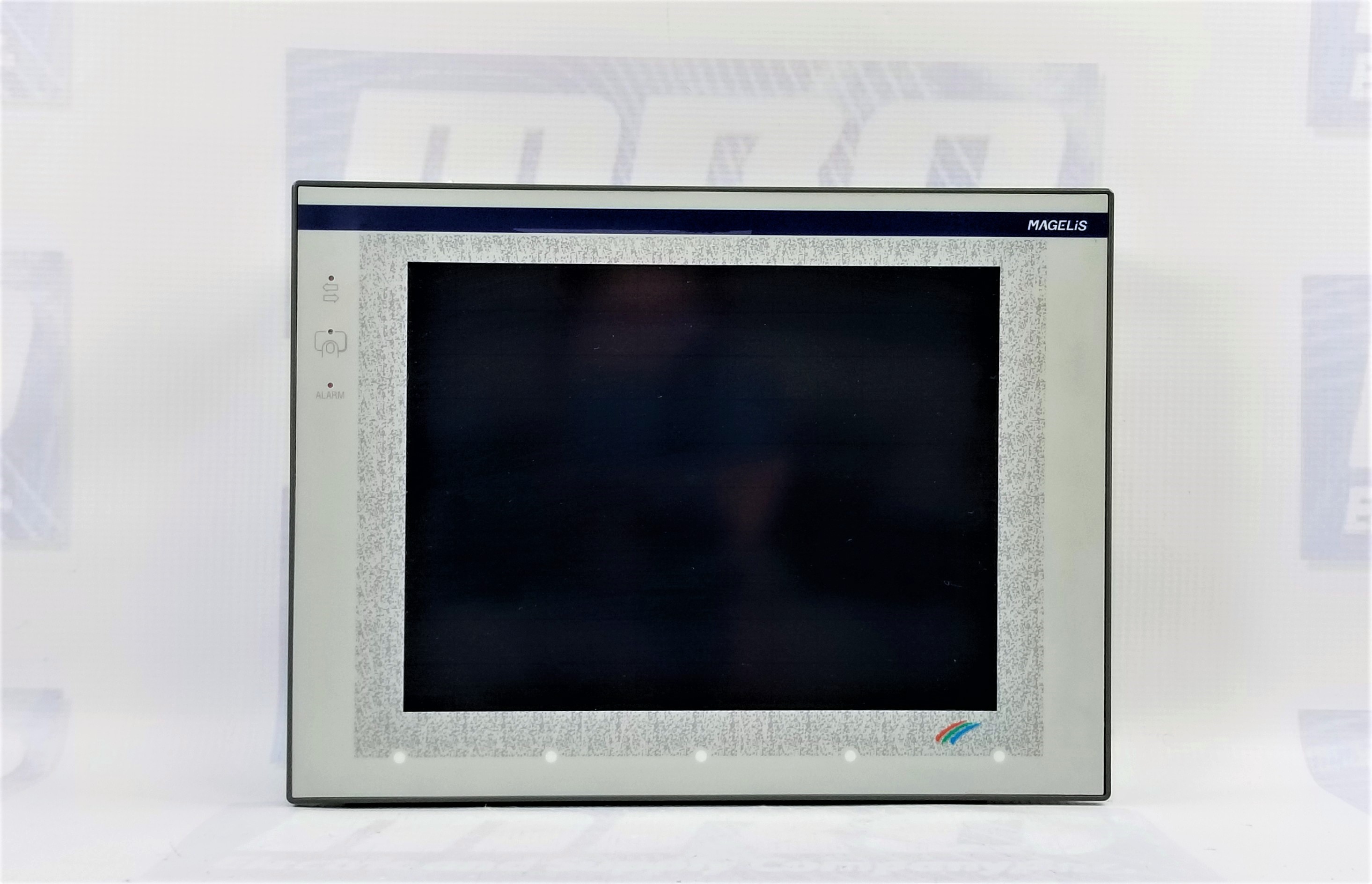

Schneider Electric XBTF034310

MODICON MAGELIS OPERATOR INTERFACE TOUCHSCREEN 10.4IN COLOR 24VDC
5/5
3 ratings

Select Condition

Refurbished

2 in stock

$4,455.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberXBTF034310
ManufacturerSchneider Electric
TypeHMIs
Warranty2 Year
ProductOPERATOR INTERFACE
Panel10.4" TOUCHSCREEN
Rated V24 VDC
Rated (W)35 W
ClassClass 1, Div 2

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed XBTF034310 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this XBTF034310 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty XBTF034310, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 10 hours and 18 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty XBTF034310 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric XBTF034310 Overview

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.

XBTF034310: Rugged Message Display Terminals Redefined

Communication

The XBTF034310 is a formidable member of the family of rugged message display terminals designed to meet a diverse array of needs by facilitating dialogue and simplifying data exchanges between programmable controllers and operators. From simple message readouts to user-programmable function keys, this terminal empowers operators to adjust machine parameters through direct and intuitive communications. Let's explore the key features that make the XBTF034310 a robust choice in industrial environments.

Industrial Design Excellence: Meeting Standards and Approvals

The XBTF034310 has been meticulously crafted with the industrial environment in mind, conforming to standards such as IEC 1131-2, EN 61131-2, UL 508, CSA C22-2 No. 14. Holding product approvals from UL, CSA, and CE, this display terminal ensures not only performance but also compliance with stringent safety and regulatory requirements.

Temperature Resilience: Adaptable to Varied Environments

Operating in temperatures ranging from 32 to +122 °F (0 to +50 °C) and storage temperatures from -40 to +158 °F (-40 to +70 °C), the XBTF034310 demonstrates its adaptability to a wide spectrum of operational conditions. The XBT-F variant extends the operational temperature range from 32 to +113 °F (0 to 45 °C), providing flexibility in deployment.

Robust Protection: Weathering the Elements

With a degree of protection rated at IP 65 (conforming to IEC 529) and classified as NEMA and UL Type 4 (according to UL 508), the XBTF034310 stands resilient against environmental challenges. Its robust mechanical characteristics include flush-mounted installation with 4 or 6 pressure-mounted bolts on panels 1 to 6 mm thick.

Materials and Mounting

The enclosure of the XBTF034310 is constructed with polyphenylene oxide containing 10% fiberglass (PPO GFN1 SE1), ensuring durability in demanding industrial settings. The keypad, coated with anti-UV (Autoflex EB AG) hardened polyester, enhances resistance to environmental elements. Mounting is simplified with spring mounting clips, allowing for fast and secure installation.

Powerful Electrical Performance: Supply and Consumption

Operating on a 24 Vdc power supply with voltage limits ranging from 18 to 30 Vdc, the XBTF034310 boasts a consumption of 10 W (XBTF variant with 3.5 W). Its electrical characteristics are engineered for efficiency, with a ripple not exceeding 25% and power consumption that aligns with operational demands.

Advanced Features for Enhanced Operation: Functionality and Connectivity

The XBTF034310 offers a plethora of advanced features to enhance its functionality and connectivity. From the log function, allowing the storage of application and/or alarm pages, to versatile transmission options via asynchronous serial links (RS 232C/RS 485/RS 422), this terminal sets a benchmark in operator-controller communication.

Visual Brilliance: Display and Graphics

Equipped with back-lit grayscale LCD screens of 5.7” or 9.5” and color resistive matrix STN options, the XBTF034310 provides vibrant and clear visual feedback. The display units support a variety of animated objects, alphanumeric variables, bar graphs, gauges, enumerated lists, and imported bitmaps, offering a dynamic and customizable user interface.

Security and Simulation: Ensuring Operational Integrity

Ensuring operational integrity, the XBTF034310 provides three levels of password security for easy configuration and operation. The terminal simulation in software allows the verification of application programs with a PC before PLC/terminal installation, streamlining the deployment process.

Extensive Application Pages: Tailored for Industrial Needs

With over 300 application, alarm, help, and recipe pages, the XBTF034310 provides a comprehensive platform for industrial applications. Customizable front panel designs, optional field bus communications for high-speed networking, and alarm acknowledgment with prioritization and color attributes further enhance its adaptability.

Certifications and Markings: Assuring Quality and Compliance

The XBTF034310 is a testament to quality and compliance. UL-listed, CSA-certified, and marked with CE, it stands as a reliable and certified solution for industrial operators and system integrators.

In conclusion, the XBTF034310 redefines rugged message display terminals, embodying versatility, resilience, and advanced functionality. From its industrial design to robust mechanical characteristics, electrical efficiency, and advanced features, it stands as a stalwart in industrial environments where precision and reliability are paramount.
