XBTF034610

2-year Warranty

Same Day Shipping

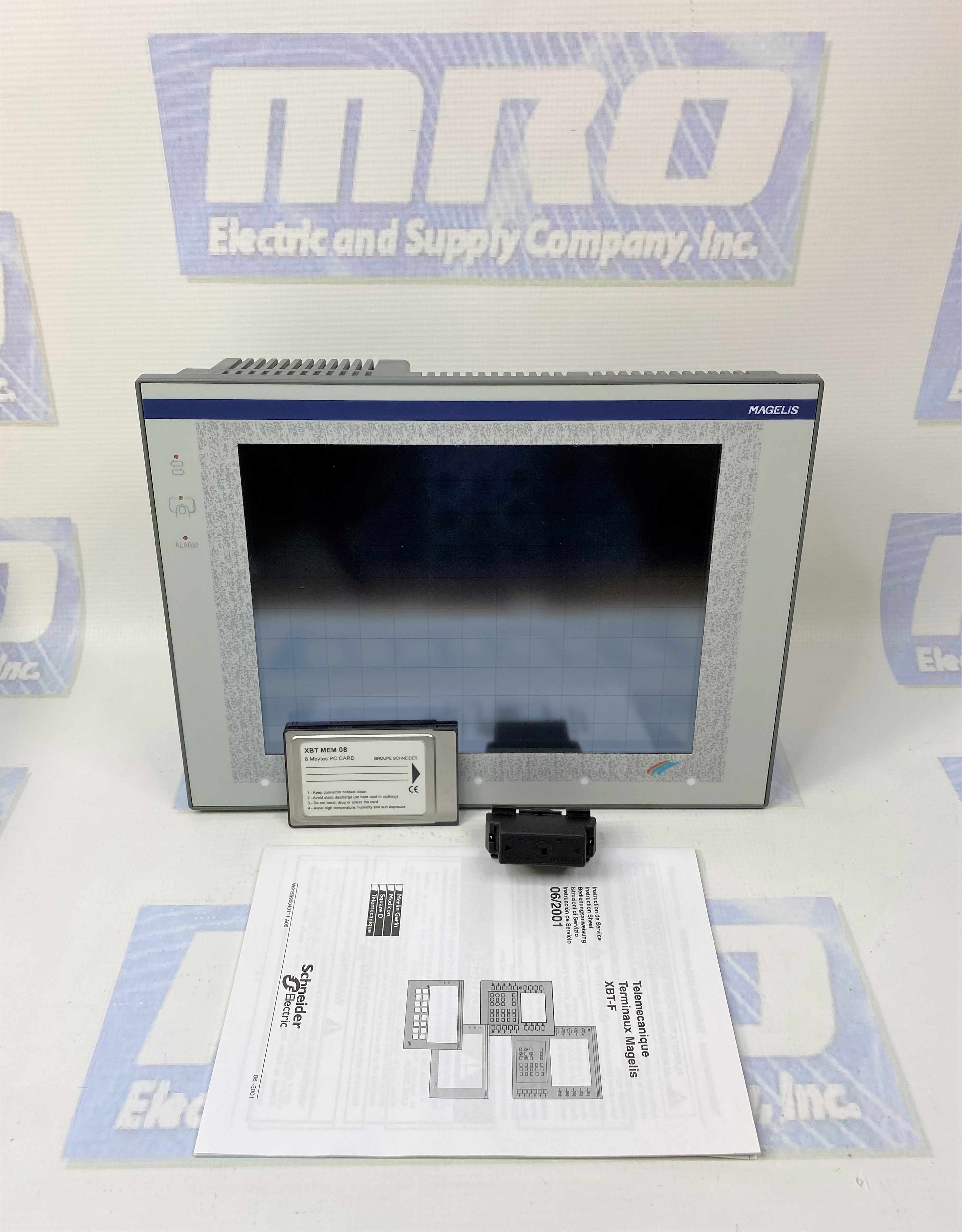

Schneider Electric XBTF034610

MODICON MAGELIS OPERATOR INTERFACE 10IN TOUCHSCREEN W/ETHERNET
5/5
1 rating

Select Condition

Refurbished

1 in stock

$3,297.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberXBTF034610
ManufacturerSchneider Electric
TypeHMIs
Warranty2 Year
CategoryOPERATOR INTERFACE
RangeMAGELIS SERIES
Verticle 10 IN
PanelTOUCHSCREEN
CommunicationW/ETHERNET
Rated W35 W
Power supply24 VDC

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed XBTF034610 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this XBTF034610 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty XBTF034610, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 9 hours and 15 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty XBTF034610 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric XBTF034610 Overview

The Magelis range, specifically the XBT-F (or TXBT-F) model, is a series of graphic terminals developed by Schneider Electric. These terminals are designed for man-machine communication and provide a range of features and functionalities for controlling and monitoring industrial processes. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.

Features

The XBT-F 10" terminal is equipped with a resistive matrix touchscreen pad, which allows users to interact with the device. The touchscreen has 10x13 touchscreen zones, providing a responsive and intuitive user interface. The terminal features an LCD screen with a size of 10.4 inches and a resolution of 640x480 pixels. It supports a TFT color display capable of rendering 256 colors, ensuring clear and vibrant visuals.

Compatibility

One notable aspect of the XBT-F 10" terminal is its compatibility with downloadable protocols. This feature allows the terminal to communicate with various control systems, including Schneider, Allen Bradley, Modicon, Omron, Siemens, and more. It enables seamless integration with different PLCs, expanding its versatility and applicability in different industrial environments.

The terminal also includes a printer output, allowing users to generate hard copies of data or reports as needed. This feature is useful for documentation, record-keeping, and analyzing system performance. Additionally, the XBT-F 10" terminal supports man-machine communications dialog, facilitating the exchange of information between the terminal and the control system.

Function

One of the primary functions of the XBT-F 10" terminal is to display data from the control system. It provides real-time monitoring of critical parameters, enabling operators to have a comprehensive overview of the industrial process. Moreover, the terminal offers notification of control system faults, ensuring prompt detection and response to any issues or abnormalities.

Communication

The XBT-F 10" terminal features indicator lights for communication control, touchscreen pad pressed, and alarm indication. These indicators enhance the user experience by providing visual feedback and status information at a glance.

To enhance flexibility and ease of use, the XBT-F 10" terminal supports a removable PCMCIA card. This card contains all the necessary information for running the terminal and simplifying installation and setup processes. It also allows for easy maintenance and updates, as the card can be replaced or updated as needed.

Software

The terminal can be programmed using XBT-L1000 software, providing a comprehensive development environment for creating man-machine dialog applications. The software enables the customization of application pages, alarms, and help pages based on specific requirements. It offers features such as dialog architecture definition, data exchange volume specification, and terminal/PLCs network architecture configuration.

In summary, the Magelis range, exemplified by the XBT-F 10" terminal, offers a powerful and user-friendly solution for man-machine communication in industrial settings. With its touchscreen interface, downloadable protocol compatibility, data display capabilities, and alarm notifications, it empowers operators to effectively control and monitor industrial processes. The terminal's flexibility, programmability, and integration capabilities make it a valuable tool for a wide range of applications across different industries.
