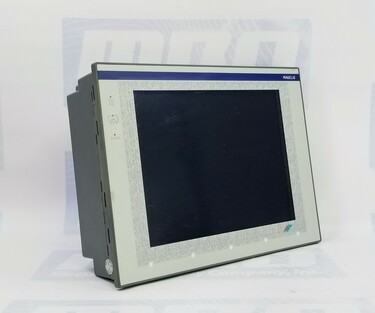

XBTF034510

XBTF034510

Rated 5/5 on 3 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: OPERATOR INTERFACE 10.4 TOUCH SCREEN 24VDC 35WATT

PRODUCT TYPE INFO: Modicon Magelis

3 in stock
Ships Today

Free Shipping
2 Year warranty

Categories

HMI
Part NumberXBTF034510
ManufacturerSchneider Electric
SeriesModicon Magelis
Model #XBTF034510
TypeHMI
Warranty2 Year
PanelTouch Screen
Processor Pentium
Display LCD 10.4 in (264 mm)
Supply Voltage24 VDC
Pixel 640*480 pixels
Voltage limit18 to 30 VDC
Power consumption35 W
Operating Temp+32 to +113 °F (0 to 45 °C)
Humidity0 to 85%
Storage temp 4 to +140 °F
Degree of protectionIP65 per IEC529

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed XBTF034510 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this XBTF034510 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty XBTF034510, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 4lbs

Want it shipped today?

  • Order within the next 3 hours and 5 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty XBTF034510 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Schneider Electric XBTF034510 Overview

The Magelis Series module XBTF034510 is a graphic unit manufactured by Schneider Electric with a family of XBT-F / TXBT-F operator interface modules. The Schneider Electric is a 10.4-inch touch screen panel module. What are some of the primary operations of the XBTF034510 operator interface? The main responsibilities of this unit include displaying data from the control system, modifying the parameters of the control system, and controlling the system using discrete commands.

Features of the Schneider Electric XBTF034510

The Magelis Series XBT-F includes a 10.4 inch TFT color screen with 256 colors which deliver 640 x 480 pixels. It contains 12 static function keys, ten dynamic function keys, and system / alphanumeric keys. Protocols can be downloaded, and it maintains output printing capabilities.

The touchscreen pad possesses a resistive matrix of 10 x 13 touch zones. It is powered by 24 VDC.The voltage limits for the Magelis XBTF03451 are 18 to 30 VDC with 5% ripple and 35 W consumption.

Memory for the Magelis XBTF03451

A PCMCIA card holds application + protocol 30 to 300 pages of applications, alarms, and help according to the memory card in use. The Magelis XBTF03451 carries 1000 alarm log events. It has 125 recordings and 5000 values maximum of 255 form pages. It also has 512 classic alarm bits plus 100 diagnostic alarm bits.

The XBT-F 10.4” development hardware kit includes; 1 serial port operating at 19200 baus (speed required when transferring).

Communication features of the Schneider Electric XBTF03451

There are several key features of the Schneider Electric operator interface module XBTF03451 that display its benefits. The dynamic function keys help navigate through the various dialog pages and help you maintain control of the control system. On the right side of the XBTF03451 panel, you will find the removable PCMCIA card slot. The card includes all information needed for running the terminal.On the right side of the terminal, beneath the PCMCIA card slot, the terminal programming connection with the XBT-L1000. The connection for communication with the control system is located on the bottom right of the operator interface module. It is compatible with Schneider, Allen Bradley, Modicon, Omron, and Siemens PLCs.  The key panel is located on the front of the operator interface and is used to modify control system parameters. The connection for alarms, terminal references, and print-out forms printing is on the bottom left of the panel module. On the front left side of the panel is where the static function keys are located. The static function keys are used for operator input to the control system. The static function keys are also used to navigate between the various dialog pages. In the center of the left front side is the keystroke enabled indicator light. The top left front of the operator interface is where the communication status indicator light is located.

Variable fields

The access variables for the XBT-F module include a single word, double word, floating word, and word bits accessible variables, no matter the protocol. For the MODBUS, MODBUS PLUS, and TCP/IP MODBUS protocols, other types of variables are also available.

Extension tasks

Additional functions are available to add on top of the basic XBT-F functions on a TXBT terminal. The extra functions are known as Extension tasks.

The Schneider Electric Magelis Series module XBTF034510 comes with a two-year warranty.

Product Description

The XBTF034510 is a OPERATOR INTERFACE 10.4 TOUCH SCREEN 24VDC 35WATT that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-magelis line come with a 2 year warranty from MRO Electric. We also carry HMI from other manufacturers such as Modicon and ABB.
