XBTGT5230

2-year Warranty

Same Day Shipping

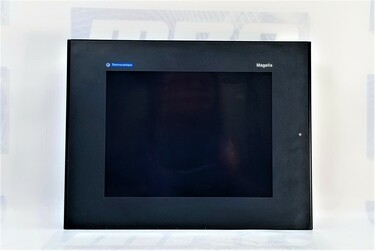

Schneider Electric XBTGT5230

MODICON MAGELIS ADVANCED TOUCHSCREEN PANEL 640 X 480 PIXELS VGA - 10.4" - STN LCD - 24 V DC
5/5
1 rating

Select Condition

Refurbished

3 in stock

$2,891.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberXBTGT5230
ManufacturerSchneider Electric
TypeHMIs
Warranty2 Year
RangeHarmony XBTGT
ComponentAdvanced touchscreen panel
Display4096 colours
Display size10.4 inch
Display typeBacklit colour STN LCD
Resolution640 x 480 pixels VGA
ProcessorCPU RISC
Frequency266 MHz
SoftwareConfiguration software
Software (designation)Vijeo Designer
Memory512 kB SRAM back up of data lithium battery 32 MB flash EPROM application memory
Touch panelAnalogue
Contrast8 levels via touch panel
Character fontTaiwanese (traditional Chinese) ASCII (European characters) Korean Japanese (ANK, Kanji)
Supply voltage24 V DC
Supply Max19.2…28.8 V
Signaling1 LED (green or orange)
ClockBuilt in
Data storage1 Compact Flash card >= 1 GB
CommunicationDevice Net, Profibus DP
Port Ethernet10BASE-T/100BASE-TX
MountingFlush mounting
Width 12.32 in
Height 9.41 in
Depth 2.20 in
StandardsUL 1604 CSA C22.2 No 14 IEC 61000-6-2 EN 61131-2 UL 508 FCC Class A
MarkingCE
Ambient Temp32…122 °F

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed XBTGT5230 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this XBTGT5230 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty XBTGT5230, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 3lbs

Want it shipped tomorrow?

  • Order within the next 21 hours and 44 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty XBTGT5230 for credit when ordering from MRO Electric

What is the part number for the backlight replacement bulb of a XBTGT series HMI?

  • Backlight bulbs are no longer a replaceable part and the device must be serviced.
MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric XBTGT5230 Overview

The XBTGT5230 is an advanced touchscreen panel manufactured as part of the Harmony XBTGT product range by Schneider Electric. This panel features a 10.4-inch backlit color STN LCD with a resolution of 640 x 480 pixels VGA. It offers a display size that provides ample screen real estate for monitoring and controlling applications. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.

Features

The XBTGT5230 panel supports up to 4096 colors, allowing for vibrant visual representation. It is equipped with a resistive analog touch panel, providing precise and responsive touch input. The touch-sensitive zone has a resolution of 1024 x 1024, ensuring accurate interaction with the display.

The panel utilizes the Harmony operating system and is powered by a CPU RISC processor running at a frequency of 266 MHz. It has 512 kB SRAM for data backup using a lithium battery and 32 MB flash EPROM for application memory storage. The configuration of the panel is done using the Vijeo Designer software, which offers a user-friendly interface for easy setup and customization.

Connection

In terms of connectivity, the XBTGT5230 panel provides various integrated connection options. It has an RJ45 Ethernet port for TCP/IP communication, allowing seamless integration into networked systems. The panel also features serial communication ports, including an RJ45 COM2 port supporting RS485 communication with a maximum speed of 187.5 kbit/s and a male SUB-D 9 COM1 port supporting RS232C/RS422/RS485 communication with a maximum speed of 115.2 kbit/s.

Input/Output

Additionally, the panel offers multiple digital inputs and outputs, as well as USB type A master ports for data transfer. It supports removable screw terminal blocks for power supply, digital inputs and outputs, audio output, and more. This allows for easy and convenient wiring and connection of peripherals.

Design

The XBTGT5230 panel is designed to withstand various environmental conditions. It has a resistance to electrostatic discharge of up to 6 kV, complying with IEC 61000-4-2 level 3 standards. The panel has a rated supply voltage of 24 V DC, with a supply voltage limit of 19.2 to 28.8 V DC. The inrush current is rated at 30 A, and the power consumption is approximately 26 W.

Installation

For installation, the panel requires a cut-out space of 301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm. It can be flush-mounted using spring clips or screw clamps. The front panel is made of aluminum alloy, while the enclosure material is PPT. The panel is CE-marked and complies with various standards, including UL 1604, CSA C22.2 No 14, IEC 61000-6-2, EN 61131-2, UL 508, and FCC Class A.

Conditions

In terms of environmental conditions, the XBTGT5230 panel can operate within a temperature range of 32 to 122 °F (0 to 50 °C) and can be stored within a temperature range of -4 to 140 °F (-20 to 60 °C). It has a relative humidity range of 10 to 90% without condensation and can withstand operating altitudes of up to 6561.68 ft (2000 m). The panel is rated IP20 for the rear panel and IP65 for the front panel, offering protection against dust and water ingress.

In summary, the XBTGT5230 advanced touchscreen panel is a feature-rich and versatile solution for monitoring and controlling applications. With its high-resolution display, intuitive touch interface, and robust construction, it provides a reliable and user-friendly interface for industrial automation systems.
