XBTGT5340

2-year Warranty

Same Day Shipping

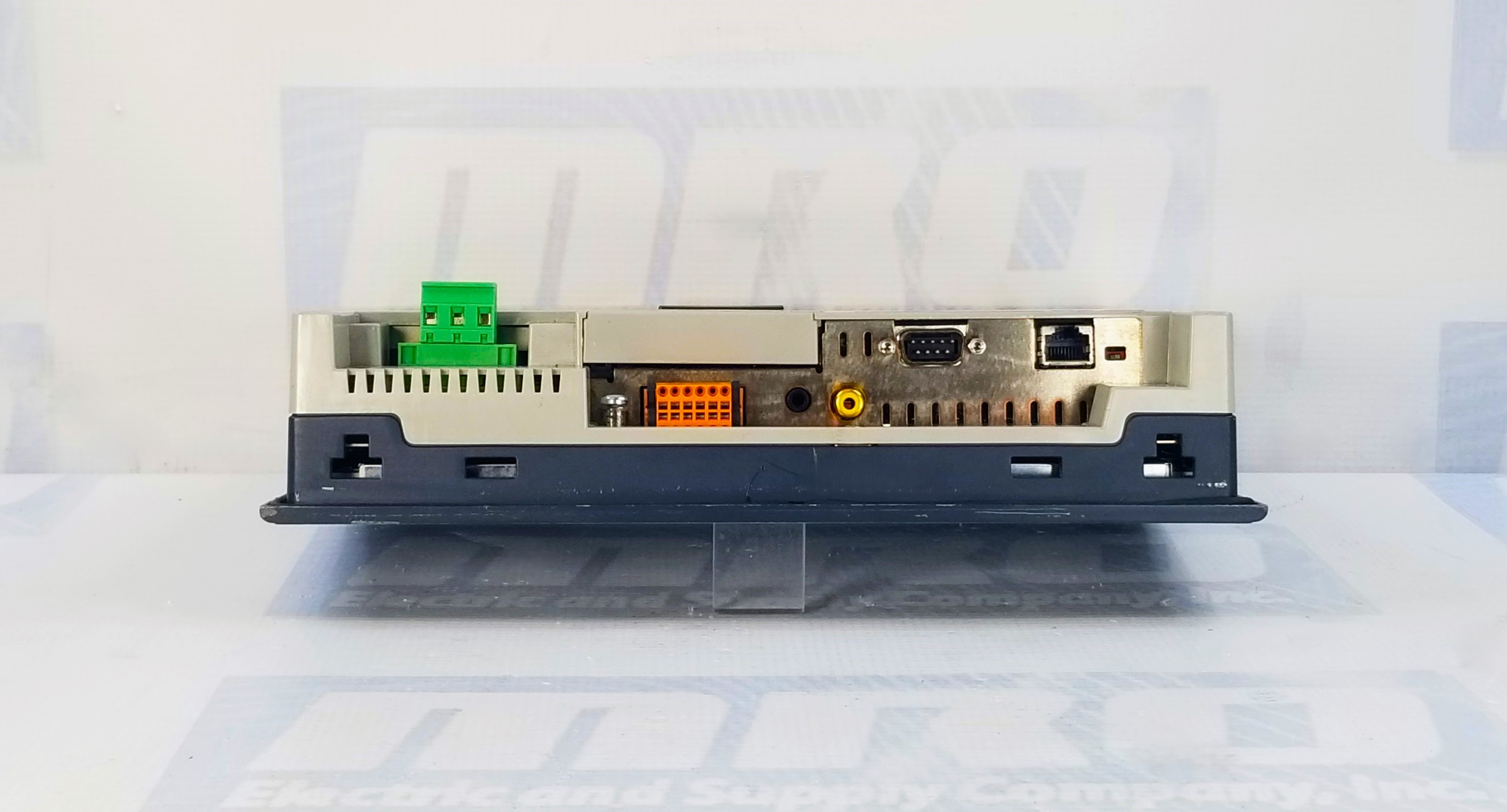

Schneider Electric XBTGT5340

MODICON MAGELIS ADVANCED TOUCHSCREEN PANEL - 640 X 480 PIXELS VGA - 10.4 - 24 V
5/5
2 ratings

1 Available


Free Shipping

2 Year warranty

Part NumberXBTGT5340
ManufacturerSchneider Electric
TypeHMIs
Warranty2 Year
Product weight1.8 kg
Range of productMagelis XBTGT
Product or component typeAdvanced touchscreen panel
Display typeBacklit colour TFT LCD
Display colour65536 colours
Display resolution640 x 480 pixels VGA
Display size10.4 inch
Software typeConfiguration software
Software designationVijeo Designer
Operating systemMagelis
Processor nameCPU RISC
Processor frequency266 MHz
Memory descriptionBack up of data SRAM 512 kB lithium battery
Integrated connection typeCOM2 serial link RJ45 RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s)
Resistance to electrostatic discharge6 kV IEC 61000-4-2 level 3
Cut-out dimensions259 (+ 1/- 0) x 201 (+ 1/- 0) mm
Touch sensitive zone1024 x 1024
Touch panelAnalogue
Brightness8 levels via touch panel
Contrast8 levels via touch panel
Character fontTaiwanese (traditional Chinese)
Chinese (simplified Chinese)
Korean
Japanese (ANK, Kanji)
ASCII (European characters)
[Us] rated supply voltage24 V DC
SupplyExternal source
Supply voltage limits19.2...28.8 V
Inrush current<= 30 A
Power consumption30 W
Local signalling1 LED (green or orange) for normal operation or backlighting faulty
Number of pagesLimited by internal memory capacity
Downloadable protocolsFIPWAY Telemecanique Modicon
Modbus Plus Telemecanique Modicon
Modbus TCP Telemecanique Modicon
Modbus Telemecanique Modicon
Third party protocols Mitsubishi Melsec
Third party protocols Omron Sysmac
Third party protocols Rockwell Automation Allen-Bradley
Third party protocols Siemens Simatic
Uni-TE Telemecanique Modicon
Realtime clockBuilt-in
Memory type1 slot for Compact Flash card (128 MB to 1 GB)
Use of slotFor 1 fieldbus communication card (Device Net, Profibus DP)
Port Ethernet10BASE-T/100BASE-TX
Product mountingFlush mounting
Fixing modeBy 4 spring clips
By 4 screw clamps
Enclosure materialPPT
MarkingCE
Width270.5 mm
Height212.5 mm
Depth57 mm

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed XBTGT5340 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this XBTGT5340 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty XBTGT5340, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 5lbs

Want it shipped tomorrow?

  • Order within the next 18 hours and 3 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty XBTGT5340 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric XBTGT5340 Overview

Schneider Electric XBTGT5340 HMI

The Schneider Electric XBTGT5340 stands at the forefront of Human-Machine Interface (HMI) technology, offering advanced features and intuitive interaction for industrial automation applications. As part of the Magelis XBTGT product range, this touchscreen panel redefines user experience in industrial control systems.

Advanced Touchscreen Panel:

Designed as an advanced touchscreen panel, the XBTGT5340 features a vivid backlit TFT LCD capable of rendering 65536 colors. With a high-resolution display of 640 x 480 pixels VGA and a generous 10.4-inch size, operators can visualize critical data with clarity and precision.

Powerful Processing and Memory:

Powered by a CPU RISC processor clocked at 266 MHz, the XBTGT5340 ensures swift and responsive performance. Its memory configuration includes a backup of data SRAM with 512 kB lithium battery support, safeguarding vital data integrity even during power loss.

Versatile Connectivity Options:

Equipped with integrated connection types such as COM2 serial link RJ45 RS485 and Siemens MPI, the XBTGT5340 facilitates seamless communication with various industrial devices and systems. Additionally, it supports Ethernet connectivity (10BASE-T/100BASE-TX), enabling networked operation for enhanced data exchange.

Enhanced Touch Panel Features:

The XBTGT5340 boasts an analog touch panel with a touch-sensitive zone of 1024 x 1024, providing precise and reliable touch input. Operators can adjust brightness and contrast levels directly via the touch panel interface, ensuring optimal visibility in diverse operating environments.

Robust and Reliable Design:

Built to withstand the demands of industrial environments, the XBTGT5340 exhibits resistance to electrostatic discharge up to 6 kV (IEC 61000-4-2 level 3). Its enclosure material, made of PPT, offers durability and protection against mechanical stress and environmental factors.

Flexible Mounting Options:

The XBTGT5340 supports flush mounting and offers multiple fixing modes, including four spring clips or four screw clamps, for secure installation. With cut-out dimensions of 259 x 201 mm, it seamlessly integrates into control panels and equipment enclosures.

Comprehensive Software Support:

Vijeo Designer software offers intuitive tools for HMI development and makes configuration and customization easy. The XBTGT5340 is compatible with various protocols.

FAQs about the Schneider Electric XBTGT5340 HMI:

What is the Schneider Electric XBTGT5340 HMI?

The Schneider Electric XBTGT5340 is an advanced Human-Machine Interface (HMI) device for industrial automation applications. It offers intuitive touchscreen interaction and advanced features for controlling and monitoring industrial processes.

What are the key features of the XBTGT5340 HMI?

The XBTGT5340 features a 10.4-inch backlit color TFT LCD with a resolution of 640 x 480 pixels VGA, a CPU RISC processor with a frequency of 266 MHz, versatile connectivity options including Ethernet and serial links, and robust construction with resistance to electrostatic discharge.

What software is used to configure the XBTGT5340 HMI?

The XBTGT5340 HMI is configured using Vijeo Designer software, which provides intuitive tools for designing and customizing the user interface and functionality of the HMI.

How is the XBTGT5340 HMI powered?

The XBTGT5340 HMI is powered externally using a 24 V DC supply. It operates within a 19.2 to 28.8 V voltage range and consumes up to 30 W of power.

What are the mounting options for the XBTGT5340 HMI?

The XBTGT5340 HMI supports flush mounting and can be secured using either four spring clips or four screw clamps. It has cut-out dimensions of 259 x 201 mm, making it easy to integrate into control panels and enclosures.

What industries can benefit from using the XBTGT5340 HMI?

The XBTGT5340 HMI suits various industries, including manufacturing, automotive, pharmaceuticals, food and beverage. It can control and monitor processes such as production lines, machine automation, and facility management.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.
