XBTGT7340

2-year Warranty

Same Day Shipping

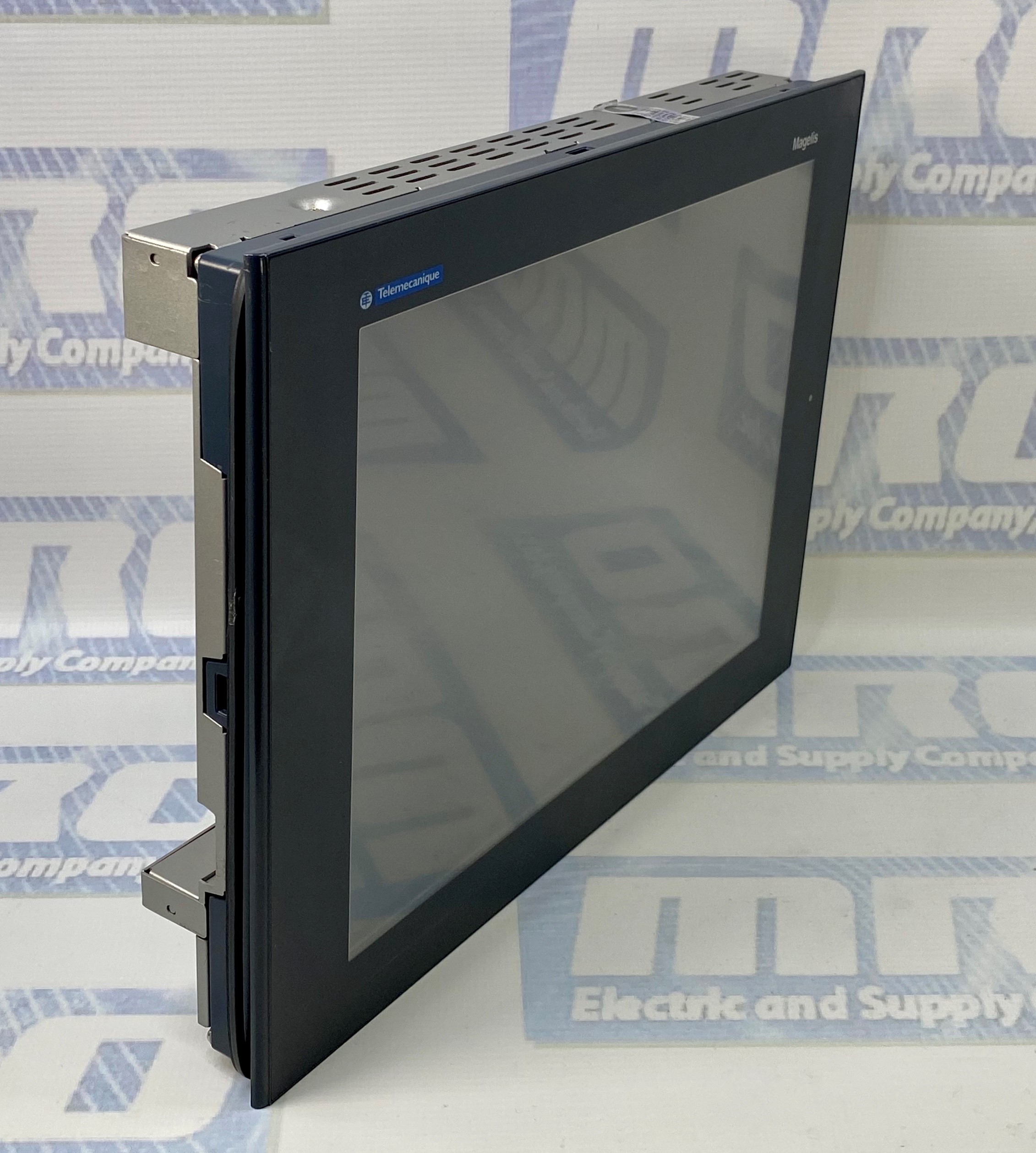

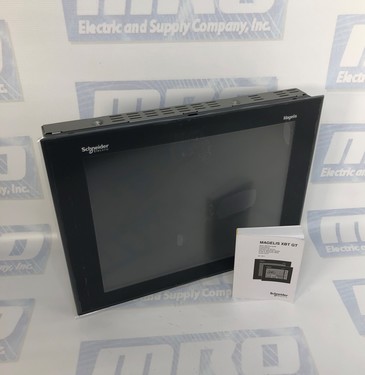

Schneider Electric XBTGT7340

MODICON MAGELIS ADVANCED TOUCHSCREEN PANEL
5/5
3 ratings

Select Condition

Refurbished

2 in stock

$6,913.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberXBTGT7340
ManufacturerSchneider Electric
TypeHMIs
Warranty2 Year
Product weight3 kg
Range of productMagelis XBTGT
Product or component typeAdvanced touchscreen panel
Display typeBacklit colour TFT LCD
Display colour65536 colours
Display resolution1024 x 768 pixels XGA
Display size15 inch
Software typeConfiguration software
Software designationVijeo Designer
Operating systemMagelis
Processor nameCPU RISC
Processor frequency266 MHz
Memory descriptionBack up of data SRAM 512 kB lithium battery
Integrated connection typeCOM2 serial link RJ45 RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s)
Resistance to electrostatic discharge6 kV IEC 61000-4-2 level 3
Cut-out dimensions383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm
Touch sensitive zone1024 x 1024
Touch panelAnalogue
Brightness8 levels via touch panel
Character fontASCII (European characters)
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
Korean
Taiwanese (traditional Chinese)
[Us] rated supply voltage24 V DC
SupplyExternal source
Supply voltage limits19.2...28.8 V
Inrush current<= 30 A
Power consumption42 W
Local signalling1 LED (green or orange) for normal operation or backlighting faulty
Number of pagesLimited by internal memory capacity
Downloadable protocolsFIPWAY Telemecanique Modicon
Modbus Plus Telemecanique Modicon
Modbus TCP Telemecanique Modicon
Modbus Telemecanique Modicon
Third party protocols Mitsubishi Melsec
Third party protocols Omron Sysmac
Third party protocols Rockwell Automation Allen-Bradley
Third party protocols Siemens Simatic
Uni-TE Telemecanique Modicon
Realtime clockBuilt-in
Memory type1 slot for Compact Flash card (128 MB to 1 GB)
Use of slotFor 1 fieldbus communication card (Device Net, Profibus DP)
Port Ethernet10BASE-T/100BASE-TX
Product mountingFlush mounting
Fixing modeBy 4 spring clips
By 8 screw clamps
Enclosure materialAluminium alloy
MarkingCE
Width395 mm
Height294 mm
Depth60 mm

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed XBTGT7340 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this XBTGT7340 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty XBTGT7340, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 7lbs

Want it shipped tomorrow?

  • Order within the next 22 hours and 39 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty XBTGT7340 for credit when ordering from MRO Electric

Can I get a replacement screen for the Magelis XBTGT7340 LCD?

  • No, unfortunately there is no replacement screen for the Magelis XBTGT7340. You can contact MRO Electric or learn here about our repair services to fix the broken screen.

What can I replace the XBTGT7340 with?

  • You can replace the XBTGT7340 with the following: If video playback is not required: HMIG3U + HMIDT732 display (if video playback is not needed) If video playback is required: HMIG5U2 + HMIDT732 display Vijeo Designer V6.2 SP3.1 or greater is needed for the HMIG3U / HMIG5U Vijeo Designer V6.2 SP7 or greater is needed for the HMIG5U2

What is the maximum power dissipation for the XBTGT7340?

  • 35.3W (with 12W external load) is the max power dissipation of the XBTGT7340.

What is the part number for the power connector of the XBTGT7340?

  • The power connector part number for the XBTGT5/6/7 range is XBTZGPWS2.

Can I connect the XBTGT7340 to a second display?

  • Unfortunately, the XBTGT7340 cannot be connected to a second display.
MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric XBTGT7340 Overview

Schneider Electric Magelis XBTGT7340 Advanced Touchscreen Panel: Enhanced Human-Machine Interaction

The Schneider Electric Magelis XBTGT7340 is a cutting-edge Human-Machine Interface (HMI) designed to provide advanced touchscreen capabilities for seamless interaction and monitoring in industrial applications. Manufactured by Schneider Electric, this device belongs to the Magelis XBTGT range, offering a 15-inch backlit color TFT LCD with a resolution of 1024 x 768 pixels (XGA).

Display and Interface:

The XBTGT7340 boasts a vibrant display with 65,536 colors, ensuring clarity and precision in visualizing critical data. The 15-inch size provides an expansive view, and the touchscreen functionality, with a touch-sensitive zone of 1024 x 1024, enhances user-friendly navigation. The analog touch panel enables versatile input, supporting ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Korean, and Taiwanese (traditional Chinese) character fonts.

Hardware Specifications:

Weighing 3 kg, this advanced touchscreen panel features a CPU RISC processor with a frequency of 266 MHz, providing robust performance. The memory configuration includes a backup of data SRAM with 512 kB and a lithium battery, ensuring data integrity. The device supports a Compact Flash card slot (128 MB to 1 GB) for additional memory and functionality. The XBTGT7340 operates on a 24 V DC external power supply, with voltage limits between 19.2 and 28.8 V and an inrush current of <= 30 A.

Connectivity and Communication:

The HMI is equipped with multiple communication options, including a COM2 serial link with RJ45 RS485 supporting up to 187.5 kbit/s and compatibility with Siemens MPI (187.5 kbits/s). It features a 10BASE-T/100BASE-TX Ethernet port for network connectivity. The device supports various protocols, such as FIPWAY Telemecanique Modicon, Modbus Plus Telemecanique Modicon, Modbus TCP Telemecanique Modicon, Modbus Telemecanique Modicon, and third-party protocols from Mitsubishi Melsec, Omron Sysmac, Rockwell Automation Allen-Bradley, Siemens Simatic, and Uni-TE Telemecanique Modicon.

Industrial Durability:

Designed for industrial environments, the XBTGT7340 is resistant to electrostatic discharge up to 6 kV (IEC 61000-4-2 level 3). The aluminum alloy enclosure ensures durability, and the HMI is suitable for flush mounting. The device's dimensions are 395 mm (width) x 294 mm (height) x 60 mm (depth), with cut-out dimensions of 383.5 (+1/-0) x 282.5 (+1/-0) mm.

Power Consumption and Signaling:

The XBTGT7340 consumes 42 W of power and features local signaling through one LED (green or orange) for normal operation or backlighting faults.

Additional Features:

The HMI includes a built-in real-time clock, enabling time-sensitive applications. It supports 8 levels of brightness adjustment via the touch panel, offering adaptability to varying lighting conditions. The device allows the installation of Fieldbus communication cards (Device Net, Profibus DP) in its Compact Flash card slot.

Maintenance and Mounting:

Maintenance involves routine cleaning of the touchscreen with a soft, lint-free cloth. The HMI can be flush-mounted using either 4 spring clips or 8 screw clamps.

FAQ

Q1: What is the Schneider Electric Magelis XBTGT7340, and what does it offer in terms of functionality?

A1: The XBTGT7340 is an advanced touchscreen panel designed by Schneider Electric for Human-Machine Interface (HMI) applications. It provides an intuitive interface for interaction and monitoring in industrial settings.

Q2: What are the key features of the XBTGT7340's display?

A2: The XBTGT7340 features a 15-inch backlit color TFT LCD with a resolution of 1024 x 768 pixels (XGA) and supports 65,536 colors, ensuring clear and precise visualization.

Q3: What character fonts does the XBTGT7340 support on its touch panel?

A3: The touch panel supports ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Korean, and Taiwanese (traditional Chinese) character fonts.

Q4: What are the hardware specifications of the XBTGT7340?

A4: The device is equipped with a CPU RISC processor operating at 266 MHz, 512 kB SRAM with lithium battery backup, and a Compact Flash card slot for additional memory (128 MB to 1 GB).

Q5: How is the XBTGT7340 powered, and what are its voltage specifications?

A5: The HMI operates on a 24 V DC external power supply, with voltage limits between 19.2 and 28.8 V. The inrush current is <= 30 A.

Q6: What communication options does the XBTGT7340 offer?

A6: The HMI supports communication via COM2 serial link with RJ45 RS485, Ethernet (10BASE-T/100BASE-TX), and various protocols including Modbus, FIPWAY Telemecanique Modicon, and third-party protocols from Mitsubishi, Omron, Rockwell Automation, Siemens, and more.

Q7: Is the XBTGT7340 suitable for industrial environments?

A7: Yes, the HMI is designed for industrial use, resistant to electrostatic discharge up to 6 kV (IEC 61000-4-2 level 3), and housed in an aluminum alloy enclosure for durability.

Q8: What are the dimensions and mounting options of the XBTGT7340?

A8: The dimensions of the device are 395 mm (width) x 294 mm (height) x 60 mm (depth). It can be flush-mounted using either 4 spring clips or 8 screw clamps.

Q9: How is routine maintenance performed on the XBTGT7340?

A9: Routine maintenance involves cleaning the touchscreen with a soft, lint-free cloth. Additionally, periodic backups of the HMI configuration and data are recommended for quick recovery in case of failures.

Q10: Does the XBTGT7340 include a real-time clock, and what are its additional features?

A10: Yes, it has a built-in real-time clock. Additional features include 8 levels of brightness adjustment, local signaling through an LED, and support for Fieldbus communication cards in the Compact Flash card slot.
