140AVI03000

2-year Warranty

Same Day Shipping

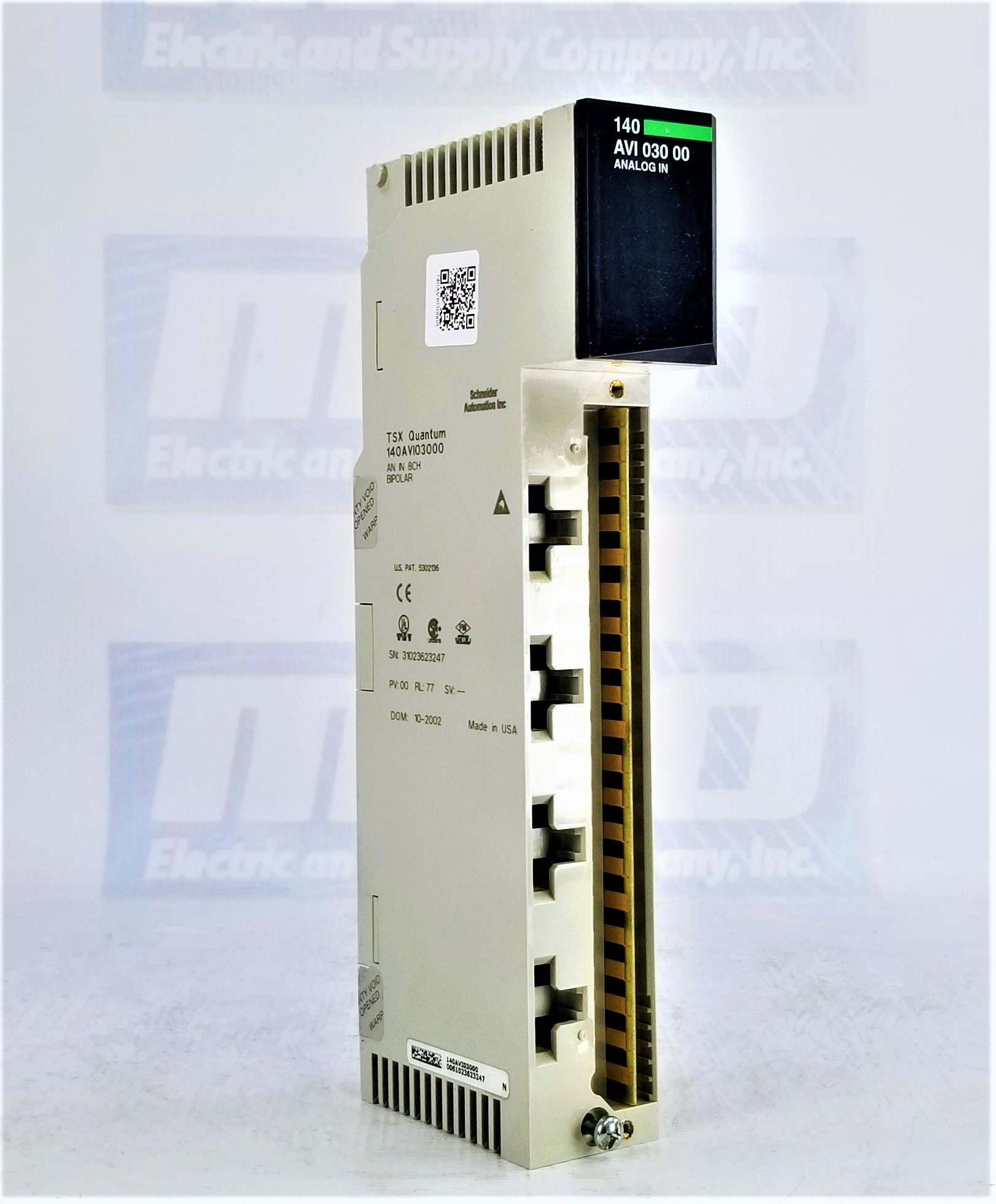

Schneider Electric 140AVI03000

MODICON QUANTUM SERIES ANALOG INPUT MODULE MODICON QUANTUM - 8 I MULTIRANGE
5/5
5 ratings

Select Condition

Refurbished

6 in stock

New

6 in stock

$691.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number140AVI03000
ManufacturerSchneider Electric
TypeI/O Modules
Model #140-AVI-030-00
Warranty2 Year
Module formatStandard
Type of filterSingle pole low pass - 3 dB at 847 Hz +/- 20 %
Analogue input number8
Input typeDifferential
Addressing requirement9 input words
Analogue input typeUnipolar voltage 0...5 V
Unipolar voltage 0...10 V
Unipolar current 0...20 mA
Bipolar voltage +/- 5 V
Bipolar voltage +/- 10 V
Bipolar current 20 mA
Analogue input resolution16 bits 20 mA
16 bits 0...5 V
16 bits 0...20 mA
16 bits 0...10 V
16 bits +/- 5 V
16 bits +/- 10 V
Linear measuring range(Input range) x 1.024 mA
(Input range) x 1.024 V
Absolute maximum input50 V DC
25 mA
Input impedance250 MOhm +/- 0.03 %
> 20 Ohm voltage
Absolute accuracy error+/- 0.05 % of full scale maximum
+/- 0.03 %
Linearity error+/- 0.008 %
Accuracy drift according to temperature<= 0.004 % of full scale /°C
+/- 0.0015 % of full scale/°C
Common mode rejection> -80 dB 60 Hz
Isolation between channels and bus750 V DC
500 Vrms AC for 60 s
Isolation between channels135 Vrms AC
200 V DC
Update time10 ms
Fault typeOvertacking scale 1...5 V
Broken wire 4...20 mA
MarkingCE
Local signalling8 LEDs red channel fault
8 LEDs green channel is turned on
1 LED red external fault
1 LED green bus communication is present (Active)
Bus current requirement280 mA
Power dissipation in W2.2 W

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140AVI03000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140AVI03000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140AVI03000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 10 hours and 53 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140AVI03000 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 140AVI03000 Overview

Schneider Electric 140AVI03000 I/O Module

Schneider Electric proudly presents the 140AVI03000, an I/O module designed for precision and reliability in industrial applications. This module, featuring the model number 140-AVI-030-00, comes backed by a solid 2-year warranty, offering peace of mind to users in various industrial sectors.

Module Format: Standard

The 140AVI03000 adheres to a standard module format, ensuring compatibility and ease of integration within existing systems and setups.

Key Technical Specifications:

  • Analogue Input Number: 8
    • This module offers eight analogue input channels for versatile data acquisition.
  • Input Type: Differential
    • Employing differential input, it enhances signal integrity and noise immunity.
  • Addressing Requirement: 9 Input Words
    • To accommodate its various input channels, the module requires nine input words for addressing.
  • Analogue Input Types:
    • Unipolar Voltage 0...5 V
    • Unipolar Voltage 0...10 V
    • Unipolar Current 0...20 mA
    • Bipolar Voltage +/- 5 V
    • Bipolar Voltage +/- 10 V
    • Bipolar Current 20 mA
    • This extensive range of input types caters to diverse measurement needs.
  • Analogue Input Resolution: 16 Bits
    • With a 16-bit resolution, the module ensures high-precision data conversion for all supported input types.
  • Linear Measuring Range (Input Range):
    • Each input type boasts a linear measuring range adjusted as per the input range.
  • Absolute Maximum Input:
    • It can handle up to 50 V DC and 25 mA input, ensuring robust performance even under challenging conditions.
  • Input Impedance:
    • The module offers a high input impedance of 250 MOhm for voltage inputs, maintaining signal fidelity.
  • Accuracy and Linearity:
    • Accuracy is maintained with a low error of +/- 0.05% of full scale maximum, while linearity error is limited to +/- 0.008%.
  • Common Mode Rejection:
    • With a common mode rejection of > -80 dB at 60 Hz, it minimizes interference.
  • Isolation:
    • It provides substantial isolation, with 750 V DC between channels and the bus, and 135 Vrms AC/200 V DC between channels.
  • Update Time: 10 ms
    • This module ensures timely data processing with a fast 10 ms update time.
  • Fault Handling:
    • It efficiently detects overranging scale (1-5 V) and broken wire (4-20 mA) faults.
  • Bus Communication:
    • The module features local signaling with eight red LEDs indicating channel faults, eight green LEDs for active channels, and LEDs for external faults and bus communication presence.
  • Bus Current Requirement: 280 mA
    • It has a moderate bus current requirement of 280 mA.
  • Power Dissipation:
    • The module's power dissipation is not specified in the provided information.

Marking and Compliance:

The 140AVI03000 module bears the CE marking, indicating compliance with European Union safety and environmental standards.The Modicon 140AVI03000 is an analog input module designed for use with the Quantum automation platform. It is designed to facilitate the interface between the PLC and analog devices such as temperature sensors, pressure transducers, and flow meters.

Guide & Manual:

Installation:

  1. Ensure that the PLC is powered off.
  2. Insert the module into the appropriate slot of the Quantum backplane.
  3. Secure the module using the provided screws or clips.
  4. Connect the analog devices to the module using shielded twisted-pair cables.

Configuration:

  1. Using EcoStruxure Control Expert (formerly Unity Pro), create a new hardware configuration or modify an existing one.
  2. Add the 140AVI03000 module to the configuration.
  3. Define the range and type for each channel.
  4. Assign memory addresses to each channel.

Diagnostics: The module's status LED can help diagnose issues. A steady green LED indicates that the module is operating correctly, while a flashing or red LED indicates a fault.

FAQs:

Is the module hot-swappable?

  • No, always power off the PLC before inserting or removing the module.

Can I use the module in any slot of the Quantum backplane?

  • Yes, the module is compatible with all standard Quantum backplane slots.

What type of cable should I use for the analog connections?

  • Use shielded twisted-pair cables to reduce electrical noise interference.

Is there a calibration procedure for this module?

  • The module is factory-calibrated, but it's good practice to periodically check its accuracy using a known reference voltage.

Where can I get the latest drivers for the module?

  • Drivers and updates can be downloaded from Schneider Electric's official website.
