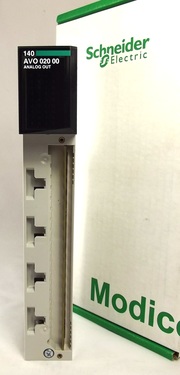

140AVO02000C

140AVO02000C

Rated 5/5 on 1 review

Rate this product


Analog Output Module Modicon Quantum - 4 O
Available

2 Year warranty

Categories

Part Number140AVO02000C
ManufacturerSchneider Electric
SeriesModicon Quantum
Model #140AVO02000C
TypeIO Modules
Warranty2 Year
Module formatStandard
Analogue output number4
Addressing requirement4 output words
Analogue output range0...5 V >= 500 Ohm unipolar voltage
0...10 V >= 1000 Ohm unipolar voltage
+/- 5 V >= 500 Ohm bipolar voltage
+/- 10 V >= 1000 Ohm bipolar voltage
Analogue output resolution12 bits
Analogue output current-10...10 mA
Source resistance0.1 Ohm
Cable length<= 400 m
Absolute accuracy error+/- 0.15 % of full scale at 25 °C
Linearity+/- 1 LSB
Accuracy drift according to temperature0.007 % of full scale/°C maximum bipolar
0.005 % of full scale/°C maximum unipolar
0.004 % of full scale/°C bipolar
0.003 % of full scale/°C unipolar
Isolation between channels500 V for 1 minute 47...63 Hz AC
Isolation between channels and bus780 V for 1 minute AC
Update time3 ms
Setting time700 µs to +/- 0.1 % of the final value maximum
Bus current requirement700 mA
Power dissipation in W<= 4.5 W
Associated fuse rating0.063 mA 3 AG fast blow 250 V
MarkingCE
Local signalling4 LED red channel fault
4 LED green channel is turned on
1 LED red external fault
1 LED green bus communication is present (Active)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140AVO02000C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140AVO02000C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140AVO02000C, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 19 hours and 50 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140AVO02000C for credit when ordering from MRO Electric
