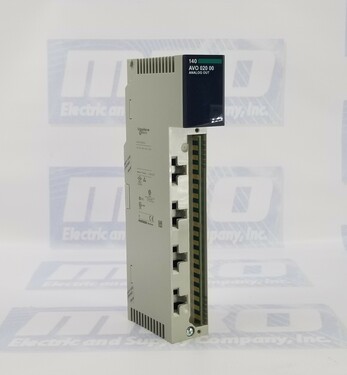

140AVO02000

140AVO02000

Rated 5/5 on 3 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: Analog Output Module

PRODUCT TYPE INFO: Modicon Quantum - 4 O

18 in stock
Ships Today

Free Shipping
2 Year warranty

Categories

Part Number140AVO02000
ManufacturerSchneider Electric
SeriesModicon Quantum
Model #140AVO02000
TypeIO Modules
Warranty2 Year
Module formatStandard
Analogue output number4
Addressing requirement4 output words
Analogue output range0...5 V >= 500 Ohm unipolar voltage
0...10 V >= 1000 Ohm unipolar voltage
+/- 5 V >= 500 Ohm bipolar voltage
+/- 10 V >= 1000 Ohm bipolar voltage
Analogue output resolution12 bits
Analogue output current-10...10 mA
Source resistance0.1 Ohm
Cable length<= 400 m
Absolute accuracy error+/- 0.15 % of full scale at 25 °C
Linearity+/- 1 LSB
Accuracy drift according to temperature0.007 % of full scale/°C maximum bipolar
0.005 % of full scale/°C maximum unipolar
0.004 % of full scale/°C bipolar
0.003 % of full scale/°C unipolar
Isolation between channels500 V for 1 minute 47...63 Hz AC
Isolation between channels and bus780 V for 1 minute AC
Update time3 ms
Setting time700 µs to +/- 0.1 % of the final value maximum
Bus current requirement700 mA
Power dissipation in W<= 4.5 W
Associated fuse rating0.063 mA 3 AG fast blow 250 V
MarkingCE
Local signalling4 LED red channel fault
4 LED green channel is turned on
1 LED red external fault
1 LED green bus communication is present (Active)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140AVO02000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140AVO02000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140AVO02000, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 6 hours and 54 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140AVO02000 for credit when ordering from MRO Electric

Additional Information

Schneider Electric 140 AVO 020 00 Overview

The 140 AVO 020 00 is an analog out module manufactured by Schneider Electric made for use with the Modicon Quantum automation platform. The 140 AVO 020 00 is a mixed voltage module that allows for output voltages in mixed modes and at different levels. The levels can be accessed through the use of jumpers on the field wiring connector. The Modicon analog output 140 AVO 020 00 has four channels. Please note this module is not HART compatible.

To address product communication the Schneider Electric 140 AVO 020 00 presents six main features. The component identification, located on the top front of the Modicon 140 AVO 020 00 module, includes the module number, module description, and color code. The color code for the 140 AVO 020 00 is green. The LED display is located below the identification information. The fuse cutouts are beneath the LED on the inside of the Modicon module 140 AVO 020 00. A field wiring terminal may be inserted into the front of the module. The field terminal strip module features a removable door and label and is a separate order item. A customer identification label may be placed inside the removable door in the field terminal strip.

Features of the Schneider Electric 140 AVO 020 00

The Schneider Electric 140 AVO 020 00 is a 4 channel output unit with a bus current of 700 mA, the power dissipation of 4.5 W (max). I/O map = 4 output words, with a wiring length of 400 m (max). It has a 12-bit resolution. The bipolar voltages for this module is +/- 10 VDC (Min. load resistance = 1 kohms) +/- 5 VDC (Min. load resistance = 500 ohms). The unipolar voltages are 0 ...10 VDC (Min. load resistance = 1 kohms) 0 ... 5 VDC (Min. load resistance = 500 ohms). The output current is +/- 10 mA max. (any range).

LED indicators on the Schneider Electric 140 AVO 020 00

Four LED lights (1…4) display green ("ON") on the front panel during normal operation. If the display lights do not display green “ON” this is an indication that active communication has stopped for some reason. Previously set panel software configuration will determine output values. As long as the LED 1…4 remains green, “ON”, the output levels are predetermined. When there is a stoppage, the master override levels become output on all channels (1…4).

Wiring for the Modicon 140 AVO 020 00 analog module

No outputs are generated when the green LED lights are off. Output may be present if the master override is in use. How is the master override connected? The mater override is connected through an internal relay contact to the output. This occurs when the Modicon 140 AVO 020 00 is not active. If the module is connected to an outside connection, a 1/16 fused fuse allows master override input. It must be connected to the commons of the channel if the module’s master override is not connected to an external source. The override relay transition time for the master override is generally 2ms. If the master override inputs are not tied to a system common, another option is an external supply. The external supply must include a source impedance of < 200Ω. When the input channels for the module are in use, they cannot float.

The Modicon analog output module 140 AVO 020 00 by Schneider Electric comes with a two-year warranty.
