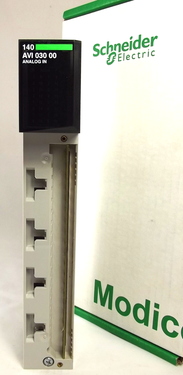

140AVI03000C

140AVI03000C

Analog Input Module Modicon Quantum - 8 I Multirang
Available - call for stock

Free 2 Day Shipping
2 year warranty

Categories

Part Number140AVI03000C
ManufacturerSchneider Electric
SeriesModicon Quantum
Weight1lb
TypeIO Modules
Warranty2 year
Module formatStandard
Type of filterSingle pole low pass - 3 dB at 847 Hz +/- 20 %
Analogue input number8
Input typeDifferential
Addressing requirement9 input words
Analogue input typeUnipolar voltage 0...5 V
Unipolar voltage 0...10 V
Unipolar current 0...20 mA
Bipolar voltage +/- 5 V
Bipolar voltage +/- 10 V
Bipolar current 20 mA
Analogue input resolution16 bits 20 mA
16 bits 0...5 V
16 bits 0...20 mA
16 bits 0...10 V
16 bits +/- 5 V
16 bits +/- 10 V
Linear measuring range(Input range) x 1.024 mA
(Input range) x 1.024 V
Absolute maximum input50 V DC
25 mA
Input impedance250 MOhm +/- 0.03 %
> 20 Ohm voltage
Absolute accuracy error+/- 0.05 % of full scale maximum
+/- 0.03 %
Linearity error+/- 0.008 %
Accuracy drift according to temperature<= 0.004 % of full scale /°C
+/- 0.0015 % of full scale/°C
Common mode rejection> -80 dB 60 Hz
Isolation between channels and bus750 V DC
500 Vrms AC for 60 s
Isolation between channels135 Vrms AC
200 V DC
Update time10 ms
Fault typeOvertacking scale 1...5 V
Broken wire 4...20 mA
MarkingCE
Local signalling8 LEDs red channel fault
8 LEDs green channel is turned on
1 LED red external fault
1 LED green bus communication is present (Active)
Bus current requirement280 mA
Power dissipation in W2.2 W
