MANUFACTURER: Schneider Electric
DESCRIPTION: Unity Hot Standby Processor With Multimode Ethernet - 1024 Kb - 266 Mhz
PRODUCT TYPE INFO: Modicon Quantum
|Electrical connection||1 connector, connector type: RJ45 for connecting Ethernet network|
|1 connector, connector type: RJ45 for connecting Modbus bus|
|1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network|
|Product or component||Unity processor|
|Mode of transmission||Multimode|
|Clock frequency||266 MHz|
|Number of slots||10|
|Number of racks||2 - local rack(s)|
|Number of distributed I/O station||63 station(s) - 1 rack(s) - 3 distributed network(s)|
|Number of remote I/O station||31 - 2 remote rack(s)|
|Discrete I/O number||8000 inputs, 8000 outputs - distributed - per network|
|31744 inputs, 31744 outputs - remote|
|Unlimited (26 slots max) - local - forbidden in Hot Standby application|
|Analogue I/O number||Unlimited (26 slots max) - local - forbidden in Hot Standby application|
|500 inputs, 500 outputs - distributed - per network|
|1984 inputs,1984 outputs - remote|
|Application specific I/O||Accurate time stamping|
|High-speed interrupt inputs|
|Number of optional modules||6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)|
|Maximum number of connections||Unlimited (AS-Interface) - local|
|6 (Profibus DP) - local|
|6 (Modbus Plus) - local|
|6 (Ethernet TCP/IP) - local|
|4 (AS-Interface) - remote|
|2 (AS-Interface) - distributed|
|1 (Modbus) - RS232/485 Modbus/ASCII|
|Integrated connection type||1 Ethernet TCP/IP|
|1 Modbus Plus|
|Memory description||Internal RAM 1024 kB - 512 kB for data|
|Expandable 8 MB - file storage with PCMCIA card|
|Expandable 7168 kB - program with PCMCIA card|
|Switch function||Key switch memory port on/off|
|Application structure||4 auxiliary tasks - forbidden in Hot Standby application|
|32 timer interrupt tasks - forbidden in Hot Standby application|
|128 interrupt tasks - forbidden in Hot Standby application|
|128 I/O interrupt tasks - forbidden in Hot Standby application|
|1 periodic fast task - forbidden in Hot Standby application|
|1 cyclic/periodic master task|
|Execution time per instruction||0.4...0.5 Âµs floating points|
|0.0525...0.075 Âµs Boolean|
|0.045...0.06 Âµs on word|
|0.045...0.06 Âµs on fixed-point arithmetic|
|Execution time for 1 K instruction||10.28 100 % Boolean|
|10.07 65 % Boolean and 35 % numerical|
|System overhead||1 ms - master task|
|0.2 ms - fast task|
|Bus current requirement||2500 mA|
|Local signalling||1 LED red for Ethernet collision|
|1 LED green for Ethernet activity (COM)|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140CPU67160 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140CPU67160 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140CPU67160, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 140CPU67160 for credit when ordering from MRO Electric

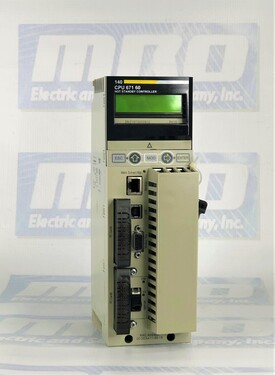

The Modicon 140CPU67160 is a Quantum Hot Standy CPU (HSBY) manufactured by Schneider Electric. This unity hot-standby processor is from the Modicon Quantum automation platform series. It comes equipped with multimode ethernet connectivity. It has a clock frequency of 266 MHz and two local racks. The application-specific I/O includes a counter, accurate time stamping, high-speed interrupt outputs, and a serial link. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.
There are several features on the Modicon 140CPU67160. It has an LCD coved by a lens cover. Found behind the lens cover, are the key switch, the battery, and the reset button. Standard on this CPU is the LCD with 2 lines and 16 characters. It also features a changeable backlight state and contrast. A keypad is available with five keys mapped to hardware addresses. There are two arrow keys that each include an LED. A life-saving feature of this module is automated backlight handling. A keypress detection by the keypad driver will automatically turn on the backlight. It will auto turn off after 5 min. If an error is detected the backlight stays on. This unit has a Modbus port and a USB port, and PCMCIA slots. There are Ethernet communication indicators and an Ethernet port for fiber communication for HSBY CPUs). It features a battery and a reset button.
The Schneider Electric 140CPU67160 is manufactured for mounting on a backplane.
The 140CPU67160 has a variety of connectivity options, including one USB port, two distributed AS interfaces, four remote AS interfaces, six local Modbus Plus connections, six local Profibus DP connections, one Modbus connector, and six local Ethernet TCP/IP connections. It features six optional modules, including Ethernet, Modbus, Modbus Plus, Profibus, DP, and Sy/Max. With a range of modules, this processor is highly adaptable and flexible, able to be used to meet your requirements and specifications.
Another component of this processor is its memory capacity. It has internal RAM of 1024 kB and 512 kB specifically for data. Additionally, the 140CPU67160 has an expandable file storage capacity of 8 MB with a PCMCIA card. It also has an expandable program storage capacity of 7168 kB with a PCMCIA card. When you have several files and programs to store, this processor has you covered and keeps your data and information safe. This processor has a convenient key switch that allows you to easily turn the memory function on and off.
The key switch, an added security feature, carries memory protection. There are two positions for the key switch: locked and unlocked. When it is in the unlocked position, all system menu operations function and variable module parameters can be used or modified by the operator by way of the LCD and keypad. Memory protection is off when the key switch is unlocked. When the key switch is in the locked position, you do not have access to the menu operations, and the module parameters are in read-only mode. Memory protection is on when the key switch is locked.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at email@example.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 140CPU67160, take a look at more from our CPUs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 140CPU67160 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
