| Part Number | 140CPU65260C |
| Manufacturer | Schneider Electric |
| Series | Modicon Quantum |
| Model # | 140CPU65260C |
| Type | PLC |
| Warranty | 2 Year |
| Electrical connection | 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus |
| network | |
| 1 connector, connector type: RJ45 for connecting Modbus bus | |
| 1 connector, connector type: RJ45 for connecting Ethernet network | |
| 1 connector, connector type: MT-RJ (fiber optic) for interconnecting primary and | |
| secondary PLCs (hot standby architecture) | |
| Product or component type | Unity processor |
| Clock frequency | 266 MHz |
| Number of slots | 10 |
| 16 | |
| 2 | |
| 4 | |
| 6 | |
| Number of racks | 2 - local rack(s) |
| Number of distributed I/O station | 63 station(s) - 1 rack(s) - 1 Modbus Plus network(s) |
| Number of remote I/O station | 31 - 2 S908 remote I/O rack(s) |
| 31 - 2 ethernet Quantum remote I/O rack(s) | |
| 31 - 2 ethernet X80 remote I/O rack(s) |
| Discrete I/O number | Unlimited (31 drops of 28 slots max) - ethernet remote I/O |
| 31744 inputs, 31744 outputs - S908 remote I/O | |
| 8000 inputs, 8000 outputs - distributed - per network Modbus Plus | |
| Unlimited (26 slots max) - local | |
| Analogue I/O number | Unlimited (26 slots max) - local |
| Unlimited (31 drops of 28 slots max) - ethernet remote I/O | |
| 500 inputs, 500 outputs - distributed - per network Modbus Plus | |
| 1984 inputs,1984 outputs - remote | |
| Application specific I/O | Accurate time stamping |
| Counter | |
| High-speed interrupt inputs | |
| Serial link | |
| Communication service | Ethernet router |
| Number of optional modules | 6 ( Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections | 1 ( USB) |
| 2 ( AS-Interface) - distributed | |
| 4 ( AS-Interface) - remote | |
| 6 ( Ethernet TCP/IP) - local | |
| 6 ( Modbus Plus) - local | |
| 6 ( Profibus DP) - local | |
| 1 ( Modbus) - RS232/485 Modbus/ASCII | |
| Integrated connection type | 1 Modbus Plus with |
| 1 Ethernet TCP/IP with | |
| 1 Modbus with |
| 1 USB with | |
| Checks | Process control |
| Memory description | Expandable 7168 kB - program with PCMCIA card |
| Expandable 8 MB - file storage with PCMCIA card | |
| Internal RAM 3072 kB | |
| Switch function | Key switch memory port on/off |
| Application structure | 1 cyclic/periodic master task - |
| 1 periodic fast task - | |
| 128 I/O interrupt tasks - | |
| 128 interrupt tasks - | |
| 32 timer interrupt tasks - | |
| 4 auxiliary tasks - | |
| Execution time per instruction | 0.0525...0.075 µs Boolean |
| 0.045...0.06 µs on word | |
| 0.045...0.06 µs on fixed-point arithmetic | |
| 0.4...0.5 µs floating points | |
| Number of instructions per ms | 15 Kinst/ms if 65 % Boolean and 35 % numerical |
| 20 Kinst/ms if 100 % Boolean | |
| System overhead | 1 ms - master task |
| 0.2 ms - fast task | |
| Bus current requirement | 2760 mA |
| Local signalling | 1 LED green Ethernet activity (COM) |
| 1 LED red Ethernet collision |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140CPU65260C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140CPU65260C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140CPU65260C, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 140CPU65260C for credit when ordering from MRO Electric
Additional Information

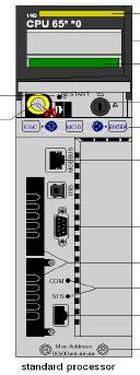

The 140CPU65260C is a Unity Processor Modicon Quantum - 3072 Kb - 266 Mh... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-quantum line come with a 2 year warranty from MRO Electric. We also carry CPU from other manufacturers such as Modicon and ABB.
