140DDO15310

2-year Warranty

Same Day Shipping

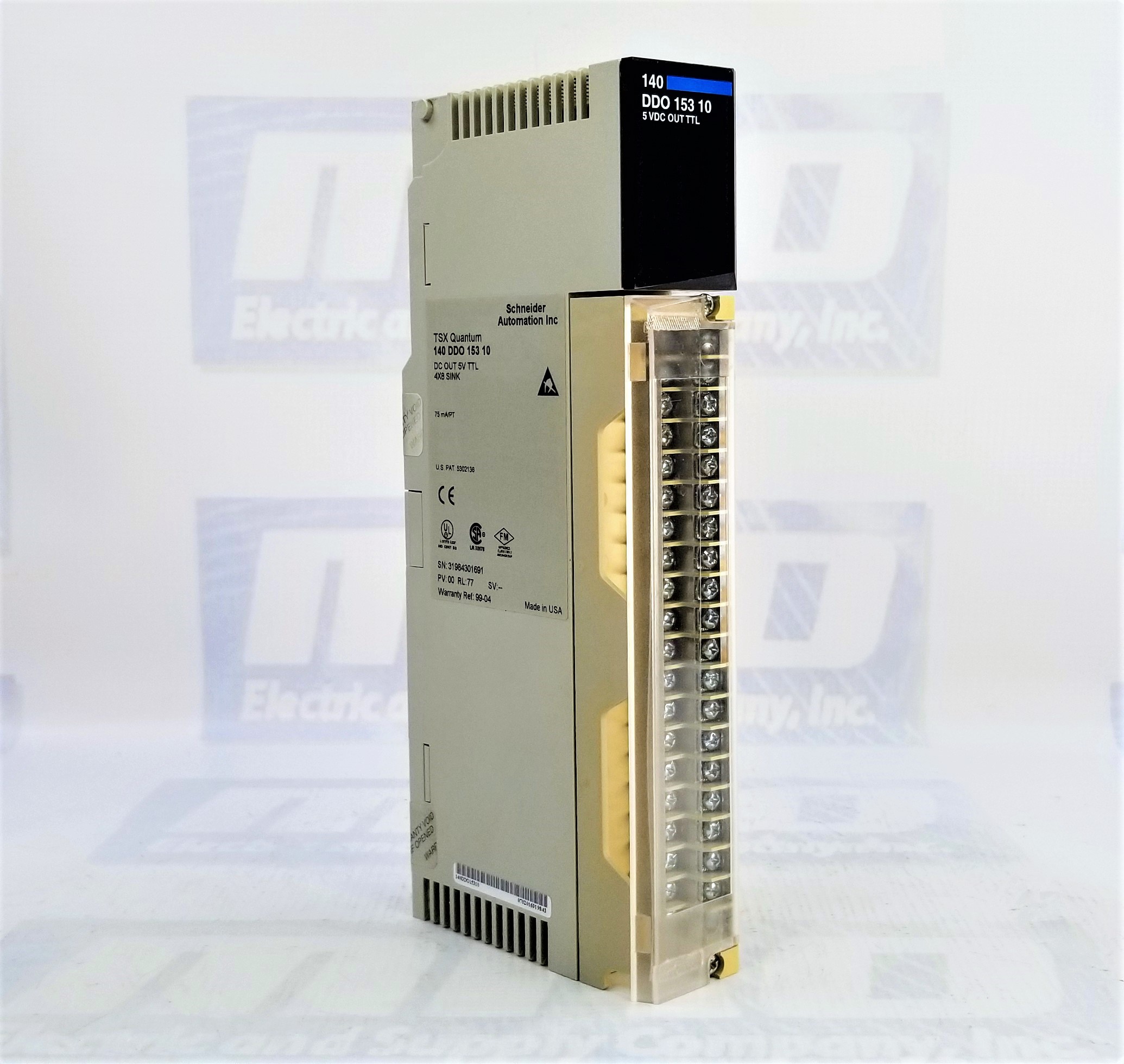

Schneider Electric 140DDO15310

MODICON QUANTUM DISCRETE OUTPUT MODULE 32 O

5/5
1 rating

5 in stock

Ships Today


Free Shipping

2 Year warranty

Part Number140DDO15310
ManufacturerSchneider Electric
TypeI/O Modules
Model #140-DDO-153-10
Warranty2 Year
Bus current requirement350 mA
Product or component typeTTL discrete output module
Discrete output number32
Group of channels4 groups of 8 channels
Discrete output typeTTL
Positive (sink)
Addressing requirement2 output words
Discrete output voltage5 V DC
Voltage state 1 guaranteed<= 0.2 V
[Us] rated supply voltage4...5.5 V DC
Absolute maximum output15 V for 0.0013 s decaying voltage pulse DC
Internal pullup resistor440 Ohm
Maximum load current<= 2.4 A per module
<= 600 mA each group
<= 75 mA each point
Surge current750 A 0.5 ms between each point
Response time<= 250 µs at state 0 to state 1 resistive
<= 250 µs at state 1 to state 0 resistive
Protection typeOutput protection by transient voltage suppression
Internal by fuse
Fault indicationBlown fuse
Loss of field power
Power dissipation4 W
Supply current0.4 A
Isolation between group500 Vrms for 1 minute
MarkingCE
Local signalling1 LED green bus communication is present (Active)
1 LED red external fault detected (F)
32 LEDs green input status
Bus current requirement350 mA
Current consumption2800 mA 5 V DC

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140DDO15310 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140DDO15310 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140DDO15310, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 14 hours and 9 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140DDO15310 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 140DDO15310 Overview

Schneider Electric 140-DDO-153-10 TTL Discrete Output Module

The Schneider Electric 140-DDO-153-10 is a high-performing TTL discrete output module designed to support complex automation systems by offering robust control of multiple outputs within a single compact module. This module is an essential component of Schneider Electric's Modicon Quantum system, providing reliable 5 V DC TTL outputs across 32 channels, organized into four groups of 8. Each group of outputs is fully isolated from the others to prevent interference, and the module is well-suited for applications requiring precise and rapid switching with low-voltage signals. MRO Electric and Supply backs this product with a two-year warranty, ensuring users' quality and peace of mind.

Output Specifications and Configuration

The 140-DDO-153-10 module is designed for TTL (Transistor-Transistor Logic) output, which ensures compatibility with a wide range of low-power digital devices. The module operates at a discrete output voltage of 5 V DC, with each production guaranteed to provide a low voltage state (0) at less than or equal to 0.2 V. This reliable state switching makes the module suitable for applications that require quick, low-power digital signaling. The module's rated supply voltage ranges from 4 to 5.5 V DC, giving it some flexibility within low-voltage systems.

Load Handling and Current Specifications

Each output channel of the 140-DDO-153-10 can handle a maximum load current of 75 mA, with each group capable of handling up to 600 mA and the total module current capped at 2.4 A. This makes the module capable of managing various small—to medium-scale loads across its 32 output points. Additionally, the module is designed to withstand brief surges, with a peak surge current of 750 A for 0.5 ms between each end, providing resilience against sudden load or power spike changes.

Performance and Response Time

The module is engineered for speed, with a response time of less than or equal to 250 microseconds for both on and off states in resistive loads. This allows for rapid switching and minimal lag in response to control signals, making it ideal for applications that require precise timing and high-speed output operations, such as industrial machinery control or automated testing systems. This quick response ensures synchronization within fast-paced processes, enhancing the overall efficiency of the automation system.

Protection and Fault Detection

To ensure safety and longevity, the 140-DDO-153-10 is equipped with transient voltage suppression to protect each output channel, and internal fuses are in place to safeguard against overcurrent. These protective measures help prevent damage to the module and connected devices, providing reliable operation in demanding industrial environments. Additionally, the module features fault detection capabilities, with indicators for blown fuses and loss of field power. This aids maintenance personnel in quickly identifying and addressing issues, minimizing downtime.

Power Requirements and Efficiency

With a bus current requirement of 350 mA and current consumption of 2800 mA at 5 V DC, the 140-DDO-153-10 is optimized for efficiency. Its power dissipation rate is 4 W, balancing high performance with low energy consumption, making it suitable for energy-conscious industrial systems.

Local Signaling and Compliance

The module includes various local indicators to facilitate real-time monitoring. A green LED shows bus communication is active, while a red LED alerts operators to external faults. Additionally, each of the 32 channels has a dedicated green LED to indicate output status. Marked with the CE certification, this module meets international standards, ensuring safe and compliant operation across diverse applications.

FAQs

What voltage levels does the 140-DDO-153-10 module support?

The module operates at a discrete output voltage of 5 V DC and has a rated supply voltage range of 4 to 5.5 V DC. It can also withstand short pulses of up to 15 V for 0.0013 seconds without damage.

How much current can each output point handle?

Each output point can handle up to 75 mA, with each group of 8 points supporting a combined load of up to 600 mA. The total load capacity for the entire module is 2.4 A.

What protective features are included in this module?

The 140-DDO-153-10 includes transient voltage suppression and internal fuses for each group, fault indicators for blown fuses, and loss of field power. These protections enhance module durability and safety in industrial settings.

How fast is the response time for output switching?

The module offers a fast response time of ≤250 microseconds when switching from state 0 to 1 and vice versa, which is particularly beneficial for applications requiring high-speed output operations.

What type of isolation is provided between output groups?

Each output group is isolated from others with 500 Vrms isolation for one minute, reducing interference and ensuring stable operation in electrically noisy environments.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
