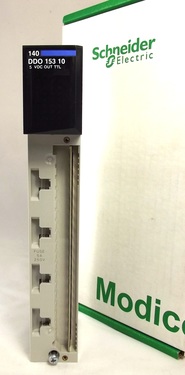

Modicon Quantum Ttl Discrete Output Module - 32 O - Positive Logic - 2 Words

2 Year warranty


Part Number140DDO15310C
ManufacturerSchneider Electric
SeriesModicon Quantum
Model #140DDO15310C
TypeIO Modules
Warranty2 Year
Module formatStandard
Product or component typeTTL discrete output module
Discrete output number32
Group of channels4 groups of 8 channels
Discrete output typeTTL
Positive (sink)
Addressing requirement2 output words
Discrete output voltage5 V DC
Voltage state 1 guaranteed<= 0.2 V
[Us] rated supply voltage4...5.5 V DC
Absolute maximum output15 V for 0.0013 s decaying voltage pulse DC
Internal pullup resistor440 Ohm
Maximum load current<= 2.4 A per module
<= 600 mA each group
<= 75 mA each point
Surge current750 A 0.5 ms between each point
Response time<= 250 µs at state 0 to state 1 resistive
<= 250 µs at state 1 to state 0 resistive
Protection typeInternal by fuse
Output protection by transient voltage suppression
Fault indicationLoss of field power
Blown fuse
Power dissipation4 W
Supply current0.4 A
Isolation between group500 Vrms for 1 minute
Local signalling1 LED green bus communication is present (Active)
1 LED red external fault detected (F)
32 LEDs green input status
Bus current requirement350 mA
Current consumption2800 mA 5 V DC

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140DDO15310C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140DDO15310C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140DDO15310C, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 47 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140DDO15310C for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The 140DDO15310C is a Modicon Quantum Ttl Discrete Output Module - 32 O ... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-quantum line come with a 2 year warranty from MRO Electric. We also carry PLC from other manufacturers such as Modicon and ABB.
