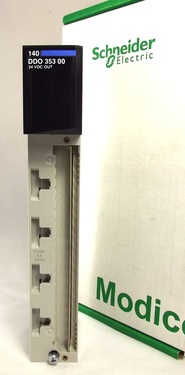

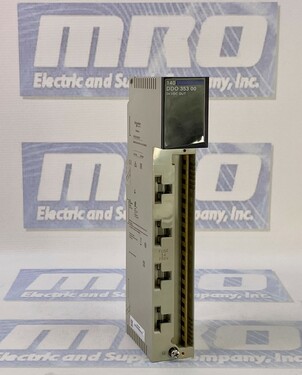

140DDO35300

2-year Warranty

Same Day Shipping

Schneider Electric 140DDO35300

MODICON QUANTUM DISCRETE OUTPUT MODULE - 32 O SOLID STATE
5/5
4 ratings

Select Condition

Refurbished

18 in stock

New

13 in stock

$479.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number140DDO35300
ManufacturerSchneider Electric
TypeI/O Modules
Model #140-DDO-353-00
Warranty2 Year
Module formatStandard
Product or component typeDc discrete output module
Discrete output number32
Group of channels4 groups of 8
Discrete output logicNegative logic (sink)
Addressing requirement2 output words
Discrete output voltage24 V DC
Output voltage limits19.2...30 V
Absolute maximum output56 V for 1.3 s decaying pulse
Voltage drop0.4 V 0.5 A
Maximum load current4 A per group
16 A per module
Surge current<= 5 A for 0.0005 s
Response time<= 1 ms at state 1 to state 0
<= 1 ms at state 0 to state 1
Leakage current0.4 mA 30 V
Load inductanceInductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) 50 Hz
Fault indicationBlown fuse
Loss of field power
Associated fuse rating5 A per group
3 A each point
Isolation between channels and bus1780 Vrms DC for 1 minute
Isolation between group500 Vrms DC for 1 minute
Protection typeInternal output protection by 5 A fuse per group
Power dissipation1.75 W + (0.4 V x total module load current)
MarkingCE
Local signalling32 LEDs green input status
1 LED red external fault detected (F)
1 LED green bus communication is present (Active)
Bus current requirement330 mA
