|Product or component type||Dc discrete output module|
|Discrete output number||32|
|Group of channels||4 groups of 8|
|Discrete output logic||Positive logic (source)|
|Addressing requirement||2 output words|
|Discrete output voltage||24 V DC|
|Output voltage limits||19.2...30 V|
|Absolute maximum output||50 V for 1 s decaying pulse|
|Voltage drop||0.4 V 0.5 A|
|Maximum load current||16 A per module|
|16 A per module|
|4 A per group|
|4 A per group|
|Surge current||<= 2 A|
|<= 2 A|
|Response time||<= 0.1 ms at state 1 to state 0|
|<= 1 ms at state 0 to state 1|
|Leakage current||<= 1 mA 24 V|
|Load inductance||Inductance(H) = 0.5/((current(A))Â² x (switching frequency(Hz)))|
|Inductance(H) = 0.5/((current(A))Â² x (switching frequency(Hz)))|
|Fault indication||Loss of field power|
|Associated fuse rating||3 A each point|
|3 A each point|
|5 A per group|
|5 A per group|
|Isolation between channels and bus||1780 Vrms DC for 1 minute|
|Isolation between group||500 Vrms DC for 1 minute|
|Protection type||Internal output protection by 5 A fuse per group|
|Power dissipation||5 W|
|Local signalling||1 LED green bus communication is present (Active)|
|1 LED red external fault detected (F)|
|32 LEDs green input status|
|Bus current requirement||<= 330 mA|
|<= 330 mA|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140DDO35301C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140DDO35301C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140DDO35301C, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 140DDO35301C for credit when ordering from MRO Electric

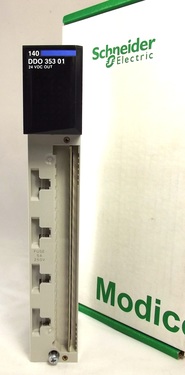

The 140DDO35301C is a Modicon Quantum Discrete Output Module - 32 O - Po... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-quantum line come with a 2 year warranty from MRO Electric. We also carry PLC from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at email@example.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 140DDO35301C, take a look at more from our Robotics line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 140DDO35301C products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
