140DDO35301

2-year Warranty

Same Day Shipping

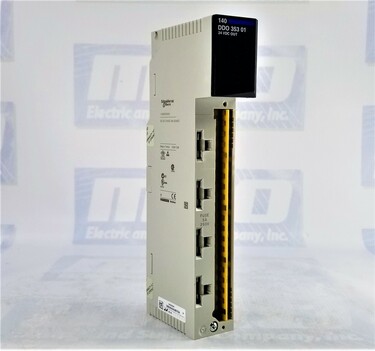

Schneider Electric 140DDO35301

MODICON QUANTUM DISCRETE OUTPUT MODULE 32 O - POSITIVE LOGIC (SOURCE)

5/5
2 ratings

11 in stock

Ships Today


Free Shipping

2 Year warranty

Part Number140DDO35301
ManufacturerSchneider Electric
TypeI/O Modules
Model #140-DDO-353-01
Warranty2 Year
Module formatStandard
Product or component typeDc discrete output module
Discrete output number32
Group of channels4 groups of 8
Discrete output logicPositive logic (source)
Addressing requirement2 output words
Discrete output voltage24 V DC
Output voltage limits19.2...30 V
Absolute maximum output50 V for 1 s decaying pulse
Voltage drop0.4 V 0.5 A
Maximum load current16 A per module
16 A per module
4 A per group
4 A per group
Surge current<= 2 A
<= 2 A
Response time<= 0.1 ms at state 1 to state 0
<= 1 ms at state 0 to state 1
Leakage current<= 1 mA 24 V
Load inductanceInductance(H) = 0.5/((current(A))² x (switching frequency(Hz)))
Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz)))
Fault indicationLoss of field power
Blown fuse
Associated fuse rating3 A each point
3 A each point
5 A per group
5 A per group
Isolation between channels and bus1780 Vrms DC for 1 minute
Isolation between group500 Vrms DC for 1 minute
Protection typeInternal output protection by 5 A fuse per group
Power dissipation5 W
MarkingCE
Local signalling1 LED green bus communication is present (Active)
1 LED red external fault detected (F)
32 LEDs green input status
Bus current requirement<= 330 mA
<= 330 mA

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140DDO35301 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140DDO35301 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140DDO35301, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 2 hours and 38 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140DDO35301 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 140DDO35301 Overview

Schneider Electric 140-DDO-353-01 DC Discrete Output Module

The Schneider Electric 140-DDO-353-01 DC Discrete Output Module is a high-capacity output solution within Schneider's Modicon Quantum automation system. Designed for demanding applications, this module accommodates 32 discrete outputs organized into four groups of 8, each supporting positive logic (source) operations. This setup is ideal for applications that require multiple output channels, robust electrical isolation, and reliable monitoring in industrial automation environments. The module's standard format and a two-year MRO Electric and Supply warranty ensure quality, longevity, and optimal performance in various automated control systems.

Output Specifications and Configuration

The 140-DDO-353-01 module is engineered to handle a 24 V DC discrete output voltage, with a specified range between 19.2 and 30 V DC. This wide operating range makes it adaptable to various low-voltage applications. Each output channel is designed with positive logic (source) and requires two output words for addressing. The module's maximum absolute output can reach 50 V, although only for a brief decaying pulse of 1 second, making it a durable choice for applications where voltage fluctuations might occur momentarily.

Current and Load Management

This module has a robust load capacity. Each module is rated for a total maximum current of 16 A, distributed across four groups. Each group can handle up to 4 A, providing flexibility in current distribution and load management. The module also offers significant surge protection, with a surge current rating of up to 2 A. A voltage drop of 0.4 V at 0.5 A ensures efficient energy transfer, minimizing power loss during operation.

Response Time and Leakage Specifications

Designed for speed, the 140-DDO-353-01 provides rapid response times of less than or equal to 0.1 ms when switching from state 1 to 0 and less than or equal to 1 ms when switching from state 0 to 1. This high responsiveness is critical in environments where real-time control and quick responses are essential. Furthermore, the module maintains a leakage current of no more than one mA at 24 V, which ensures efficient power management and minimal unintended current flow in deactivated states.

Protective Features and Isolation

To ensure safety and reduce the risk of overcurrent damage, each point on the module is protected with a 3 A fuse, while each group is safeguarded with a 5 A fuse. The module also includes robust isolation features, with an isolation rating of 1780 Vrms DC between channels and the bus and 500 Vrms DC between groups for one minute. This high isolation level prevents interference between channels and enhances safety for operators and connected equipment. Additional protection is provided through internal output protection and fault indication for field power loss or blown fuses.

Power Requirements and Local Signaling

Operating efficiently with a bus current requirement of 330 mA, the module's power dissipation is capped at 5 W. This efficient energy profile makes it well-suited for energy-conscious installations while maintaining powerful functionality. Local signaling is facilitated through multiple LEDs: a green LED indicates active bus communication, a red LED alerts to external faults, and each of the 32 channels has a green LED to signify output status. The module carries a CE marking, certifying compliance with international standards and making it a reliable component for various global applications.

FAQs

What is the purpose of the isolation in the 140-DDO-353-01 module?

The module features isolation of 1780 Vrms DC between channels and the bus and 500 Vrms DC between groups. This isolation protects against electrical interference between channels, enhancing the module's safety and reliability in high-voltage or noisy environments.

How much current can each output point handle?

Each point on the module is rated for up to 3 A with a maximum current of 16 A for the entire module. This is distributed as 4 A per group of 8 output channels, providing flexibility for handling various loads.

What are the response times for the 140-DDO-353-01 module?

The module is designed for rapid switching, with a response time of less than or equal to 0.1 ms from state 1 to state 0 and less than or equal to 1 ms from state 0 to state 1. This quick response enables efficient control in high-speed applications.

What protective measures does the module include?

The 140-DDO-353-01 module includes:

  • Transient voltage suppression.
  • Internal 3 A fuses for each output point.
  • 5 A fuses for each group.

It also provides fault indication for field power loss and blown fuses, which helps to quickly identify and resolve issues.

What is the acceptable range for the discrete output voltage?

The module is rated for a discrete output voltage of 24 V DC, with acceptable limits ranging from 19.2 to 30 V DC. It can handle a brief surge up to 50 V for 1 second, accommodating transient conditions without compromising performance.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
