140DRA84000

Schneider Electric 140DRA84000

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: Discrete Output Module - 16 O

PRODUCT TYPE INFO: Modicon Quantum

30 in stock


Free Shipping

2 Year warranty

Part Number140DRA84000
ManufacturerSchneider Electric
TypeI/O Modules
Model #140-DRA-840-00
Warranty2 Year
Module formatStandard
Product or component typeRelay discrete output module
Discrete output number16
Contacts type and composition1 NO
Contact formForm A
Discrete output voltage5...30 V DC
30...150 V DC
20...250 V AC
Addressing requirement1 output word
Minimum load>= 50 mA 5...30 V DC
>= 50 mA 20...250 V AC
Maximum load current300 mA 30...50 V DC resistive
2 A 250/30 V AC/DC resistive at 60 °C
1 A 250/30 V AC/DC tungsten
1 A 250/30 V AC/DC 1/8 hp cos phi = 0.4
Surge current<= 10 A for 10 ms capacitive
Switching capacity in VA500 VA resistive
Response time on input opening<= 20 ms at state 1 to state 0
<= 10 ms at state 0 to state 1
Mechanical durability10000000 cycles
Electrical durability50000 cycles 500 mA 30...150 V DC resistive
200000 cycles 2 A 250 V AC resistive
100000 cycles 300 mA 30...150 V DC resistive
100000 cycles 30...150 V DC interposing relay
100000 cycles 2 A 30 V DC resistive
100000 cycles 100 mA 30...150 V DC L/R = 10 ms
Output overvoltage protectionInternal by varistor, 275 V
Isolation between channels1780 Vrms AC for 1 minute
Isolation between channels and bus2500 V DC for 1 minute
1780 Vrms AC for 1 minute
Power dissipation5.5 W + (0.5 x the number of points on)
MarkingCE
Local signalling16 LEDs green input status
1 LED red external fault detected (F)
1 LED green bus communication is present (Active)
Bus current requirement1100 mA

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140DRA84000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140DRA84000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140DRA84000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 17 hours and 25 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140DRA84000 for credit when ordering from MRO Electric

What is the country of origin for the 140DRA84000, as well as the HTS code?

  • The product is manufactured in France, and the HTS code is 8538909190.
MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 140DRA84000 Overview

The Modicon 140 DRA 84 000 16-point output module is manufactured by Schneider Electric for use on the Modicon Quantum platform. The 140DRA84000 is a relay output 16 x 1 normally open module that consists of a standard module format, weighs less than one pound, and has a bus current requirement of 1,110 mA. It also has a 10 A, 10 ms surge capacity and the switching capacity in VA is 500 VA resistant.  These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.

External power is not needed for the 140 DRA 84 000 relay modules. Power dissipation is 5.5 W + 0.5 W x input points ON. The Bus Current required for the 140 DRA 84 000 is 1100 mA. I/O map: 1 output word. The AC operating voltage for the Modicon relay module is 20 ... 250 VAC and the DC operating voltage is 5 ... 30 VDC: 30 ... 150 VDC with reduced load Current.

Features of the 140 DRA 84 000

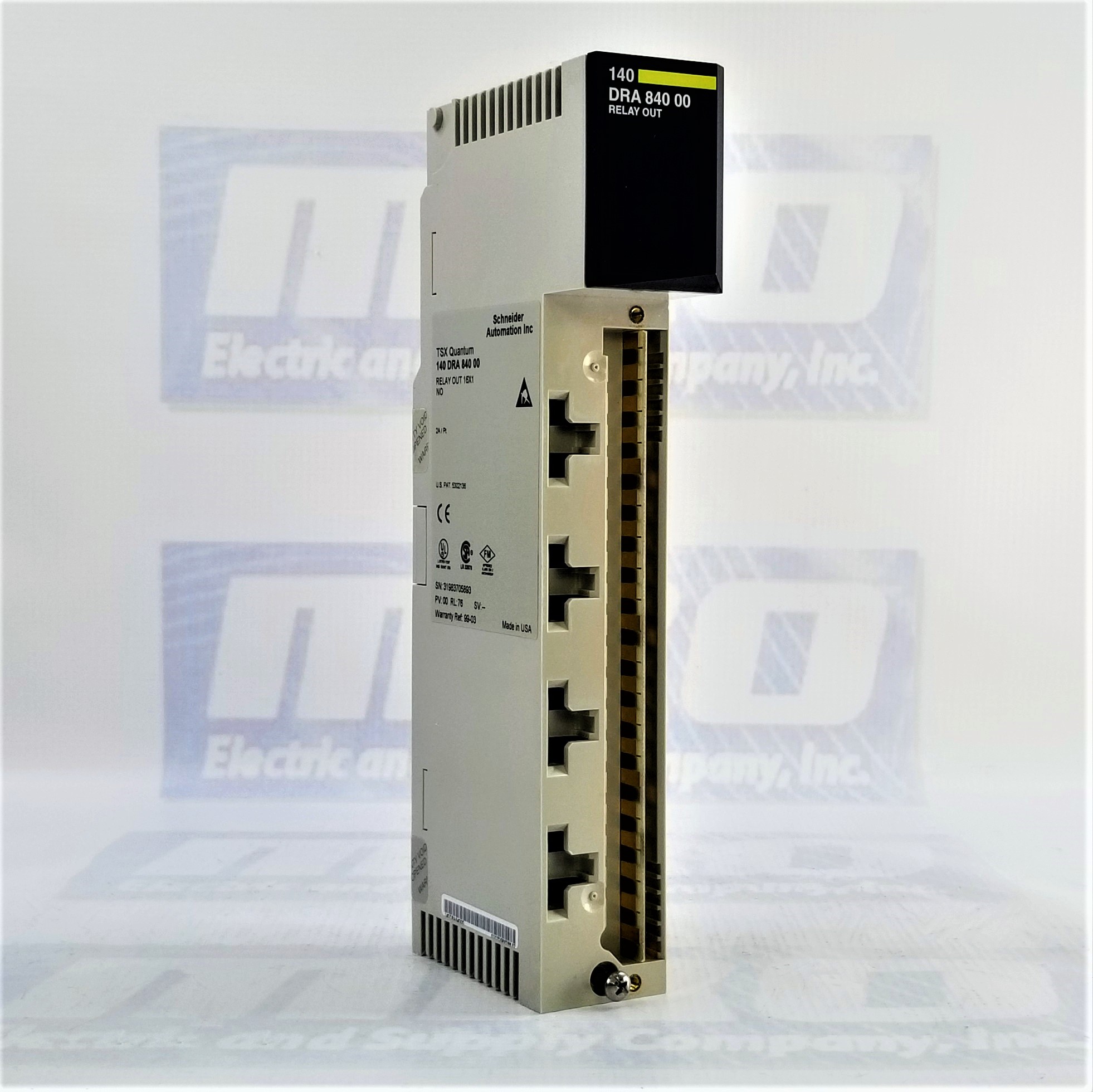

The Modicon 140 DRA 84 000 features an LED that displays green when in operation. The LED indicates green for channels one through sixteen when the channel is active. On the front of the 140 DRA 84 000 above the LED is the area where you can identify the model number, the model description, and the color code of the model. Beneath the LED on the front panel of the 140 DRA 84 000 relay module is the fuse cutout area. Directly below the fuse cutout area is the field wiring terminal strip. The wiring for relay common one through sixteen is located down the left front of the module and the output one through sixteen is located down the right front of the Modicon 140 DRA 84 000 modules.

The max load current for each point is 2 Amps per point maximum at 250 VAC, 30 VDC at 60 deg C ambient. 1 A Tungsten lamp load 1 A @ a power factor of 0.4 1/8 hp @ 125 / 250 VAC. The max load current for each point at 30 ... 150 VDC is 300 mA (restive load) 100 mA (L/R = 10 msec). The max load current (surge current) is 10 A capacitive load @ t = 10 ms.

When working with potentially harmful, hazardous, or toxic equipment, personal and environmental safety are of the utmost importance. Taking this into account, the 140 DRA 84 000, along with other modules from this line, is available in a conformal coated version, 140 DRA 84 000C. This relay discrete output module also meets the extensive requirement standards of a wide range of agencies, including the following:

  • UL 508
  • CSA 22.2-142
  • C-UL
  • Factory Mutual Class I, Division II
  • CE
  • CSA Class I, Division II

The Schneider Electric 140 DRA 84 000 module has C-Tick, GOST, and ABS certifications.

Advantages

This relay discrete output module from the Modicon Quantum series by Schneider Electric consistently ranks as one of the most environmentally friendly, safe, and reliable modules in the industry. As far as 16-point output modules go, this one provides high-performance and is one of Schneider Electric’s Premium Green products, which undergo in-depth evaluations and are made with people and the environment in mind. These Green Premium products take into account the full life span of a discrete output module to ensure maximum productivity, safety, and compliance.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 140DRA84000, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 140DRA84000 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
