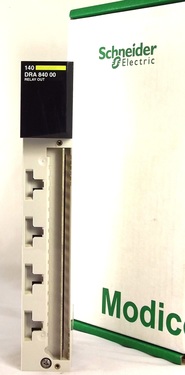

Modicon Quantum Relay Discrete Output Module - 16 O - 1 Word

Free Shipping
2 Year warranty


Part Number140DRA84000C
ManufacturerSchneider Electric
SeriesModicon Quantum
Model #140DRA84000C
TypeIO Modules
Warranty2 Year
Module formatStandard
Product or component typeRelay discrete output module
Discrete output number16
Contacts type and composition1 NO
Contact formForm A
Discrete output voltage20...250 V AC
30...150 V DC
5...30 V DC
Addressing requirement1 output word
Minimum load>= 50 mA 20...250 V AC
>= 50 mA 5...30 V DC
Maximum load current1 A 250/30 V AC/DC 1/8 hp cos phi = 0.4
1 A 250/30 V AC/DC tungsten
2 A 250/30 V AC/DC resistive at 60 °C
300 mA 30...50 V DC resistive
Surge current<= 10 A for 10 ms capacitive
Switching capacity in VA500 VA resistive
Response time on input opening<= 10 ms at state 0 to state 1
<= 20 ms at state 1 to state 0
Mechanical durability10000000 cycles
Electrical durability100000 cycles 100 mA 30...150 V DC L/R = 10 ms
100000 cycles 2 A 30 V DC resistive
100000 cycles 30...150 V DC interposing relay
100000 cycles 300 mA 30...150 V DC resistive
200000 cycles 2 A 250 V AC resistive
50000 cycles 500 mA 30...150 V DC resistive
Output overvoltage protectionInternal by varistor, 275 V
Isolation between channels1780 Vrms AC for 1 minute
Isolation between channels and bus1780 Vrms AC for 1 minute
2500 V DC for 1 minute
Power dissipation5.5 W + (0.5 x the number of points on)
Local signalling1 LED green bus communication is present (Active)
1 LED red external fault detected (F)
16 LEDs green input status
Bus current requirement1100 mA

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140DRA84000C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140DRA84000C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140DRA84000C, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 10 hours and 1 minute.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140DRA84000C for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The 140DRA84000C is a Modicon Quantum Relay Discrete Output Module - 16 ... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-quantum line come with a 2 year warranty from MRO Electric. We also carry PLC from other manufacturers such as Modicon and ABB.
